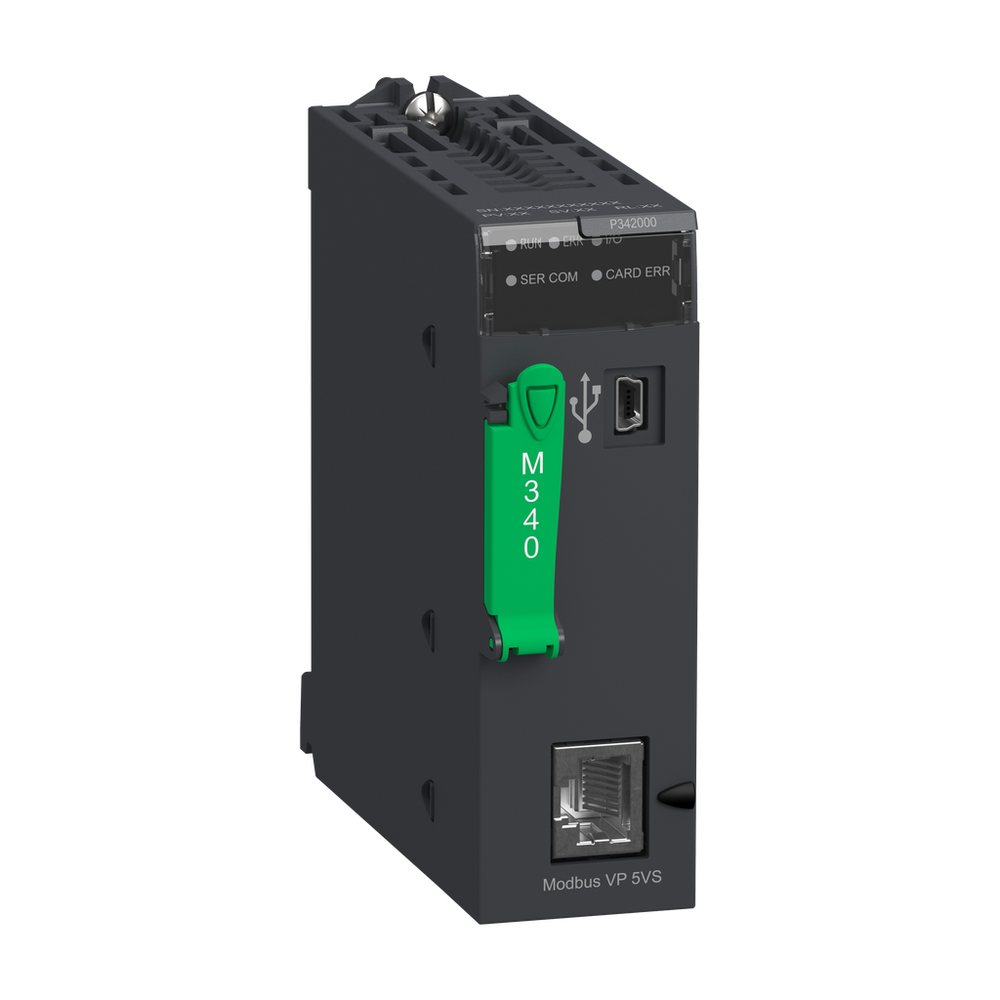

Schneider Electric BMXP342000
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 1 rack configuration, 36 application specific channels and 11 slots. It is a processor module with a current consumption of 72mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication processor module interfaces are 2 Ethernet modules and 4 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 1024 multi-rack configuration discrete I/O processor capacity and 256 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports 128kb data, 2048kb, 1792kb program internal RAM memory capacity. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.processor, Modicon M340, max 1024 discrete, 256 analog IO, Modbus
Schneider Electric BMXP342000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Application Structure
- 1 cyclic/periodic master task || 1 periodic fast task || no auxiliary task || 32 event tasks
- Bus Length
- 0-10 m serial link non isolated character mode segment || 0-10 m serial link non isolated Modbus segment || 0-1000 m serial link isolated character mode segment || 0-1000 m serial link isolated Modbus segment || 0-15 m character mode point-to-point || 0-15 m Modbus point-to-point
- Communication Module Processor Capacity
- 2 Ethernet communication module || 4 AS-Interface module
- Control Channels
- programmable loops
- Control Parameter
- one CRC on each frame (RTU) Modbus || one LRC on each frame (ASCII) character mode || one LRC on each frame (ASCII) Modbus
- Current Consumption
- 72 mA 24 V DC
- Default Size Of Object Areas
- 128 %KWi constant words located internal data || 256 %Mi located internal bits || 512 %MWi internal words located internal data
- Execution Time Per Instruction
- 0.18 µs Boolean || 0.26 µs double-length words || 0.38 µs single-length words || 1.74 µs floating points
- Integrated Connection Type
- non isolated serial link RJ45 character mode asynchronous in baseband, RS232C 2 twisted shielded pairs 0.3...19.2 kbit/s full duplex || non isolated serial link RJ45 character mode asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex || non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS232C 1 twisted shielded pair 0.3...19.2 kbit/s half duplex || non isolated serial link RJ45, master/slave Modbus, RTU/ASCII asynchronous in baseband, RS485 1 twisted shielded pair 0.3...19.2 kbit/s half duplex || USB port 12 Mbit/s
- Marking
- CE
- Maximum Size Of Object Areas
- 128 kB unlocated internal data || 16250 %Mi located internal bits || 32464 %MWi internal words located internal data || 32760 %KWi constant words located internal data
- Maximum Tap Links Length
- <15 m serial link non isolated character mode segment || <15 m serial link non isolated Modbus segment || <40 m serial link isolated character mode segment || <40 m serial link isolated Modbus segment
- Memory Description
- internal RAM 4096 kB || internal RAM 256 kB data || internal RAM 3584 kB program constants and symbols || supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data
- Net Weight
- 0.2 kg
- Number Of Addresses
- 0-248 character mode || 0-248 Modbus
- Number Of Devices
- 2 point-to-point character mode || 2 point-to-point Modbus
- Number Of Devices Per Segment
- 0-32 character mode) || 0-32 Modbus)
- Number Of Instructions Per Ms
- 4.2 Kinst/ms 65 % Boolean + 35 % fixed arithmetic || 5.4 Kinst/ms 100 % Boolean
- Requests
- 1 K data bytes per request character mode || 252 data bytes per RTU request Modbus || 504 data bytes per ASCII request Modbus
- Status Led
- 1 LED (Green) processor running (RUN) || 1 LED (Red) I/O module fault (I/O) || 1 LED (Red) memory card fault (CARD ERR) || 1 LED (Red) processor or system fault (ERR) || 1 LED (Yellow) activity on Modbus (SER COM)
- Supply
- internal power supply via rack
- System Overhead
- 0.2 ms fast task || 1.05 ms master task
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Environmental Characteristic
- hazardous location class I division 2
- Ip Degree Of Protection
- IP20
- Product Certifications
- CE || UL || CSA || RCM || EAC || Merchant Navy
- Protective Treatment
- TC
- Relative Humidity
- 10-95 % without condensation
- Standards
- EN 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Analogue I/O Processor Capacity
- 256 I/O multi-rack configuration || 66 I/O single-rack configuration
- Discrete I/O Processor Capacity
- 1024 I/O single-rack configuration
- Monitoring
- diagnostic counters Modbus || event counters Modbus
- Number Of Application Specific Channel
- 36
- Number Of Racks
- 1
- Number Of Slots
- 11
- Product Or Component Type
- processor module
- Range Of Product
- Modicon M340 automation platform
