Description

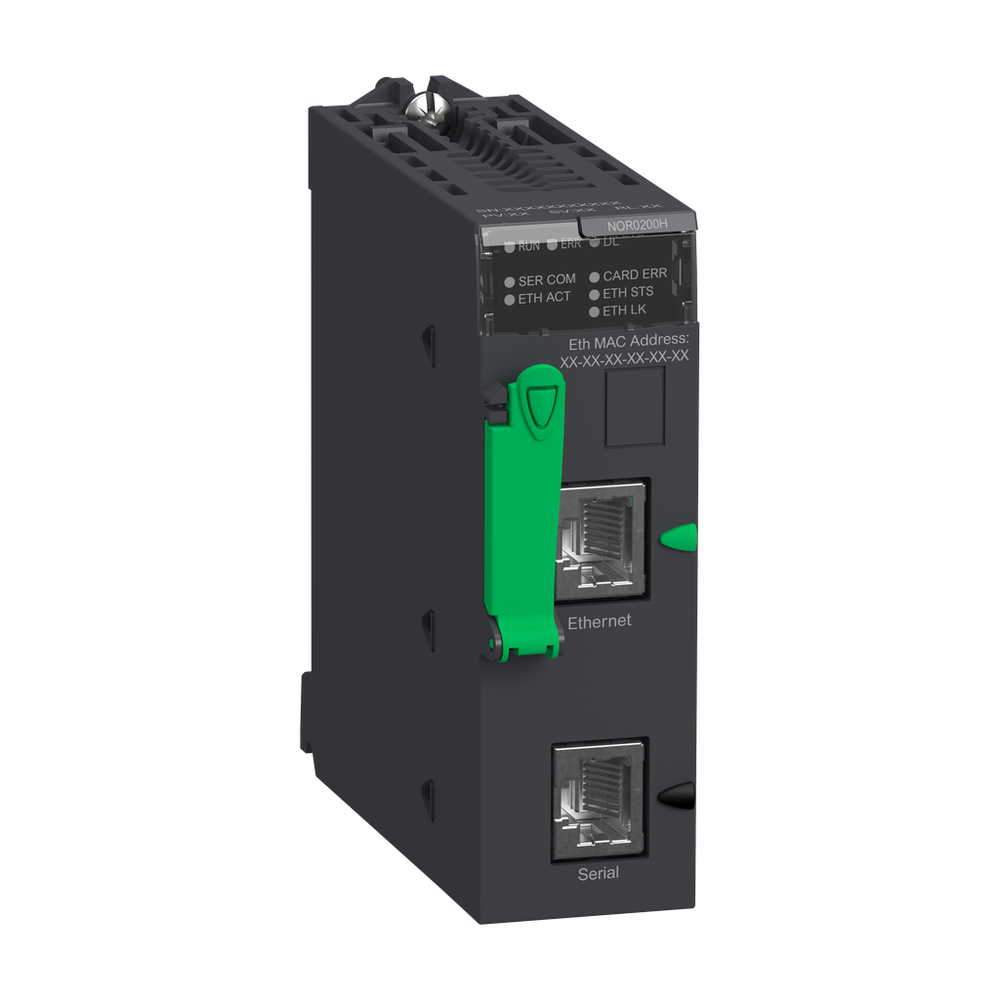

This product is part of Modicon M340 range, a mid-range PAC for industrial process and infrastructure control. This communication module enables M580 and M340 platforms to use RTU protocol exchange with RTU stations. It is an RTU module with a current consumption of 95mA at 24V DC, work with internal power supply. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with Ethernet RJ45 10/100Mbps and serial RS232/485 RJ45 300/38400bps 1 twisted pair transparent ready class C30 for integrated connections. It is an IP20 rated product. It weighs 0.2kg. It is suitable for standard and severe environment applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is supplied with flash SD memory card (BMXRWS128MWF) 128000kB. It occupies one slot on the rack. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Compact-shaped, Modicon M340 offers flexibility and integrated functions in a small box.communication module, Modicon M340, IEC 60870-5-101/104, DNP3, for severe environments
Schneider Electric BMXNOR0200H is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Service
- bandwidth management || Modbus TCP messaging || DNP3/DNP3 IP protocol || IEC 60870-5 -101/-104 protocol || time stamped events management || external modem management (serial, PSTN, GSM, GPRS/3G) || data logging in CSV files || Email/SMS notifications || web server, rack viewer, data editor || BootP, DHCP, FDR client || SMTP server, FTP client/server, NTP client, SNMP agent, || automatic events backup on power loss || multi-protocols support in a single module (master and slave) || transparent events routing from remote slaves to SCADA
- Current Consumption
- 95 mA 24 V DC
- Local Signalling
- for activity on Ethernet network (ETH ACT) 1 LED (green) || for processor running (RUN) 1 LED (green) || for status of Ethernet network (ETH STS) 1 LED (green) || for memory card fault (CARD ERR) 1 LED (red) || for processor or system fault (ERR) 1 LED (red) || for download in progress (DL) 1 LED (red) || for serial communication (SER COM) 1 LED (yellow) || for data rate (ETH LINK) 1 LED (green)
- Memory Description
- supplied Flash SD memory card (BMXRWS128MWF) 128000 kB
- Memory Usage
- activating the standard web server || user web pages storage || data logging CSV files storage
- Module Format
- standard
- Net Weight
- 0.2 kg
- Port Ethernet
- 10BASE-T/100BASE-TX
- Supply
- internal power supply via rack
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive
- Environmental Characteristic
- gas resistant class Gx ISA S71.04 || gas resistant class 3C4 IEC 60721-3-3 || dust resistant class 3S4 IEC 60721-3-3 || sand resistant class 3S4 IEC 60721-3-3 || salt resistant level 2 IEC 68252 || mold growth resistant class 3B2 IEC 60721-3-3 || fungal spore resistant class 3B2 IEC 60721-3-3 || hazardous location class I division 2
- Ip Degree Of Protection
- IP20
- Product Certifications
- CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22 || UKCA
- Relative Humidity
- 10-95 % without condensation
- Standards
- EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G || EN/IEC 60079-0
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Integrated Connection Type
- Ethernet RJ45 10/100 Mbit/s 1 twisted pair transparent ready class C30 || serial RS232/485 RJ45 300/38400 bit/s 1 twisted pair transparent ready class C30
- Product Or Component Type
- communication module
- Protective Treatment
- conformal coating
- Range Of Product
- Modicon M340
