Description

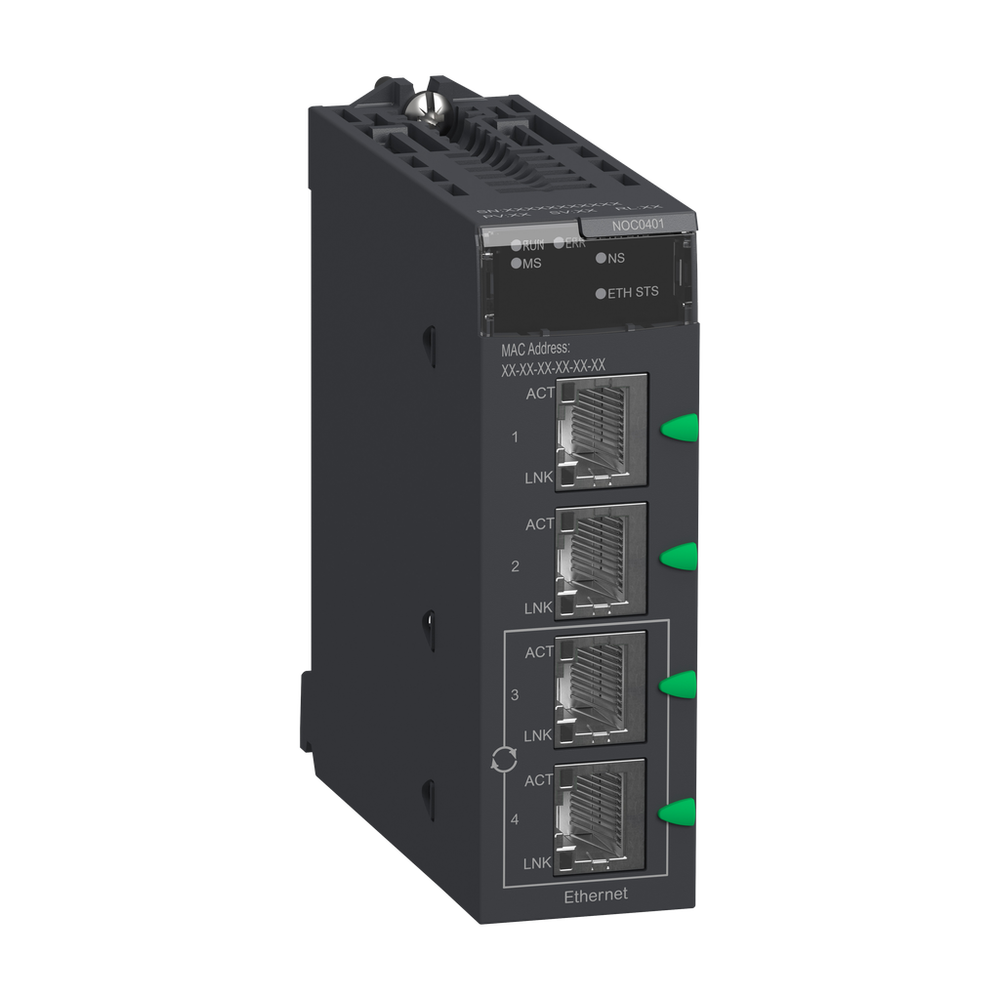

This Ethernet TCP/IP network module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). This network module has 4 x RJ45 10/100Mbps connections. It is a module with a current consumption of 555mA at 3.3V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication services are bandwidth management, data editor (via PC terminal), FDR server, rack viewer, SNMP network administrator, Modbus TCP I/O scanner and messaging, Ethernet/IP I/O scanner and messaging, embedded 4-port switch etc. It is an IP20 rated product. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE, ODVA, UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with Modicon M340 Programmable Logic Controllers (PLC), if equipped with a standard BMXP341000 processor or BMXP3420102, BMXP3420302, BMXP3420102CL, BMXP3420302CL Performance processor. It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.network module, Modicon M340, EtherNet/IP and Modbus/TCP, 4 x RJ45
Schneider Electric BMXNOC0401 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Service
- bandwidth management || Data Editor (via PC terminal) || FDR server || Rack Viewer || SNMP network administrator || Modbus TCP I/O Scanner and Messaging || Ethernet/IP I/O Scanner and Messaging || embedded 4-port switch || RSTP support || port mirroring
- Control Type
- processor or system fault (ERR)
- Current Consumption
- 555 mA 3.3 V DC
- Local Signalling
- for processor running (RUN) 1 LED (green) || for processor or system fault (ERR) 1 LED (red) || for status of Ethernet network (ETH STS) 1 LED (amber) || for MS (Module Status) 1 LED (green/red) || for NS (Network Status) 1 LED (green/red)
- Marking
- CE
- Memory Usage
- application saving || activating the standard web server
- Module Format
- standard
- Net Weight
- 0.2 kg
- Port Ethernet
- 10BASE-T/100BASE-TX
- Supply
- internal power supply via rack
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive
- Environmental Characteristic
- hazardous location class I division 2
- Ip Degree Of Protection
- IP20
- Product Certifications
- CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22
- Relative Humidity
- 10-95 % without condensation
- Standards
- EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G || EN/IEC 60079-0
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Concept
- Transparent Ready
- Integrated Connection Type
- Ethernet RJ45 10/100 Mbit/s 4 twisted pairs transparent ready class B30
- Product Or Component Type
- Ethernet TCP/IP network module
- Protective Treatment
- TC
- Range Of Product
- Modicon M340 automation platform
