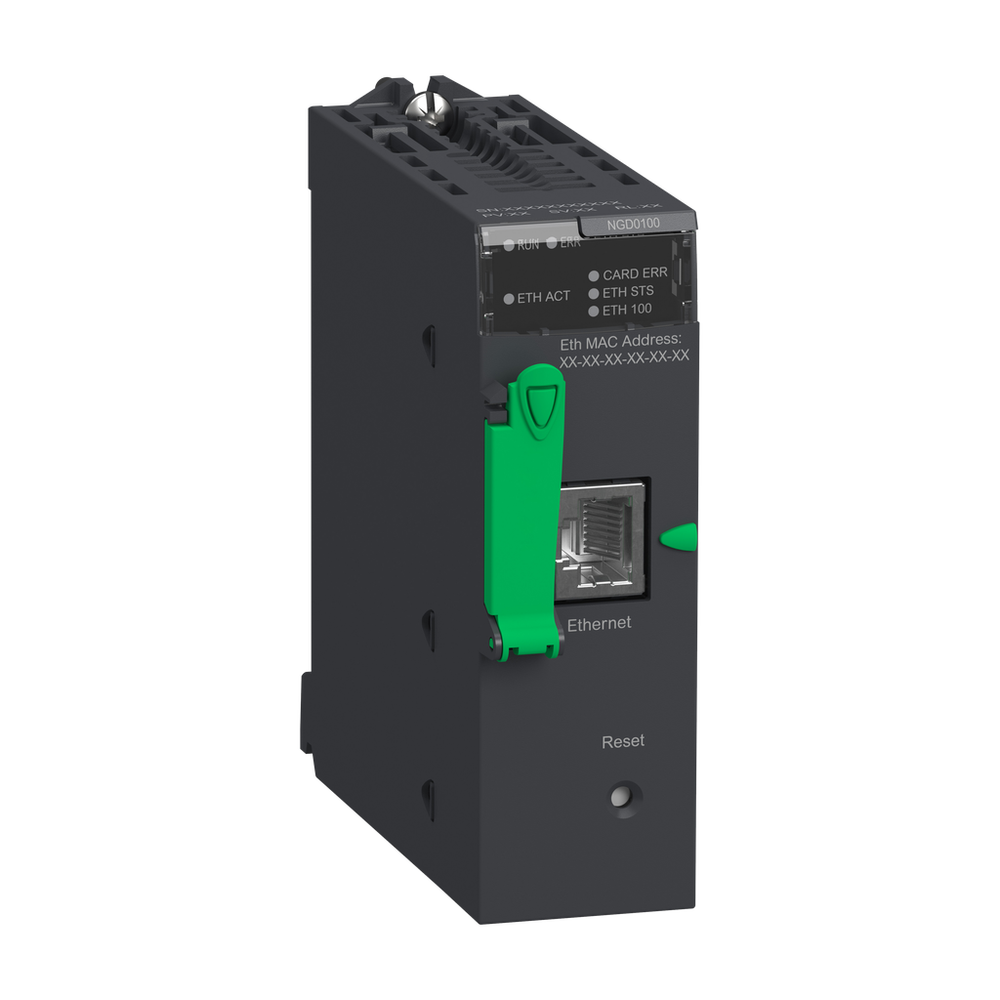

Schneider Electric BMXNGD0100
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This Ethernet TCP/IP network module is dedicated for global data service. It is a network module with a current consumption of 90mA at 24V DC. This product is robust, high quality and based on the latest innovative technology. It has reset push-button cold control. Communication services are global data, Modbus TCP messaging and security. It is an IP20 rated product. It weighs 0.2kg. It is suitable for medium to large process applications. This product is certified by CE and UL. It meets UL 508, EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. It is only compatible with Ethernet racks. It is supplied with flash memory card (BMXRWSC016M). It occupies one slot on the rack. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).communication module, Modicon M580, global data service
Schneider Electric BMXNGD0100 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Service
- Global Data || Modbus TCP messaging || security
- Control Type
- RESET push-button cold restart
- Current Consumption
- 90 mA 24 V DC
- Local Signalling
- for activity on Ethernet network (ETH ACT) 1 LED (green) || for processor running (RUN) 1 LED (green) || for status of Ethernet network (ETH STS) 1 LED (green) || for data rate (ETH 100) 1 LED (red) || for memory card fault (CARD ERR) 1 LED (red) || for processor or system fault (ERR) 1 LED (red)
- Marking
- CE
- Memory Description
- supplied Flash memory card (BMXRWSC016M)
- Module Format
- standard
- Net Weight
- 0.2 kg
- Port Ethernet
- 10BASE-T/100BASE-TX
- Supply
- internal power supply via rack
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Ip Degree Of Protection
- IP20
- Relative Humidity
- 10-95 % without condensation
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Integrated Connection Type
- Ethernet RJ45 10/100 Mbit/s 1 twisted pair
- Product Or Component Type
- Ethernet TCP/IP network module
- Protective Treatment
- TC
- Range Of Product
- Modicon M580
