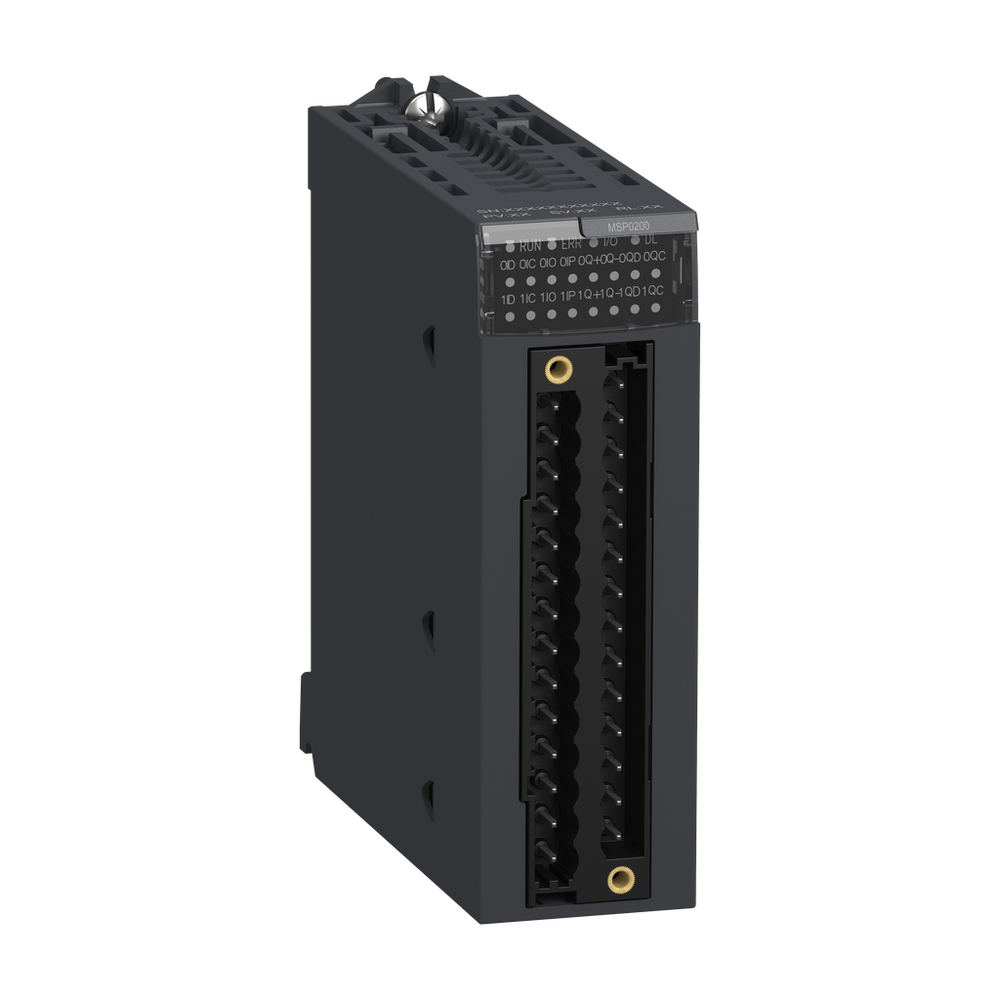

Schneider Electric BMXMSP0200
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This PTO module has 2 channels, 4 inputs with sink (positive) discrete logic. It is a PTO module with an input/output voltage 24V DC, an output current of 50mA and a maximum current consumption of 200mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with two 28-way connectors for electrical connection. There is no insulation between channels. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This output compatible with signal converter (USIC), RS422, 7mA input and source input, 5V to 24V. Input compatible with 2-wire/3-wire proximity sensor 19.2V to 30V conforming to IEC 947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).PTO module, Modicon X80, 2 channels, 4 I, 24V DC, 4.3mA, 2 connectors, 28 pins
Schneider Electric BMXMSP0200 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Current Consumption
- 35 mA 24 V DC preactuator || 150 mA 3.3 V DC typical || 200 mA 3.3 V DC maximum
- Current Per Channel
- 0.4 A
- Current State 0 Guaranteed
- <= 1.5 mA
- Current State 1 Guaranteed
- >= 2 mA
- Discrete Output Current
- 50 mA
- Electrical Connection
- 2 connectors 28 pins
- Input Current
- 4.3 mA
- Input Voltage
- 24 V DC
- Insulation Between Channels
- no insulated
- Insulation Resistance
- > 10 MOhm
- Insul Btwn Prim And Second
- 1500 Vrms
- Load Impedance Ohmic
- 15000 Ohm
- Local Signalling
- for module operating (RUN) 1 LED (green) || for external fault (I/O) 1 LED (red) || for internal fault, module failure (ERR) 1 LED (red) || for download (DL) 1 LED (green) || for channel status (CH00) 8 LEDs (green) || for channel status (CH01) 8 LEDs (green)
- Maximum Leakage Current
- 0.05 mA at state 0
- Module Format
- standard
- Number Of Outputs
- 1 pulse output || 2 auxiliary output
- Operating Threshold
- > 12 V no error supply voltage || > 8 V error supply voltage
- Output Overload Protection
- by current limiter and electronic circuit breaker
- Output Short-Circuit Protection
- by current limiter and electronic circuit breaker
- Output Voltage
- 24 V DC
- Output Voltage Limits
- 19...30 V
- Preactuator Voltage Detection Threshold
- < 8 V error preactuator voltage auxiliary output || < 8 V no error preactuator voltage auxiliary output || > 14 V error preactuator voltage pulse output || > 14 V no error preactuator voltage pulse output
- Product Certifications
- CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22
- Response Time
- < 200 µs for position completed input and drive ready input || < 60 µs for origin input and proximity input
- Response Time On Output
- 1.2...1.5 ms on appearance || 1.2...1.5 ms on disappearance
- Reverse Polarity Protection
- by reverse mounting diode on output || integrated on input
- [Ures] Residual Voltage
- 0.15 V at state 1
- Voltage State 0 Guaranteed
- 5 V
- Voltage State 1 Guaranteed
- >= 11 V
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Derating Factor
- without
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive
- Environmental Characteristic
- hazardous location class I division 2
- Standards
- EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G || EN/IEC 60079-0
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Discrete Input Type
- current sink yes origin input IEC 61131-2 type 3 || current sink yes proximity input and limit switch input IEC 61131-2 type 3 || current sink or source counter in position input IEC 61131-2 type 3 || current sink or source drive ready, emergency input IEC 61131-2 type 3
- Input Compatibility
- 2-wire/3-wire proximity sensor 19.2-30 V IEC 947-5-2
- Number Of Channels
- 2
- Number Of Inputs
- 4
- Output Compatibility
- signal converter (USIC) || RS422, 7 mA input || source input, 5 V to 24 V
- Output Frequency
- 200 kHz <0.5 m with USIC and VW3M8210R05 || 100 kHz <5 m with the normal source input circuit || 200 kHz <10 m with the RS422 compatible circuits
- Product Or Component Type
- PTO module
- Range Of Product
- Modicon X80
