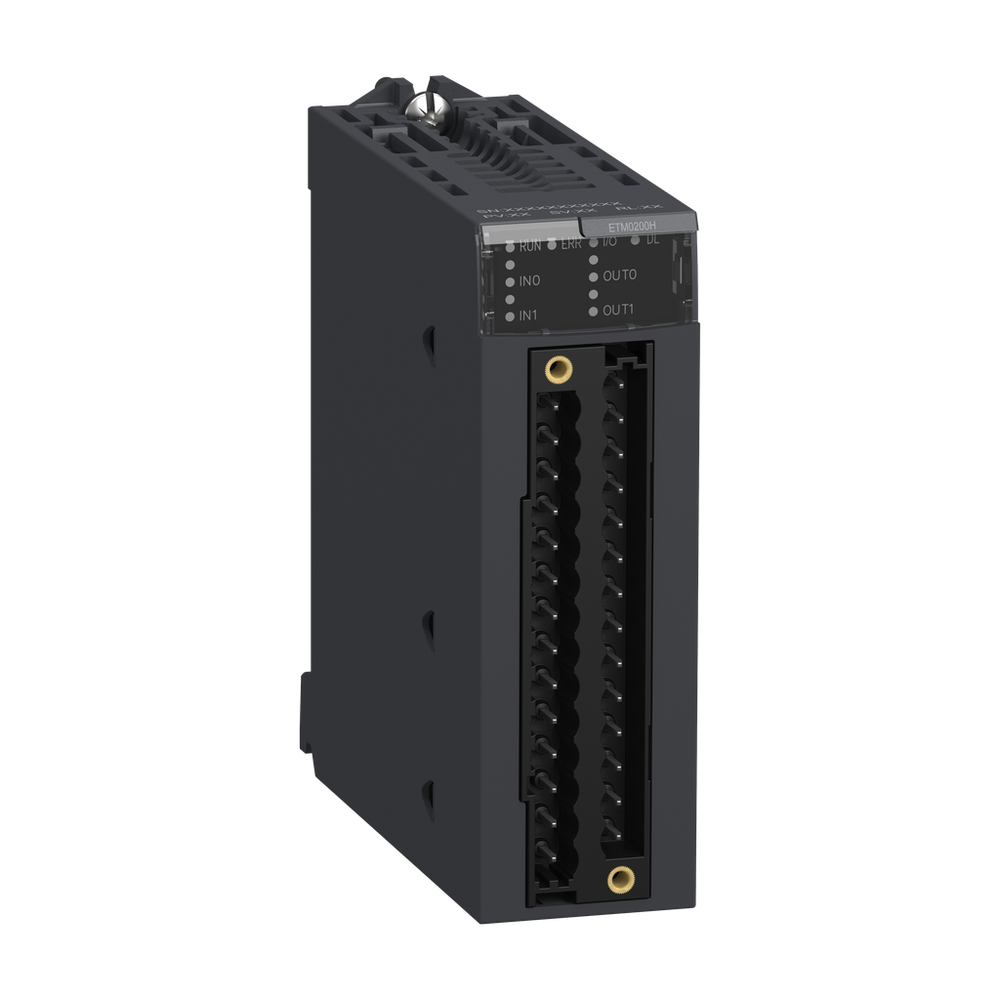

Schneider Electric BMXETM0200H
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
frequency module, Modicon X80, turbomachinery, input 2 channels, hardened
Schneider Electric BMXETM0200H is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Current Consumption
- <= 200 mA 3.3 V DC bus || <= 30 mA 24 V DC sensor
- Cycle Time
- 1 ms
- Discrete Output Logic
- positive logic (source)
- Electrical Connection
- connector 28 pins
- Input Type
- high speed
- Input Voltage
- 24 V DC || 100 V AC
- Input Voltage Limits
- 19.2...30 V at 60 °C || 26.4 V at 70 °C
- Isolation Voltage
- 1400 V DC 1 min field/bus or ground || 1000 V DC 1 min differential interfaces || 1000 V DC 1 min input/output
- Maximum Leakage Current
- 0.1 mA at state 0
- Maximum Load Current
- 1 A per module || 0.5 A per output
- Maximum Voltage Drop
- <3 V at state 1
- Module Format
- standard
- Net Weight
- 0.124 kg
- Output Overload Protection
- integrated
- Output Short-Circuit Protection
- 1.5 A integrated
- Output Type
- reflex digital output
- Output Voltage
- 24 V DC
- Output Voltage Limits
- 19.2...30 V
- Overlap Time
- 0.2 ms
- Voltage State 0 Guaranteed
- < 0.3 V
- Voltage State 1 Guaranteed
- MPU 0.3...100 V AC || APU 2.5...30 V DC
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive
- Environmental Characteristic
- gas resistant class Gx ISA S71.04 || gas resistant class 3C4 IEC 60721-3-3 || dust resistant class 3S4 IEC 60721-3-3 || sand resistant class 3S4 IEC 60721-3-3 || salt resistant level 2 IEC 68252 || mold growth resistant class 3B2 IEC 60721-3-3 || fungal spore resistant class 3B2 IEC 60721-3-3 || hazardous location class I division 2
- Ip Degree Of Protection
- IP20
- Product Certifications
- CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22
- Protective Treatment
- conformal coating
- Relative Humidity
- 10-95 % without condensation
- Standards
- EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G || EN/IEC 60079-0
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Application
- speed and frequency control
- Function Available
- compare
- Input Compatibility
- 19.2-30 V incremental encoder || active pick-up sensor, 10...30 V totem pole || magnetic pick-up sensor
- Input Frequency
- 0-500 kHz
- Number Of Channels
- 2
- Number Of Inputs
- 2-2 MPU) || 2-2 APU)
- Number Of Outputs
- 2
- Product Compatibility
- M340 PLC || M580 PLC
- Product Destination
- turbo machine
- Product Or Component Type
- frequency module
- Range Of Product
- Modicon X80
- Type Of Measurement
- frequency
