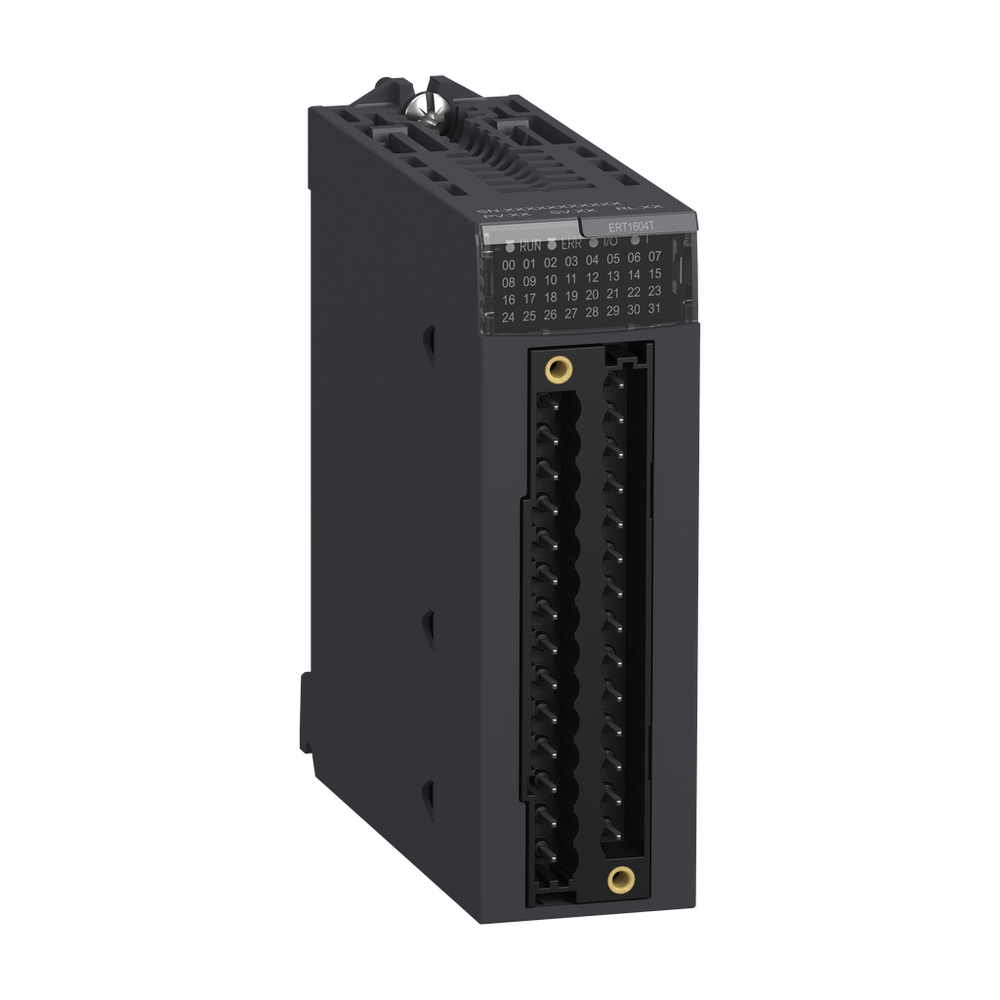

Schneider Electric BMXERT1604T
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This multifunction input module has 16 inputs with hot swap function. It has 4 groups of 4 input channels for process input with configurable from 0ms to 255ms anti bounce filtering. It is an module with a rated supply voltage of 24V DC, 48V DC to 60V DC, 110V DC to 125V DC and a current consumption of 30mA. This product is robust, high quality and based on the latest innovative technology. It has 4 groups of 4 input channels for process input with configurable from 0ms to 255ms anti bounce filtering. Its dimensions are 32mm (width) x 86mm (depth) x 100mm (height). It is suitable for medium to large process applications. This product is certified by Merchant Navy, C-Tick and GOST. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).multifunction input module, Modicon X80, 16 I, 24/24-125V DC
Schneider Electric BMXERT1604T is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Acquisition Time
- 1 ms
- Anti Bounce Filtering
- configurable from 0 to 255 ms
- Current Consumption
- 30 mA 24 V DC || 130 mA 3.3 V DC
- Data Recording
- 1 ms time stamps
- Depth
- 86 mm
- Function Available
- hot swap
- Group Of Channels
- 4 groups of 4 inputs process input
- Height
- 100 mm
- Isolation Voltage
- 2500 V DC 60 s bus to discrete input || 1400 V DC 60 s bus to IRIG/DCF || 2500 V DC 60 s discrete input to IRIG/DCF
- Local Signalling
- for firmware and module run (RUN) 1 LED (green) || for status of time code input (T) 1 LED (green) || for module fault (ERR) 1 LED (red) || for power supply interruption (I/O) 1 LED (red) || for input status (0...15) 16 LEDs
- Maximum Power Consumption In W
- 4 W process input
- Sampling Duration
- 0.5 ms
- Switching Voltage
- 125 V 1.3 mA process input || 110 V 1.3 mA process input || 60 V 2.5 mA process input || 48 V 2.5 mA process input || 24 V 6.7 mA process input
- Time Synchronisation Protocol
- DCF77 || IRIG-B
- [Us] Rated Supply Voltage
- 24 V DC 19...30 V) || 48...60 V DC 38...75 V) || 110...125 V DC 88...156 V)
- Width
- 32 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Environmental Characteristic
- gas resistant class Gx || gas resistant class 3C4 || dust resistant class 3S4 || sand resistant class 3S4 || salt resistant level 2 || mold growth resistant class 3B2 || fungal spore resistant class 3B2
- Operating Altitude
- <= 13123.36 ft (4000 m)
- Product Certifications
- CE || RCM || CSA || EAC || Merchant Navy || UL
- Relative Humidity
- 95-95 % without condensation
- Standards
- EN/IEC 61010-2-201 || EN/IEC 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Or Component Type
- multifunction input module
- Range Of Product
- Modicon X80
