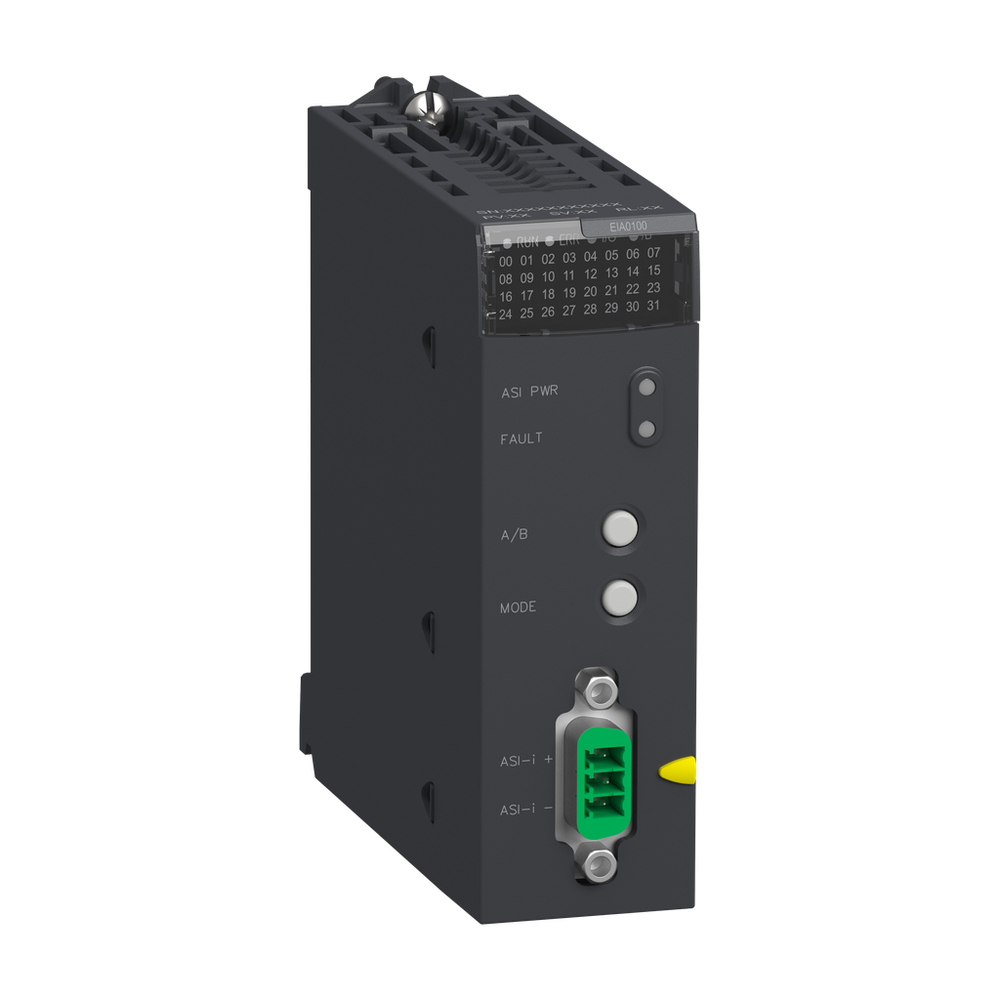

Schneider Electric BMXEIA0100
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This master module supports up to 62 I/O discrete devices and up to 31 I/O analogue devices. It is a master module with a current consumption of 160mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It is furnished with 3-way SUB-D male connector for electrical connection. It is an IP20 rated product. Maximum cable distance between devices is 100m, 200m line extension, 300m 2 repeaters, 500m 2 repeaters and the master at the middle. It weighs 0.34kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).master module, Modicon X80, upto 62 devices on discrete IO, upto 31 devices on analog IO
Schneider Electric BMXEIA0100 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Current Consumption
- 160 mA 3.3 V DC
- Cycle Time
- 5 ms 31 || 10 ms 62
- Electrical Connection
- 1 male connector SUB-D, 3 pins
- Local Signalling
- for module active (RUN) 1 LED (green) || for module error (ERR) 1 LED (red) || for displays the group of 31 slaves (A/B) 1 LED (green) || for I/O module fault (I/O) 1 LED (red) || for diagnostics of the AS-Interface and each slave 32 LEDs || for ASI power 1 LED (green) || for fault 1 LED (red)
- Maximum Cable Distance Between Devices
- 100 m || 200 m line extension || 300 m 2 repeaters || 500 m 2 repeaters and the master at the middle
- Module Format
- standard
- Net Weight
- 0.34 kg
- Number Of Slave
- 124 discrete inputs and outputs - standard || 124 analog inputs and outputs - standard || 496 discrete inputs and outputs - extended || 124 analog inputs and outputs - extended
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive
- Environmental Characteristic
- hazardous location class I division 2
- hazardous location
- Ip Degree Of Protection
- IP20
- Product Certifications
- CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22
- Standards
- EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G || EN/IEC 60079-0
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Actuator Sensor Interface Profile [As-I]
- M4 master profile || S7.3 slave profile || S7.A.7 slave profile || S7.A.A slave profile || S7.A.8 slave profile || S7.A.9 slave profile || S6.0.X slave profile
- Addressing
- standard and extended
- Product Or Component Type
- master module
- Range Of Product
- Modicon X80
