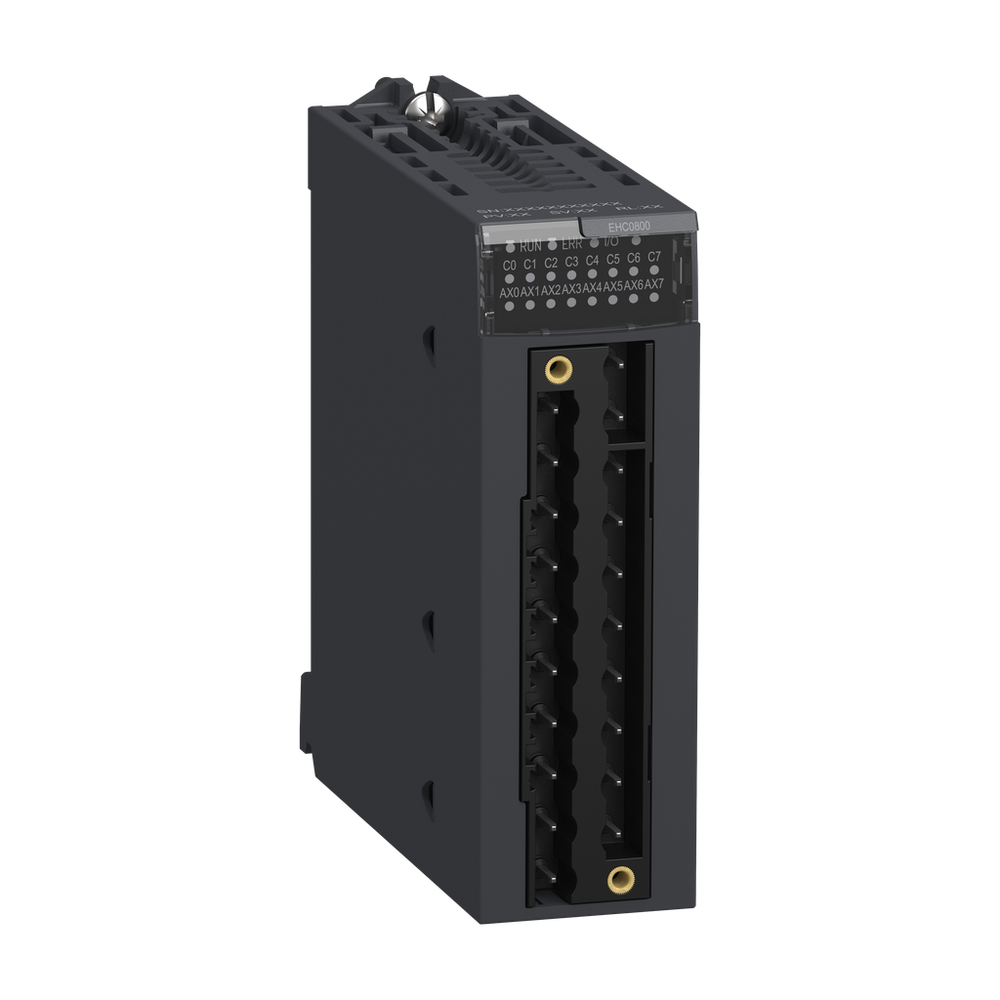

Schneider Electric BMXEHC0800
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This high speed counter module has 8 channels, 2 single mode inputs and 3 special dual phase mode inputs. It is a counter module with an input voltage of 24V DC and a current consumption of 200mA at 3.3V DC bus, 80mA at 24V DC sensor. Counter functions are loop (modulo) counting, down counting, count events, 32bit counter counting etc. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.113kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 19.2V to 30V 2-wire/3-wire proximity sensor, incremental encoder with push-pull outputs, 10V to 30V totem pole. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).counter module, Modicon M340, high speed, 8 channels
Schneider Electric BMXEHC0800 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Counter Functions
- up/down counter || 32-bit counter counting || frequency meter || loop (modulo) counting || count events || down counting
- Current Consumption
- 200 mA 3.3 V DC bus || 80 mA 24 V DC sensor
- Current State 0 Guaranteed
- <= 1.5 mA
- Current State 1 Guaranteed
- >= 6 mA
- Cycle Time
- 5 ms
- Electrical Connection
- 1 connector 20 pins
- Input Current
- 2 mA at 11 V
- Input Type
- high speed
- Input Voltage Limits
- 30 V
- Isolation Voltage
- 1500 V 60 s
- Module Format
- standard
- Net Weight
- 0.113 kg
- Voltage State 0 Guaranteed
- < 5 V
- Voltage State 1 Guaranteed
- 11...30 V
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Ip Degree Of Protection
- IP20
- Protective Treatment
- TC
- Relative Humidity
- 10-95 % without condensation
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Input Compatibility
- 19.2-30 V 2-wire/3-wire proximity sensor || incremental encoder with push-pull outputs, 10...30 V totem pole
- Input Voltage
- 24 V DC type 3
- Maximum Counting Frequency
- 10000 Hz
- Number Of Channels
- 8
- Number Of Inputs
- 2-2 single mode) || 3-3 special dual phase mode)
- Product Or Component Type
- counter module
- Range Of Product
- Modicon M340 automation platform
