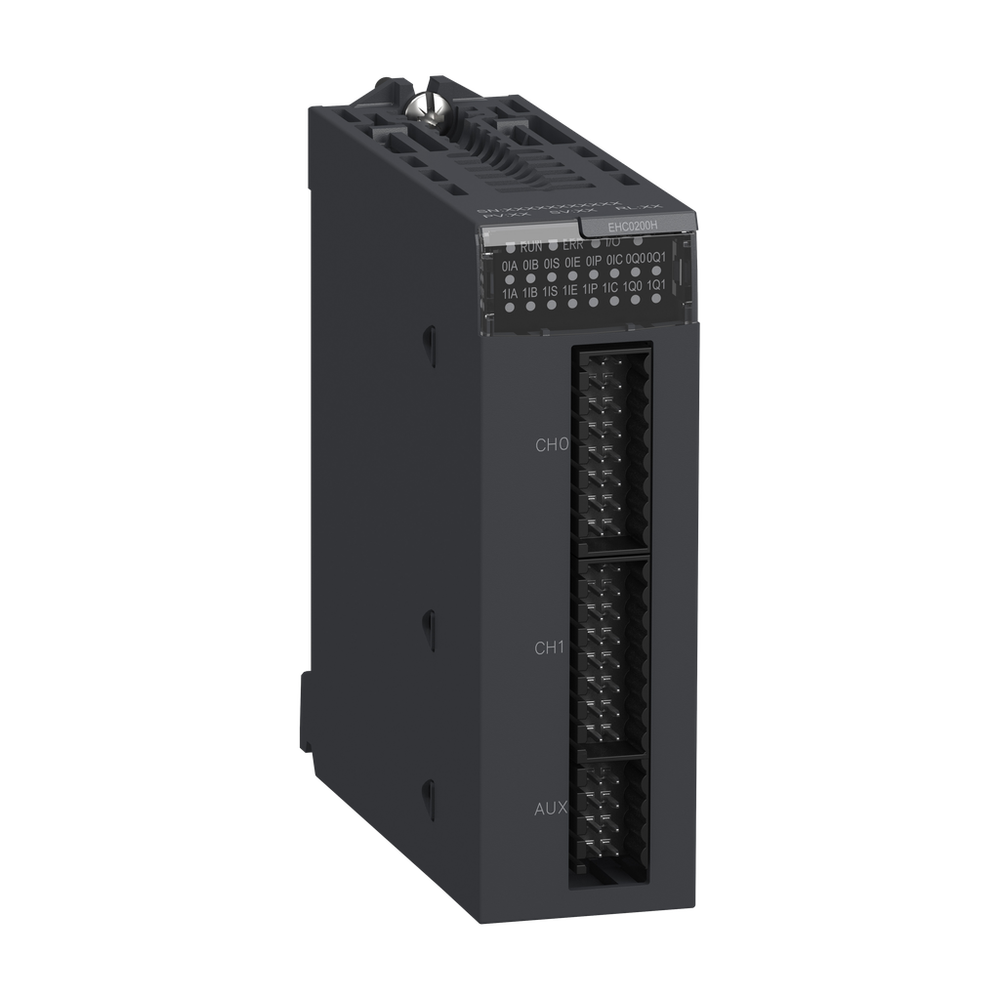

Schneider Electric BMXEHC0200H

Complementary

• Counter Functions
  • ratio count || frequency meter || down counting || 32-bit counter counting || loop (modulo) counting || measure time periods || count events || width modulation
• Current Consumption
  • 200 mA 3.3 V DC bus || 40 mA 24 V DC rack || 80 mA 24 V DC sensor
• Current State 0 Guaranteed
  • <= 1.5 mA
• Current State 1 Guaranteed
  • >= 6 mA
• Cycle Time
  • 1 ms
• Discrete Output Logic
  • positive or negative configurable
• Electrical Connection
  • 1 connector 10 pins for wiring auxiliary input and sensor power supply || 1 connector 16 pins for wiring the sensors of counter 0 || 1 connector 16 pins for wiring the sensors of counter 1
• Input Current
  • 2 mA at 11 V
• Input Type
  • 3 auxiliary input || 3 high speed
• Input Voltage Limits
  • 19.2...30 V at 60 °C || 26.4 V at 70 °C
• Isolation Voltage
  • 1500 V 60 s
• Maximum Leakage Current
  • 0.1 mA at state 0
• Maximum Load Current
  • 1 A per module || 0.5 A per output
• Maximum Output Current
  • 2 A per module || 0.5 A per output
• Maximum Voltage Drop
  • <3 V at state 1
• Module Format
  • standard
• Net Weight
  • 0.112 kg
• Output Overload Protection
  • integrated
• Output Short-Circuit Protection
  • 1.5 A integrated
• Output Voltage Limits
  • 19.2...30 V
• Overlap Time
  • 0.2 ms
• Voltage State 0 Guaranteed
  • < 5 V
• Voltage State 1 Guaranteed
  • 11...30 V

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • -25-70 °C
• Directives
  • 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
• Environmental Characteristic
  • gas resistant class Gx ISA S71.04 || gas resistant class 3C4 IEC 60721-3-3 || dust resistant class 3S4 IEC 60721-3-3 || sand resistant class 3S4 IEC 60721-3-3 || salt resistant level 2 IEC 68252 || mold growth resistant class 3B2 IEC 60721-3-3 || fungal spore resistant class 3B2 IEC 60721-3-3 || hazardous location class I division 2
• Ip Degree Of Protection
  • IP20
• Product Certifications
  • CE || UL || CSA || RCM || EAC || Merchant Navy
• Protective Treatment
  • conformal coating
• Relative Humidity
  • 10-95 % without condensation
• Standards
  • EN 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Input Compatibility
  • 19.2-30 V 2-wire/3-wire proximity sensor || incremental encoder with push-pull outputs, 10...30 V totem pole
• Input Voltage
  • 24 V DC type 3
• Maximum Counting Frequency
  • 60000 Hz
• Number Of Channels
  • 2
• Number Of Inputs
  • 6-6
• Number Of Outputs
  • 2
• Output Voltage
  • 24 V DC
• Product Or Component Type
  • counter module
• Product Specific Application
  • for severe environments
• Range Of Product
  • Modicon M340 automation platform
