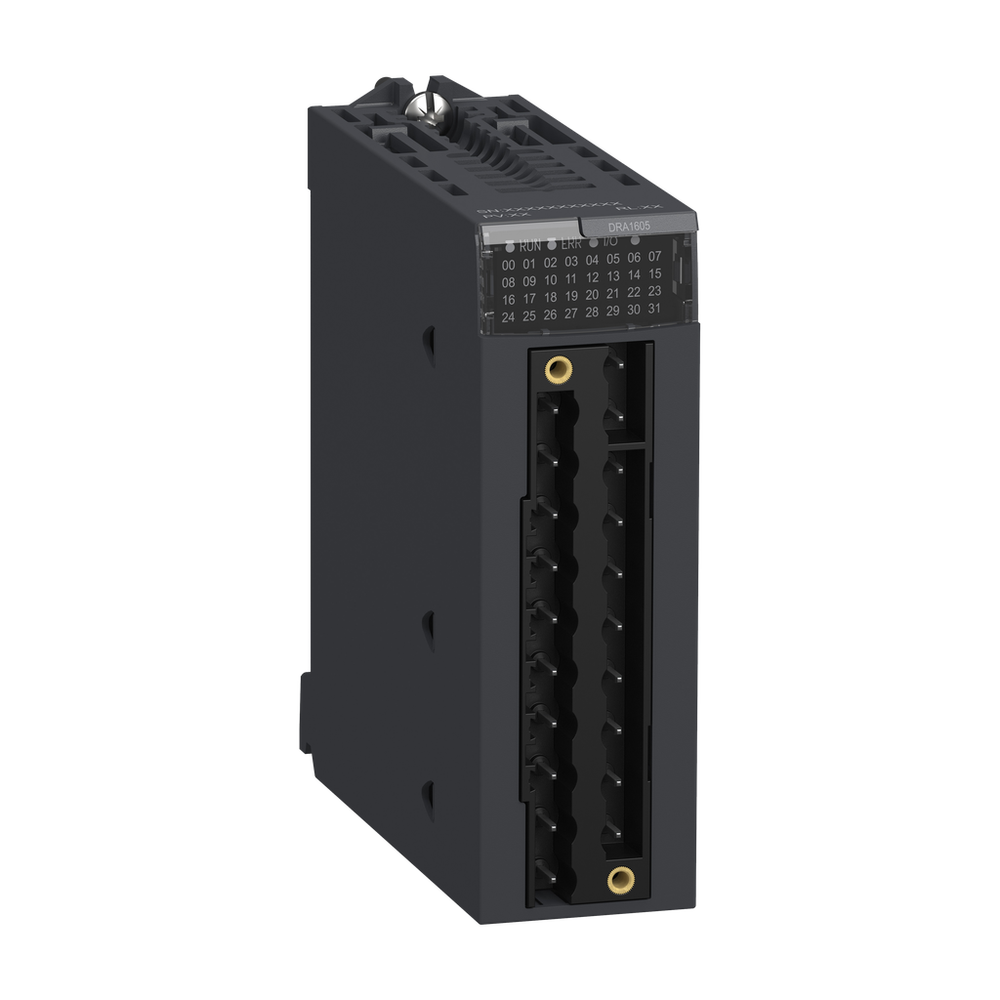

Schneider Electric BMXDRA1605
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This discrete output module is part of the Modicon X80 modules. It has 16 relay non protected outputs, 24V DC / 24V to 240V AC. This module is connected via 20-way removable terminal block. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.discrete output module, Modicon X80, 16 NO relay outputs, 24 to 240V AC, 24 to 48V DC
Schneider Electric BMXDRA1605 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Electrical Durability
- AC-15 100000 cycles 240 VA 200 V 0.7 ) || AC-15 100000 cycles 120 VA 200 V 0.35 ) || AC-12 100000 cycles 200 VA 100 V || AC-12 100000 cycles 80 VA 48 V || AC-12 100000 cycles 50 VA 24 V || AC-15 100000 cycles 120 VA 100 V || AC-15 100000 cycles 120 VA 24 V || AC-15 100000 cycles 120 VA 48 V || DC-12 100000 cycles 24 W 24 V || DC-13 100000 cycles 10 W 24 V || DC-13 100000 cycles 10 W 48 V || AC-15 300000 cycles 72 VA 200 V 0.7 ) || AC-15 300000 cycles 36 VA 200 V 0.35 ) || AC-12 300000 cycles 200 VA 200 V || AC-12 300000 cycles 80 VA 100 V || AC-12 300000 cycles 50 VA 48 V || AC-15 300000 cycles 36 VA 100 V || AC-15 300000 cycles 72 VA 100 V || AC-15 300000 cycles 36 VA 48 V || AC-15 300000 cycles 72 VA 48 V || AC-15 300000 cycles 36 VA 24 V || AC-15 300000 cycles 72 VA 24 V || DC-13 300000 cycles 3 W 24 V || DC-13 300000 cycles 3 W 48 V || DC-13 7000 cycles 24 W 24 V || DC-13 7000 cycles 24 W 48 V || DC-12 50000 cycles 24 W 48 V
- Insulation Resistance
- > 10 MOhm 500 V DC
- [Ith] Conventional Free Air Thermal Current
- 2 A
- Minimum Switching Current
- 1 mA 5 V DC
- Mtbf Reliability
- 2100000 H
- Net Weight
- 0.15 kg
- Output Overload Protection
- use 1 fast blow fuse per channel or group of channel
- Output Overvoltage Protection
- use discharge diode on each output DC || use RC circuit on each output AC || use ZNO surge limiter on each output AC
- Output Short-Circuit Protection
- use 1 fast blow fuse per channel or group of channel
- Power Dissipation In W
- 3 W
- Response Time On Output
- < 8 ms activation || < 10 ms deactivation
- Status Led
- 1 LED (Green) RUN || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) ERR || 1 LED (Red) I/O
- Typical Current Consumption
- 100 mA 3.3 V DC || 95 mA 24 V DC
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Dielectric Strength
- 2000 V AC 50/60 Hz 1 min
- Ip Degree Of Protection
- IP20
- Operating Altitude
- 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Shock Resistance
- 30 gn
- Vibration Resistance
- 3 gn
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Discrete Output Number
- 16 EN/IEC 61131-2
- Discrete Output Type
- relay
- Discrete Output Voltage
- 24...48 V 19...60 V DC || 24...240 V 19…264 V AC
- Product Or Component Type
- discrete output module
- Range Of Product
- Modicon X80
