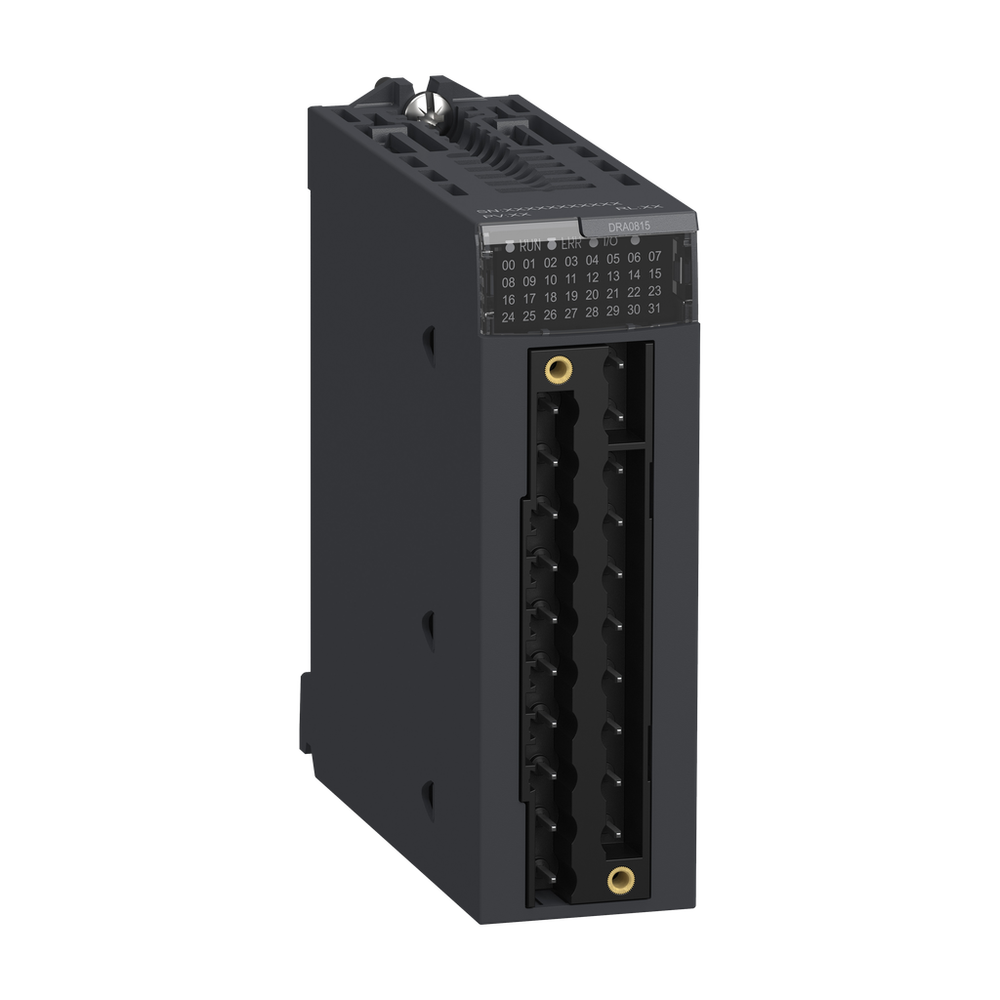

Schneider Electric BMXDRA0815
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
discrete output module, Modicon X80, 8 NO relay outputs, 24 to 240V AC, 24 to 125V DC
Schneider Electric BMXDRA0815 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Electrical Connection
- 20 ways terminal block
- Electrical Durability
- AC-12 200000 cycles 48 VA 24 V 0-60 °C || AC-12 300000 cycles 48 VA 48 V 0-60 °C || AC-12 150000 cycles 96 VA 48 V 0-60 °C || AC-12 300000 cycles 110 VA 100...120 V 0-60 °C || AC-12 150000 cycles 220 VA 100...120 V 0-60 °C || AC-12 300000 cycles 220 VA 200...250 V 0-60 °C || AC-12 150000 cycles 500 VA 200...250 V 0-60 °C || AC-15 700000 cycles 10 VA 24 V 0-60 °C 0.4 ) || AC-15 500000 cycles 24 VA 24 V 0-60 °C 0.4 ) || AC-15 200000 cycles 48 VA 24 V 0-60 °C 0.4 ) || AC-15 700000 cycles 10 VA 48 V 0-60 °C 0.4 ) || AC-15 500000 cycles 24 VA 48 V 0-60 °C 0.4 ) || AC-15 300000 cycles 48 VA 48 V 0-60 °C 0.4 ) || AC-15 100000 cycles 96 VA 48 V 0-60 °C 0.4 ) || AC-15 1000000 cycles 10 VA 100...120 V 0-60 °C 0.4 ) || AC-15 300000 cycles 50 VA 100...120 V 0-60 °C 0.4 ) || AC-15 200000 cycles 110 VA 100...120 V 0-60 °C 0.4 ) || AC-15 70000 cycles 220 VA 100...120 V 0-60 °C 0.4 ) || AC-15 1000000 cycles 10 VA 200...250 V 0-60 °C 0.4 ) || AC-15 500000 cycles 50 VA 200...250 V 0-60 °C 0.4 ) || AC-15 200000 cycles 110 VA 200...250 V 0-60 °C 0.4 ) || AC-15 150000 cycles 220 VA 200...250 V 0-60 °C 0.4 ) || DC-12 200000 cycles 24 W 24 V 0-60 °C || DC-12 150000 cycles 48 W 24 V 0-60 °C || DC-12 150000 cycles 40 W 48...60 V 0-60 °C || DC-12 100000 cycles 45 W 100...125 V 0-60 °C || DC-13 100000 cycles 10 W 24 V 0-60 °C || DC-13 60000 cycles 24 W 24 V 0-60 °C || DC-13 40000 cycles 48 W 24 V 0-60 °C || DC-13 40000 cycles 40 W 48...60 V 0-60 °C || DC-13 100000 cycles 15 W 100...125 V 0-60 °C
- Insulation Resistance
- > 10 MOhm 500 V DC
- [Ith] Conventional Free Air Thermal Current
- 3 A
- Minimum Switching Current
- 1 mA 5 V DC
- Mtbf Reliability
- 3200000 H
- Net Weight
- 0.169 kg
- Network Frequency
- 50/60 Hz
- Network Frequency Limits
- 47-63 Hz
- Output Overload Protection
- use 1 fast blow fuse per channel or group of channel
- Output Overvoltage Protection
- use discharge diode on each output DC || use RC circuit on each output AC || use ZNO surge limiter on each output AC
- Output Short-Circuit Protection
- use 1 fast blow fuse per channel or group of channel
- Power Dissipation In W
- 3.6 W
- Protection Type
- external short-circuit protection || external overload protection || external overvoltage protection, inductive AC || external overvoltage protection, inductive DC
- Response Time On Output
- <= 10 ms activation || <= 13 ms deactivation
- Status Led
- 1 LED (Green) RUN || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) ERR || 1 LED (Red) I/O
- Typical Current Consumption
- 40 mA 3.3 V DC || 101 mA 24 V DC
- Voltage Range
- 5...150 V || 19...264 V
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Dielectric Strength
- 1780 V AC 50/60 Hz 1 min
- Ip Degree Of Protection
- IP20
- Operating Altitude
- 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
- Relative Humidity
- 0-95 % 60-60 °C without condensation
- Shock Resistance
- 30 gn
- Vibration Resistance
- 3 gn
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Discrete Output Logic
- positive
- Discrete Output Number
- 8 EN/IEC 61131-2
- Discrete Output Voltage
- 24...240 V 19...264 V AC || 24...125 V 5...150 V DC
- Product Or Component Type
- relay discrete output module
- Range Of Product
- Modicon X80
