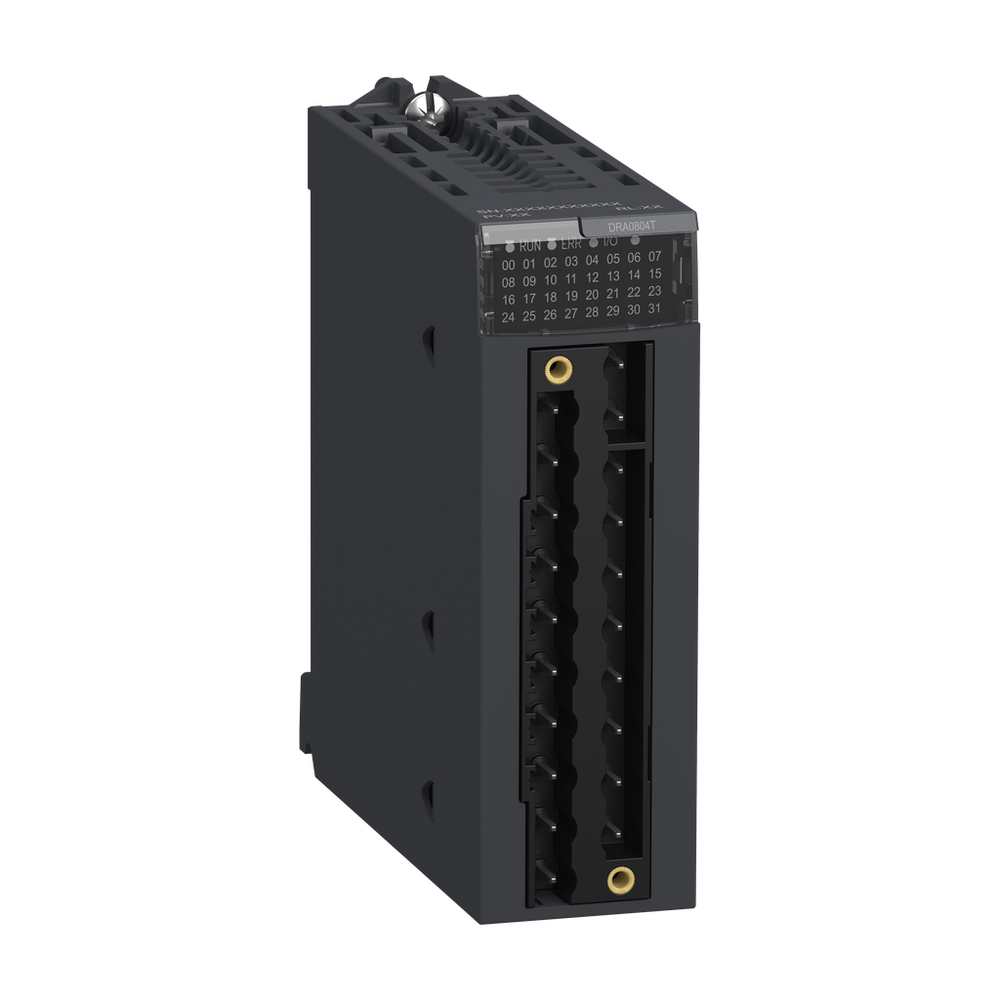

Schneider Electric BMXDRA0804T
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 8 relay outputs. It is a discrete output module with an output voltage of 100V DC to 150V DC, a typical current consumption of 61mA at 3.3V DC, 104mA at 24V DC. This product is robust, high quality and based on the latest innovative technology. It offers electrical durability of 100000 cycles and mechanical durability of 20 million cycles. It is an IP20 rated product. It weighs 0.145kg. It is suitable for extended temperature, medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).discrete output module, Modicon X80, 8 NO relay outputs, 100 to 150V DC, extended temperature
Schneider Electric BMXDRA0804T is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Current Consumption
- <= 112 mA 3.3 V DC || <= 117 mA 24 V DC
- Electrical Durability
- DC-12 100000 cycles 37 W 125 V || DC-13 100000 cycles 12 W 125 V
- Insulation Resistance
- > 10 MOhm 500 V DC
- Maximum Switching Current
- 0.3 A
- Mechanical Durability
- 20000000 cycles
- Minimum Switching Current
- 100 mA 5 V DC
- Mtbf Reliability
- 2800000 H
- Net Weight
- 0.145 kg
- Output Overload Protection
- use 1 fast blow fuse per channel or group of channel
- Output Overvoltage Protection
- use discharge diode on each output DC
- Output Short-Circuit Protection
- use 1 fast blow fuse per channel or group of channel
- Power Dissipation In W
- 3.17 W
- Response Time On Output
- < 10 ms activation || < 10 ms deactivation
- Status Led
- 1 LED (Green) module operating (RUN) || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) module error (ERR) || 1 LED (Red) module I/O
- Typical Current Consumption
- 61 mA 3.3 V DC || 104 mA 24 V DC
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Dielectric Strength
- 2000 V AC 50/60 Hz 1 min
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Environmental Characteristic
- gas resistant class Gx || gas resistant class 3C4 || dust resistant class 3S4 || sand resistant class 3S4 || salt resistant level 2 || mold growth resistant class 3B2 || fungal spore resistant class 3B2
- Ip Degree Of Protection
- IP20
- Operating Altitude
- 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
- Protective Treatment
- conformal coating
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Shock Resistance
- 30 gn
- Vibration Resistance
- 3 gn
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Discrete Output Number
- 8 EN/IEC 61131-2
- Discrete Output Type
- relay
- Discrete Output Voltage
- 100...150 V DC
- Product Or Component Type
- discrete output module
- Product Specific Application
- extended temperature
- Range Of Product
- Modicon X80
