Schneider Electric BMXDDM3202K
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

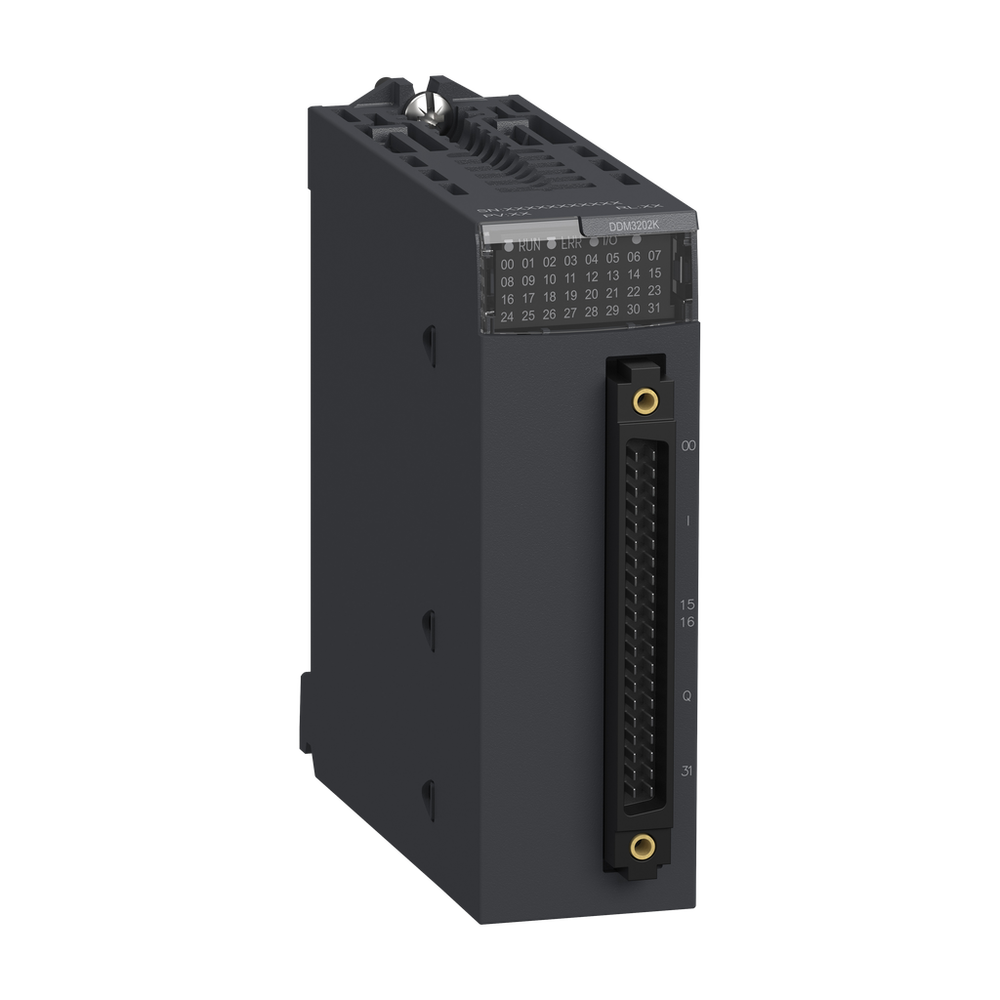

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete I/O module has 16 input channels, 16 solid state output channels. It is a discrete I/O module with a discrete input/output voltage of 24V DC, an output current of 0.1A, a maximum power dissipation of 4W and current consumption of 104mA at 24V DC, 166mA at 3.3V DC. This product is robust, high quality and based on the latest innovative technology. It offers 432904 hours of MTBF. It is an IP20 rated product. It weighs 0.11kg. It is suitable for medium to large process applications. This product is certified by Merchant Navy, RCM, CSA, EAC, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This input compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).discrete mixed IO module, Modicon X80, 16 inputs, 16 outputs, 24V DC positive
Schneider Electric BMXDDM3202K is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Current Consumption
- <= 104 mA 24 V DC || <= 166 mA 3.3 V DC
- Current Per Channel
- 0.125 A
- Current State 0 Guaranteed
- <= 0.5 mA
- Current State 1 Guaranteed
- >= 2 mA
- Dc Maximum Filtering Time
- 7 ms
- Dc Typical Filtering Time
- 4 ms
- Input Compatibility
- with 2-wire/3-wire proximity sensors IEC 60947-5-2 || with 2-wire/3-wire proximity sensors IEC 61131-2 Type 1
- Input Impedance
- 9600 Ohm
- Insulation Resistance
- > 10 MOhm 500 V DC
- Load Impedance Ohmic
- <= 220 Ohm
- Maximum Current Per Module
- 3.2 A
- Maximum Leakage Current
- 0.1 mA at state 0
- Maximum Overload Time
- 15 ms
- Maximum Tungsten Load
- 1.2 W
- Maximum Voltage Drop
- <1.5 V at state 1
- Mtbf Reliability
- 430000 H
- Net Weight
- 0.11 kg
- Output Overload Protection
- with electronic circuit breaker 0.125 A < Id < 0.185 A || with current limiter
- Output Overvoltage Protection
- with transil diode
- Output Short-Circuit Protection
- with 2 A external fuse
- Paralleling Of Outputs
- yes : 3 maximum
- Power Dissipation In W
- 4 W
- Protection Type
- 1 external fuse per group of input channel 0.5 A fast blow || overvoltage protection on output || reverse polarity protection on input || reverse polarity protection on output
- Response Time On Output
- 1.2 ms
- Reverse Polarity Protection
- reverse mounted diode
- Status Led
- 1 LED (Green) module operating (RUN) || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) module error (ERR) || 1 LED (Red) module I/O
- Switching Frequency
- 0.5/LI² Hz
- Typical Current Consumption
- 69 mA 24 V DC || 125 mA 3.3 V DC
- Voltage Detection Threshold
- < 14 V DC preactuator fault || < 14 V DC sensor fault || > 18 V DC preactuator OK || > 18 V DC sensor OK
- Voltage Range
- 19...30 V
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Dielectric Strength
- 1500 V AC 50/60 Hz 1 minute, output/ground || 1500 V AC 50/60 Hz 1 minute, output/internal logic || 1500 V AC 50/60 Hz 1 minute, primary/secondary || 500 V DC 1 minute, between group of inputs and outputs
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Ip Degree Of Protection
- IP20
- Operating Altitude
- 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Shock Resistance
- 30 gn
- Vibration Resistance
- 3 gn
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Discrete Input Current
- 2.5 mA
- Discrete Input Number
- 16
- Discrete Input Voltage
- 24 V DC positive
- Discrete Output Current
- 0.1 A
- Discrete Output Number
- 16
- Discrete Output Type
- solid state
- Discrete Output Voltage
- 24 V 19...30 V DC
- Input Type
- current sink (logic positive)
- Product Or Component Type
- discrete I/O module
- Range Of Product
- Modicon X80
