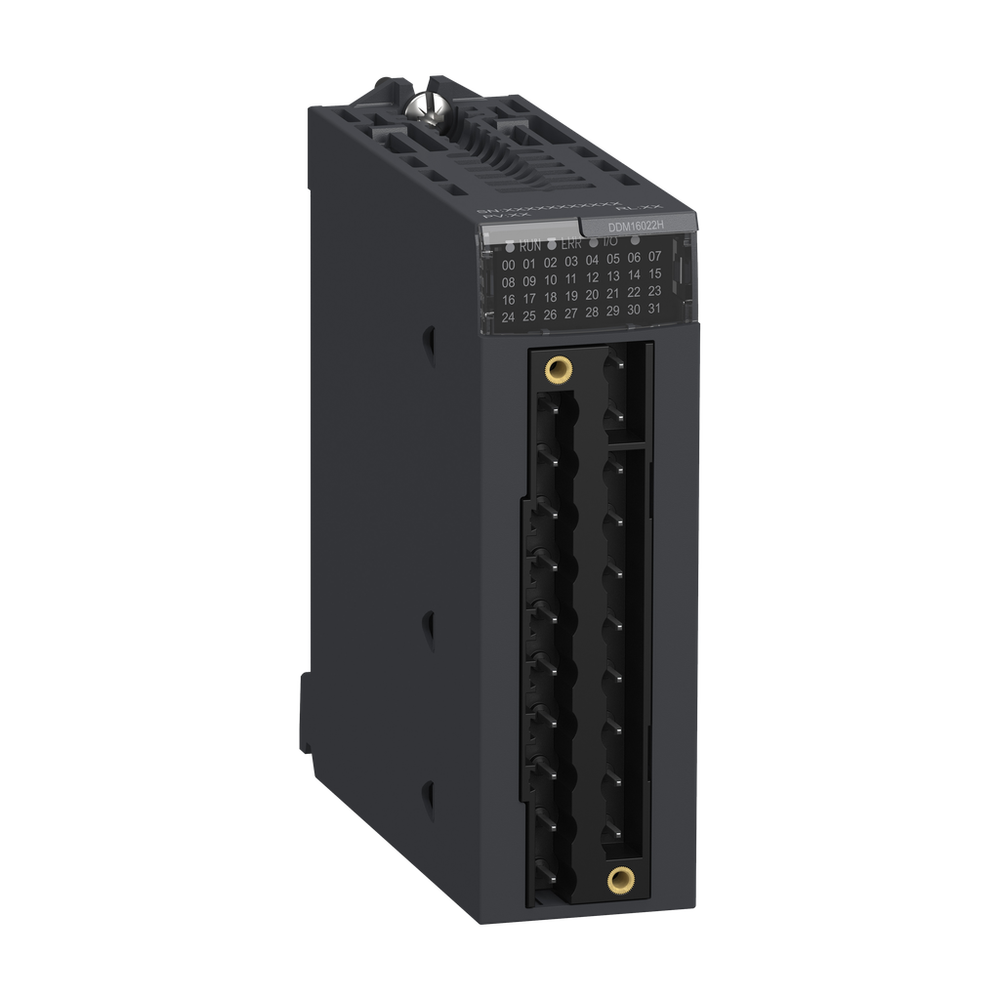

Schneider Electric BMXDDM16022H

Complementary

• Current Consumption
  • <= 111 mA 3.3 V DC || <= 67 mA 24 V DC
• Current Per Channel
  • 0.55 A 70 °C || 0.625 A 60 °C
• Current State 0 Guaranteed
  • <= 1.5 mA
• Current State 1 Guaranteed
  • >= 3 mA
• Dc Maximum Filtering Time
  • 7 ms
• Dc Typical Filtering Time
  • 4 ms
• Input Compatibility
  • with 2-wire/3-wire proximity sensors IEC 60947-5-2 || with 2-wire/3-wire proximity sensors IEC 61131-2 type 3
• Input Impedance
  • 6800 Ohm
• Insulation Resistance
  • > 10 MOhm 500 V DC
• Load Impedance Ohmic
  • >= 48 Ohm
• Maximum Current Per Module
  • 5 A 60 °C || 4.4 A 70 °C
• Maximum Leakage Current
  • 0.5 mA at state 0
• Maximum Overload Time
  • 15 ms
• Maximum Tungsten Load
  • 6 W
• Maximum Voltage Drop
  • <1.2 V at state 1
• Mtbf Reliability
  • 450000 H
• Net Weight
  • 0.115 kg
• Output Overload Protection
  • with electronic circuit breaker 1.5 In < Id < 2 In || with current limiter
• Output Overvoltage Protection
  • with transil diode
• Output Short-Circuit Protection
  • with 2 A external fuse
• Paralleling Of Outputs
  • yes : 2 maximum
• Power Dissipation In W
  • 3.7 W
• Protection Type
  • 1 external fuse per group of input channel 0.5 A fast blow || overvoltage protection on output || reverse polarity protection on input || reverse polarity protection on output
• Response Time On Output
  • 1.2 ms
• Reverse Polarity Protection
  • reverse mounted diode
• Status Led
  • 1 LED (Green) module operating (RUN) || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) module error (ERR) || 1 LED (Red) module I/O
• Switching Frequency
  • 0.5/LI² Hz
• Typical Current Consumption
  • 79 mA 3.3 V DC || 59 mA 24 V DC
• Voltage Detection Threshold
  • < 14 V DC preactuator fault || < 14 V DC sensor fault || > 18 V DC preactuator OK || > 18 V DC sensor OK
• Voltage Range
  • 21.1...29.0 V 70 °C || 19...30 V 60 °C

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • -25-70 °C
• Ambient Air Temperature For Storage
  • -40-85 °C
• Dielectric Strength
  • 1500 V AC 50/60 Hz 1 minute, output/ground || 1500 V AC 50/60 Hz 1 minute, output/internal logic || 1500 V AC 50/60 Hz 1 minute, primary/secondary || 500 V DC 1 minute, between group of inputs and outputs
• Directives
  • 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
• Environmental Characteristic
  • gas resistant class Gx || gas resistant class 3C4 || dust resistant class 3S4 || sand resistant class 3S4 || salt resistant level 2 || mold growth resistant class 3B2 || fungal spore resistant class 3B2
• Ip Degree Of Protection
  • IP20
• Operating Altitude
  • 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
• Protective Treatment
  • conformal coating
• Relative Humidity
  • 5-95 % 55-55 °C without condensation
• Shock Resistance
  • 30 gn
• Vibration Resistance
  • 3 gn

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Discrete Input Current
  • 3.5 mA
• Discrete Input Number
  • 8
• Discrete Input Voltage
  • 24 V DC positive
• Discrete Output Current
  • 0.5 A
• Discrete Output Number
  • 8
• Discrete Output Type
  • solid state
• Discrete Output Voltage
  • 24 V 19...30 V DC 60 °C || 24 V 26.4 V DC 70 °C
• Input Type
  • current sink (logic positive)
• Product Or Component Type
  • discrete I/O module
• Product Specific Application
  • for severe environments
• Range Of Product
  • Modicon X80
