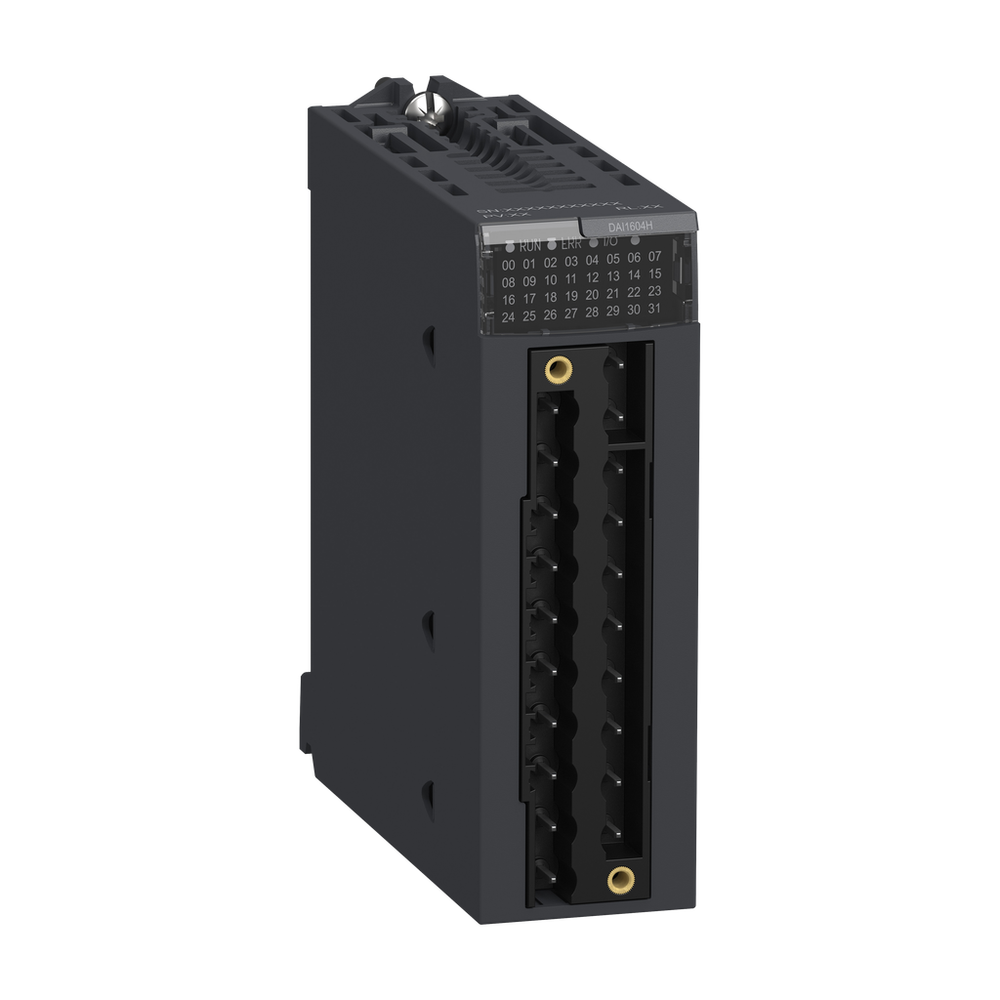

Schneider Electric BMXDAI1604H
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 16 capacitive inputs. It is an input module with an input voltage of 100V AC to 120V AC, a current consumption of 90mA at 3.3V DC and a power dissipation of 3.8W. There is an isolation between channels. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It has an external fuse per group of channel 0.5A fast blow protection type. It offers 1504958 hours of MTBF. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process and severe environments applications. This product is certified by EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).discrete input module, Modicon X80, 16 inputs, 100 to 120V AC, for severe environments
Schneider Electric BMXDAI1604H is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Ac Activation Filtering Time
- 10 ms
- Ac Deactivation Filtering Time
- 20 ms
- Current State 0 Guaranteed
- <= 1 mA
- Current State 1 Guaranteed
- >= 2.5 mA
- Input Compatibility
- 2-wire proximity sensor IEC 60947-5-2 || 2-wire proximity sensor IEC 61131-2 type 3
- Input Impedance
- 13000 Ohm
- Insulation Resistance
- > 10 MOhm 500 V DC
- Mtbf Reliability
- 1120000 H
- Net Weight
- 0.115 kg
- Network Frequency
- 50/60 Hz
- Network Frequency Limits
- 47-63 Hz
- Power Dissipation In W
- 3.8 W
- Protection Type
- 1 external fuse per group of channel 0.5 A fast blow
- Status Led
- 1 LED (Green) module operating (RUN) || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) module error (ERR) || 1 LED (Red) module I/O
- Typical Current Consumption
- 76 mA 3.3 V DC
- Voltage Detection Threshold
- < 40 V AC sensor fault || > 82 V AC sensor OK
- Voltage Range
- 85...132 V
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Dielectric Strength
- 1500 V AC 50/60 Hz 1 min
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Environmental Characteristic
- gas resistant class Gx || gas resistant class 3C4 || dust resistant class 3S4 || sand resistant class 3S4 || salt resistant level 2 || mold growth resistant class 3B2 || fungal spore resistant class 3B2
- Ip Degree Of Protection
- IP20
- Operating Altitude
- 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
- Protective Treatment
- conformal coating
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Shock Resistance
- 30 gn
- Vibration Resistance
- 3 gn
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Discrete Input Current
- 5 mA
- Discrete Input Number
- 16
- Discrete Input Type
- isolated
- Discrete Input Voltage
- 100...120 V AC
- Input Type
- capacitive
- Product Or Component Type
- discrete input module
- Product Specific Application
- for severe environments
- Range Of Product
- Modicon X80
