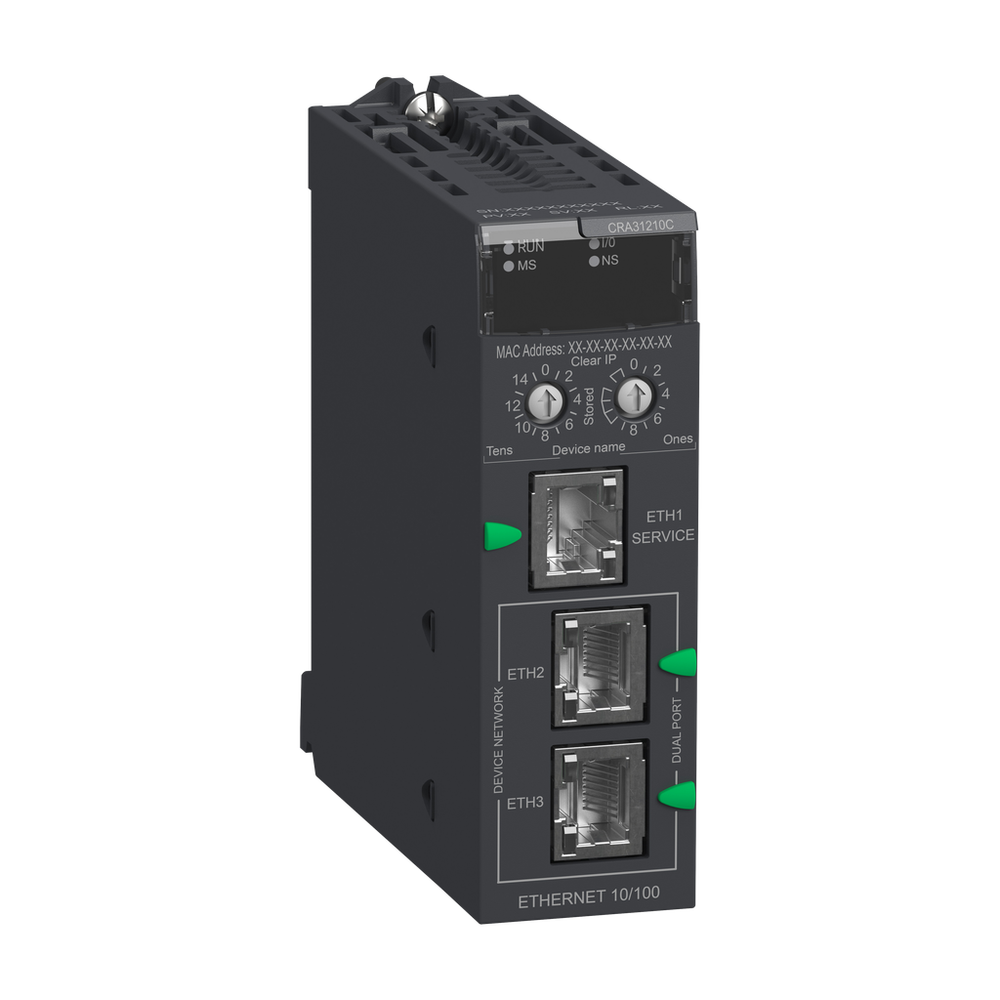

Schneider Electric BMXCRA31210C
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet Remote Input Output (RIO) drop adaptor has 3 ports with daisy chain loop topology. Integrated connections are EtherNet/IP for device network and EtherNet/IP for service port. Thanks to a protective coating on its circuit board, this product can be used in harsh environments. The input data are collected and published to the remote I/O head adaptor and output modules are updated with the data received from remote I/O head adaptor. It is an IP20 rated product. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, GOST, C-Tick. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This adaptor is compatible with multifunction input module BMXERT, Ethernet module BMXNOM, counter module BMXEHC, 0 to 1024 discrete channel and 0 to 256 analogue channel. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).remote IO drop E/IP, Modicon X80, performance, service port, advanced features, coated
Schneider Electric BMXCRA31210C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Bus Type
- bus X across the remote backplane
- Communication Network Type
- IPv4 (internet protocol)
- Communication Port Protocol
- EtherNet/IP
- Communication Service
- Ethernet/IP adapter || RSTP (Ring topology support) || Ethernet RIO network || Quality of Service (QoS) || CIP Explicit messaging (server) || Modbus TCP server for module diagnostics || DHCP client || TFTP client || FTP client || FDR client || SNTP client || SNMP agent
- Connector Type
- 3 RJ45
- Current Consumption
- 1200 mA
- Cybersecurity
- enable/disable communication ports || Syslog protocol support
- Data Recording
- 10 ms time stamps
- Depth
- 87.5 mm
- Exchange Mode
- half duplex, full duplex, autonegotiation, auto MDIX
- Fixing Mode
- by screws
- Function Available
- CCOTF (configuration change on the fly) || input data is collected and published to the remote I/O head adaptor || output modules are updated with the data received from remote I/O head adaptor || diagnostics for remote I/O devices (Device DDT) || port mirroring || system time stamping || non-interfering type 1 || I/O extension rack
- Height
- 100 mm
- Input Voltage
- 3.3 V DC
- Integrated Connection Type
- 1 port service or distributed equipment || 2 port Ethernet RIO Network (RSTP)
- Local Signalling
- for module active (RUN) 1 LED (green) || for module error (ERR) 1 LED (red) || for module status (Mod Status) 1 LED (green/red) || for network communication status (Net Status) 1 LED (green/red) || for Ethernet link diagnostics (STS) 1 LED (green)
- Maximum Altitude Transport
- 3000 m
- Module Format
- standard
- Mounting Mode
- rack-mounted
- Net Weight
- 0.225 kg
- Number Of Port
- 3
- Port Ethernet
- 10/100BASE-TX
- Product Compatibility
- 0-1024 discrete channel || 0-256 analog channel || counter module || time-stamping module || SSI encoder interface module || motion control module || frequency input module || AS-Interface module || serial link module || fiber converter modules
- Relative Humidity
- 95-95 % without condensation
- Topology
- ring
- Transmission Rate
- 10/100 Mbit/s
- Width
- 32 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive
- Environmental Characteristic
- gas resistant class Gx ISA S71.04 || gas resistant class 3C4 IEC 60721-3-3 || dust resistant class 3S4 IEC 60721-3-3 || sand resistant class 3S4 IEC 60721-3-3 || salt resistant level 2 IEC 68252 || mold growth resistant class 3B2 IEC 60721-3-3 || fungal spore resistant class 3B2 IEC 60721-3-3
- Ip Degree Of Protection
- IP20
- Operating Altitude
- <= 6561.68 ft (2000 m)
- Product Certifications
- CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22 || hazardous location class 1, division 2
- Protective Treatment
- conformal coating
- Standards
- EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G || EN/IEC 60079-0 || UL 121201 || CSA C22.2 No 213
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Application
- X80 Ethernet RIO drop adaptor
- Product Or Component Type
- Ethernet I/O head module
- Product Specific Application
- for remote I/O modules
- Range Compatibility
- Modicon M580 || Modicon Quantum
- Range Of Product
- Modicon X80
