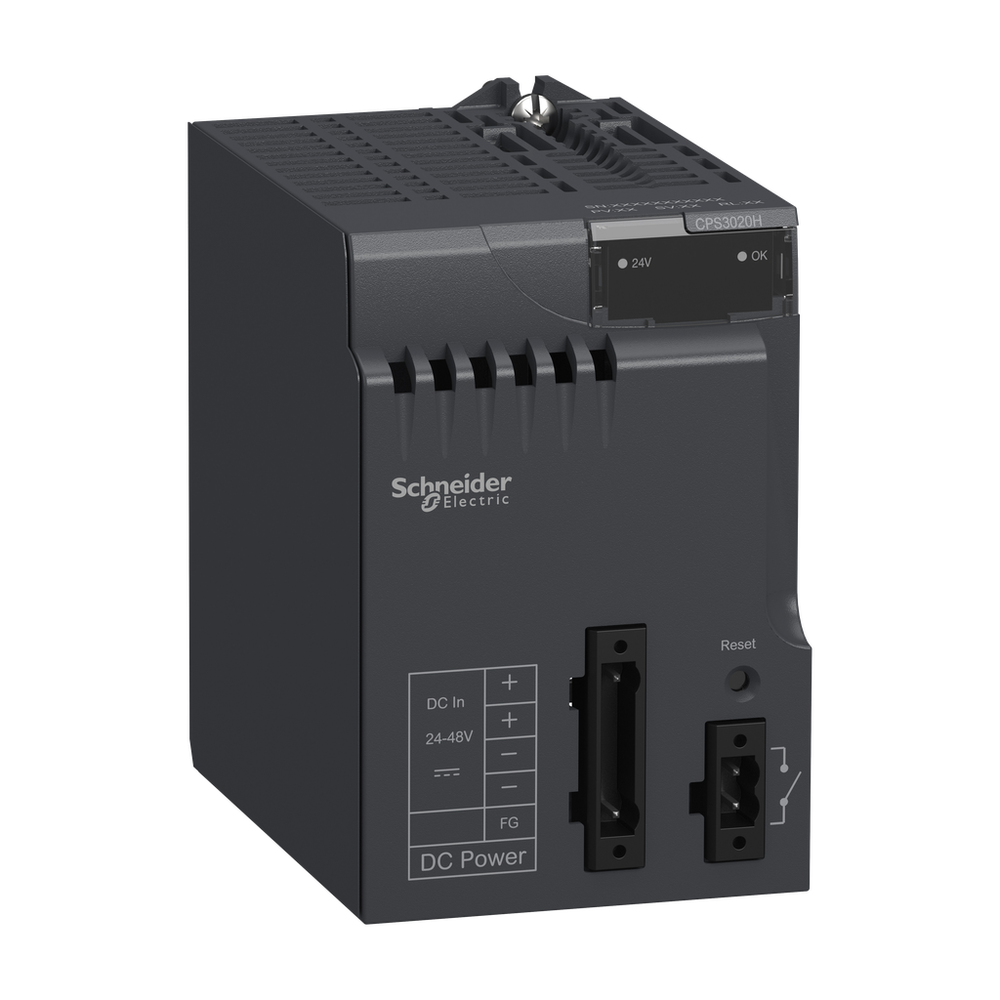

Schneider Electric BMXCPS3020H
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has an isolated primary voltage of 24V to 48V DC. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. It is an IP20 rated product. It weighs 0.34kg. It is suitable for medium to large process applications. This product is certified by ATEX, IEC-Ex, CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).power supply module, Modicon X80, 24 to 48V DC, 31.2W, severe environment
Schneider Electric BMXCPS3020H is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Control Type
- RESET push-button cold restart
- Current At Secondary Voltage
- 1.3 A 24 V DC I/O module power supply and processor || 4.5 A 3.3 V DC I/O module logic power supply
- Electrical Connection
- 1 connector 2 alarm relay || 1 connector 5 line supply, protective earth
- I²T On Activation
- 1 A².s 24 V || 3 A².s 48 V
- Input Current
- 0.83 A 48 V || 1.65 A 24 V
- Inrush Current
- 30 A 24 V || 60 A 48 V
- Insulation Resistance
- >= 10 MOhm primary/ground || >= 10 MOhm primary/secondary
- It On Activation
- 0.2 A.s 24 V || 0.3 A.s 48 V
- Maximum Cable Distance Between Devices
- 10 m power supply cable copper 1.5 mm² || 15 m power supply cable copper 2.5 mm²
- Maximum Power Dissipation In W
- 8.5 W
- Mtbf Reliability
- 4600000 H
- Net Weight
- 0.34 kg
- Primary Voltage Limit
- 18...62.4 V
- Protection Type
- internal fuse not accessible primary circuit || overload protection secondary circuit, 24 V sensor power supply || overvoltage protection secondary circuit, 24 V sensor power supply || short-circuit protection secondary circuit, 24 V sensor power supply
- Status Led
- 1 LED (Green) rack voltage OK
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Dielectric Strength
- 1500 V primary/ground || 1500 V primary/secondary
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive
- Environmental Characteristic
- gas resistant class Gx ISA S71.04 || gas resistant class 3C4 IEC 60721-3-3 || dust resistant class 3S4 IEC 60721-3-3 || sand resistant class 3S4 IEC 60721-3-3 || salt resistant level 2 IEC 68252 || mold growth resistant class 3B2 IEC 60721-3-3 || fungal spore resistant class 3B2 IEC 60721-3-3 || hazardous location class I division 2
- Immunity To Microbreaks
- 1 ms
- Ip Degree Of Protection
- IP20
- Operating Altitude
- 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
- Product Certifications
- CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22
- Protective Treatment
- conformal coating
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Shock Resistance
- 30 gn
- Standards
- EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G || EN/IEC 60079-0
- Vibration Resistance
- 3 gn
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Primary Voltage
- 24...48 V isolated
- Product Compatibility
- not compatible with BMEXBP..02
- Product Or Component Type
- power supply module
- Product Specific Application
- for severe environments
- Range Of Product
- Modicon X80
- Secondary Power
- 15 W 3.3 V DC 0-60 °C I/O module logic power supply || 31.2 W 24 V DC 0-60 °C I/O module power supply and processor || 11.3 W 3.3 V DC -25-70 °C I/O module logic power supply || 23.4 W 24 V DC -25-70 °C I/O module power supply and processor
- Supply Circuit Type
- DC
