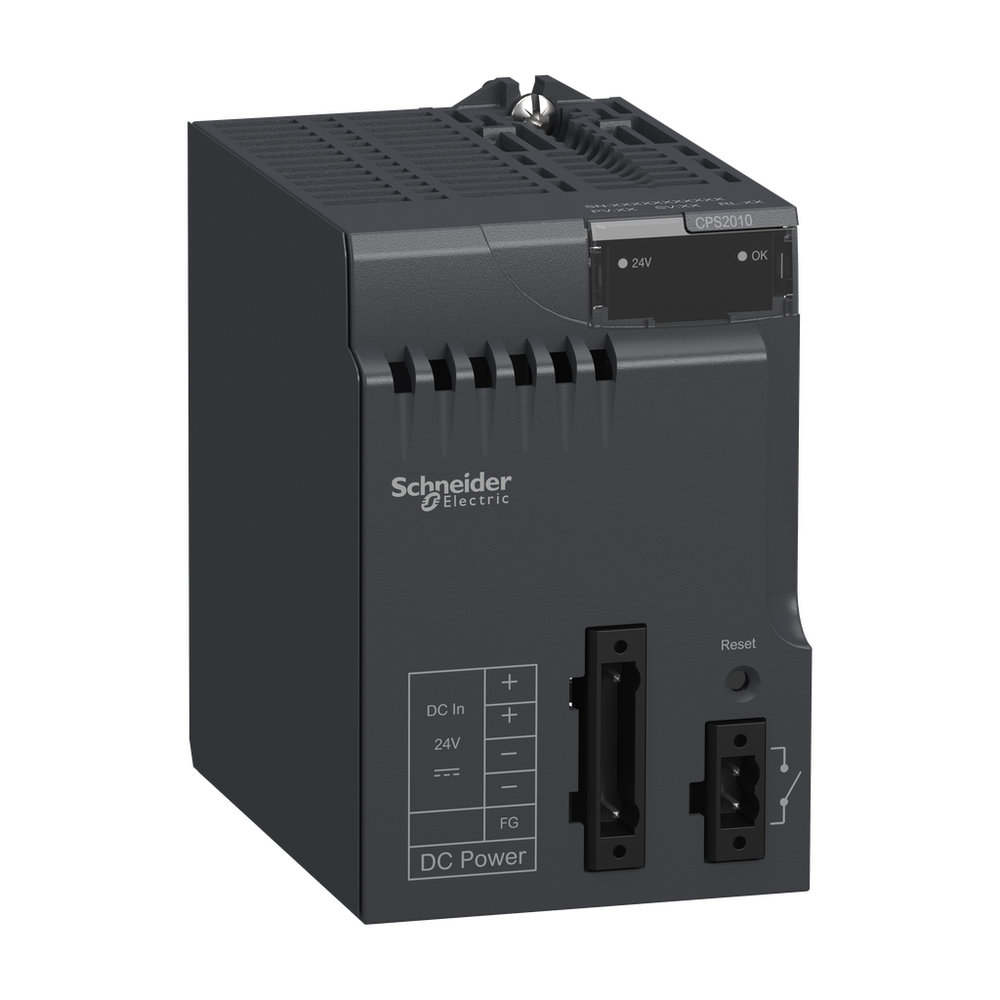

Schneider Electric BMXCPS2010
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has an isolated voltage of 24V DC. It is a power supply module with a secondary power of 16.8W at 24V DC, a current at secondary voltage of 2.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product. It weighs 0.29kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).power supply module, Modicon X80, 24V DC, 16.8W
Schneider Electric BMXCPS2010 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Control Type
- RESET push-button cold restart
- Current At Secondary Voltage
- 0.7 A 24 V DC I/O module power supply and processor || 2.5 A 3.3 V DC I/O module logic power supply
- Electrical Connection
- 1 connector 2 alarm relay || 1 connector 5 line supply, protective earth, 24 V DC input sensor
- I²T On Activation
- 0.6 A².s 24 V
- Input Current
- 1 A 24 V
- Inrush Current
- 30 A 24 V
- Insulation Resistance
- >= 10 MOhm primary/ground || >= 10 MOhm primary/secondary
- It On Activation
- 0.15 A.s 24 V
- Maximum Cable Distance Between Devices
- 20 m power supply cable copper 1.5 mm² || 30 m power supply cable copper 2.5 mm²
- Maximum Power Dissipation In W
- 8.5 W
- Mtbf Reliability
- 4886000 H
- Net Weight
- 0.29 kg
- Primary Voltage Limit
- 18...31.2 V
- Protection Type
- internal fuse not accessible primary circuit || overload protection secondary circuit, 24 V sensor power supply || overvoltage protection secondary circuit, 24 V sensor power supply || short-circuit protection secondary circuit, 24 V sensor power supply
- Status Led
- 1 LED (Green) rack voltage OK
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Dielectric Strength
- 1500 V primary/ground || 1500 V primary/secondary
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Immunity To Microbreaks
- 1 ms
- Ip Degree Of Protection
- IP20
- Operating Altitude
- 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
- Protective Treatment
- TC
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Shock Resistance
- 30 gn
- Vibration Resistance
- 3 gn
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Primary Voltage
- 24 V isolated
- Product Compatibility
- not compatible with BMEXBP..02
- Product Or Component Type
- power supply module
- Range Of Product
- Modicon X80
- Secondary Power
- 16.8 W 24 V DC I/O module power supply and processor || 8.3 W 3.3 V DC I/O module logic power supply
- Supply Circuit Type
- DC
