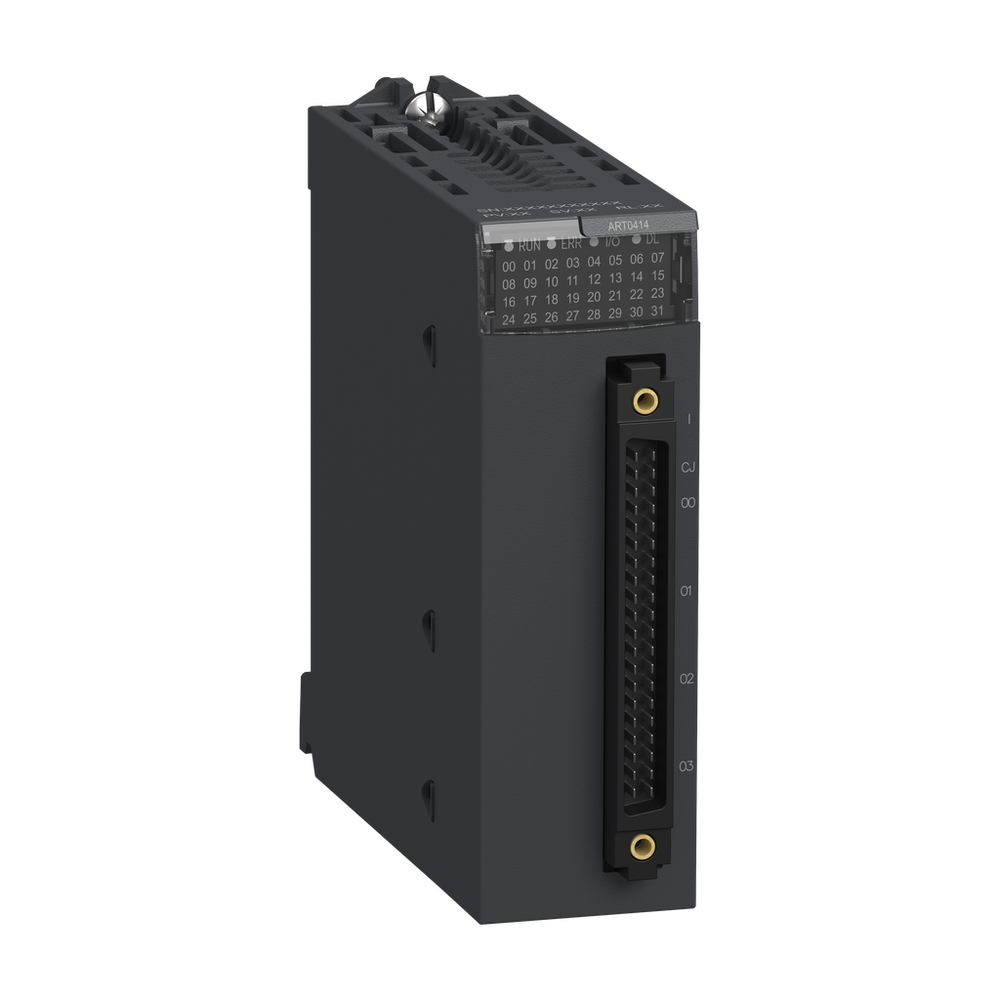

Schneider Electric BMXART0414

Complementary

• Analog/Digital Conversion
  • sigma delta 16 bits
• Analogue Input Resolution
  • 15 bits + sign
• Cold Junction Compensation
  • external by Pt100 probe
• Common Mode Rejection
  • 120 dB 50/60 Hz
• Current Consumption
  • 150 mA 3.3 V DC || 40 mA 24 V DC
• Detection Type
  • open circuit Cu 10 || open circuit Ni 100 || open circuit Ni 1000 || open circuit Pt 100 || open circuit Pt 1000 || open circuit thermocouple B || open circuit thermocouple E || open circuit thermocouple J || open circuit thermocouple K || open circuit thermocouple L || open circuit thermocouple N || open circuit thermocouple R || open circuit thermocouple S || open circuit thermocouple T || open circuit thermocouple U
• Differential Mode Rejection
  • 60 dB 50/60 Hz
• Isolation Voltage
  • 1400 V DC between channels and bus || 750 V DC between channels || 750 V DC between channels and ground
• Maximum Conversion Value
  • +/- 100 % 400 Ohm || +/- 100 % 4000 Ohm || +/- 102.5 % +/- 1.28 V || +/- 102.5 % +/- 160 mV || +/- 102.5 % +/- 320 mV || +/- 102.5 % +/- 40 mV || +/- 102.5 % +/- 640 mV || +/- 102.5 % +/- 80 mV
• Maximum Wiring Resistance
  • 20 Ohm 2 wires Cu 10 || 20 Ohm 2 wires Ni 100 || 20 Ohm 2 wires Pt 100 || 20 Ohm 3 wires Cu 10 || 20 Ohm 3 wires Ni 100 || 20 Ohm 3 wires Pt 100 || 200 Ohm 2 wires Ni 1000 || 200 Ohm 2 wires Pt 1000 || 200 Ohm 3 wires Ni 1000 || 200 Ohm 3 wires Pt 1000 || 50 Ohm 4 wires Cu 10 || 50 Ohm 4 wires Ni 100 || 50 Ohm 4 wires Pt 100 || 500 Ohm 4 wires Ni 1000 || 500 Ohm 4 wires Pt 1000
• Measurement Error
  • +/- 0.7 °C Ni 1000 25 °C || +/- 1.3 °C Ni 1000 0...60 °C || +/- 2 °C Pt 100 0...60 °C || +/- 2 °C Pt 1000 0...60 °C || +/- 2.1 °C Ni 100 25 °C || +/- 2.1 °C Pt 100 25 °C || +/- 2.1 °C Pt 1000 25 °C || +/- 2.7 °C thermocouple U 25 °C || +/- 2.8 °C thermocouple J 25 °C || +/- 3 °C Ni 100 0...60 °C || +/- 3 °C thermocouple L 25 °C || +/- 3.2 °C thermocouple R 25 °C || +/- 3.2 °C thermocouple S 25 °C || +/- 3.5 °C thermocouple B 25 °C || +/- 3.7 °C thermocouple E 25 °C || +/- 3.7 °C thermocouple K 25 °C || +/- 3.7 °C thermocouple N 25 °C || +/- 3.7 °C thermocouple T 25 °C || +/- 4 °C Cu 10 0...60 °C || +/- 4 °C Cu 10 25 °C || +/- 4.5 °C thermocouple J 0...60 °C || +/- 4.5 °C thermocouple L 0...60 °C || +/- 4.5 °C thermocouple R 0...60 °C || +/- 4.5 °C thermocouple S 0...60 °C || +/- 4.5 °C thermocouple U 0...60 °C || +/- 5 °C thermocouple B 0...60 °C || +/- 5 °C thermocouple E 0...60 °C || +/- 5 °C thermocouple K 0...60 °C || +/- 5 °C thermocouple N 0...60 °C || +/- 5 °C thermocouple T 0...60 °C || <= 0.15 % of full scale +/- 1.28 V 0...60 °C || <= 0.15 % of full scale +/- 160 mV 0...60 °C || <= 0.15 % of full scale +/- 320 mV 0...60 °C || <= 0.15 % of full scale +/- 40 mV 0...60 °C || <= 0.15 % of full scale +/- 640 mV 0...60 °C || <= 0.15 % of full scale +/- 80 mV 0...60 °C || <= 0.2 % of full scale 400 Ohm 0...60 °C || <= 0.2 % of full scale 4000 Ohm 0...60 °C || 0.05 % of full scale +/- 1.28 V 25 °C || 0.05 % of full scale +/- 160 mV 25 °C || 0.05 % of full scale +/- 320 mV 25 °C || 0.05 % of full scale +/- 40 mV 25 °C || 0.05 % of full scale +/- 640 mV 25 °C || 0.05 % of full scale +/- 80 mV 25 °C || 0.12 % of full scale 400 Ohm 25 °C || 0.12 % of full scale 4000 Ohm 25 °C
• Measurement Resolution
  • 0.1 °C Cu 10 || 0.1 °C Ni 100 || 0.1 °C Ni 1000 || 0.1 °C Pt 100 || 0.1 °C Pt 1000 || 0.1 °C thermocouple B || 0.1 °C thermocouple E || 0.1 °C thermocouple J || 0.1 °C thermocouple K || 0.1 °C thermocouple L || 0.1 °C thermocouple N || 0.1 °C thermocouple R || 0.1 °C thermocouple S || 0.1 °C thermocouple T || 0.1 °C thermocouple U || 1280/2exp14 mV +/- 1.28 V || 160/2exp14 mV +/- 160 mV || 320/2exp14 mV +/- 320 mV || 40/2exp14 mV +/- 40 mV || 12.5 mOhm 400 Ohm || 125 mOhm 4000 Ohm || 640/2exp14 mV +/- 640 mV || 80/2exp14 mV +/- 80 mV
• Mtbf Reliability
  • 1400000 H
• Net Weight
  • 0.135 kg
• Nominal Read Cycle Time
  • 400 ms with temperature probe || 200 ms with thermocouple
• Operating Altitude
  • 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
• Permitted Overload On Inputs
  • +/- 7.5 V +/- 1.28 V || +/- 7.5 V +/- 160 mV || +/- 7.5 V +/- 320 mV || +/- 7.5 V +/- 40 mV || +/- 7.5 V +/- 640 mV || +/- 7.5 V +/- 80 mV
• Recalibration
  • internal
• Status Led
  • 1 LED (Green) RUN || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) ERR || 1 LED (Red) I/O
• Temperature Drift
  • 25 ppm/°C 400 Ohm || 25 ppm/°C 4000 Ohm || 25 ppm/°C Ni 1000 || 25 ppm/°C thermocouple B || 25 ppm/°C thermocouple E || 25 ppm/°C thermocouple J || 25 ppm/°C thermocouple K || 25 ppm/°C thermocouple L || 25 ppm/°C thermocouple N || 25 ppm/°C thermocouple R || 25 ppm/°C thermocouple S || 25 ppm/°C thermocouple T || 25 ppm/°C thermocouple U || 30 ppm/°C +/- 1.28 V || 30 ppm/°C +/- 160 mV || 30 ppm/°C +/- 320 mV || 30 ppm/°C +/- 40 mV || 30 ppm/°C +/- 640 mV || 30 ppm/°C +/- 80 mV || 30 ppm/°C Cu 10 || 30 ppm/°C Ni 100 || 30 ppm/°C Pt 100 || 30 ppm/°C Pt 1000
• Type Of Filter
  • first order digital filtering

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • 0-60 °C
• Ambient Air Temperature For Storage
  • -40-85 °C
• Directives
  • 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
• Ip Degree Of Protection
  • IP20
• Product Certifications
  • EAC || RCM || UL || Merchant Navy || CSA || CE
• Relative Humidity
  • 5-95 % 55-55 °C without condensation
• Shock Resistance
  • 30 gn
• Standards
  • EN 61131-2 || EN 61000-6-4 || EN 61000-6-2 || EN 61010-2-201
• Vibration Resistance
  • 3 gn

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Analogue Input Number
  • 4
• Analogue Input Type
  • voltage +/- 1.28 V || voltage +/- 160 mV || voltage +/- 320 mV || voltage +/- 40 mV || voltage +/- 640 mV || voltage +/- 80 mV || resistor 400 Ohm 2 wires || resistor 400 Ohm 3 wires || resistor 400 Ohm 4 wires || resistor 4000 Ohm 2 wires || resistor 4000 Ohm 3 wires || resistor 4000 Ohm 4 wires || temperature probe -100...+260 °C Cu 10 || temperature probe -100...+450 °C Pt 100 UL/JIS || temperature probe -100...+450 °C Pt 1000 UL/JIS || temperature probe -200...+850 °C Pt 100 IEC || temperature probe -200...+850 °C Pt 1000 IEC || temperature probe -60...+180 °C Ni 100 || temperature probe -60...+180 °C Ni 1000 || thermocouple +130...+1820 °C thermocouple B || thermocouple +270...+1300 °C thermocouple N || thermocouple -200...+600 °C thermocouple U || thermocouple -200...+760 °C thermocouple J || thermocouple -200...+900 °C thermocouple L || thermocouple -270...+1000 °C thermocouple E || thermocouple -270...+1370 °C thermocouple K || thermocouple -270...+400 °C thermocouple T || thermocouple -50...+1769 °C thermocouple R || thermocouple -50...+1769 °C thermocouple S
• Electrical Connection
  • 40 ways 1 connector
• Input Level
  • low level
• Input Output Isolation
  • isolated
• Product Or Component Type
  • analog input module
• Range Of Product
  • Modicon X80
