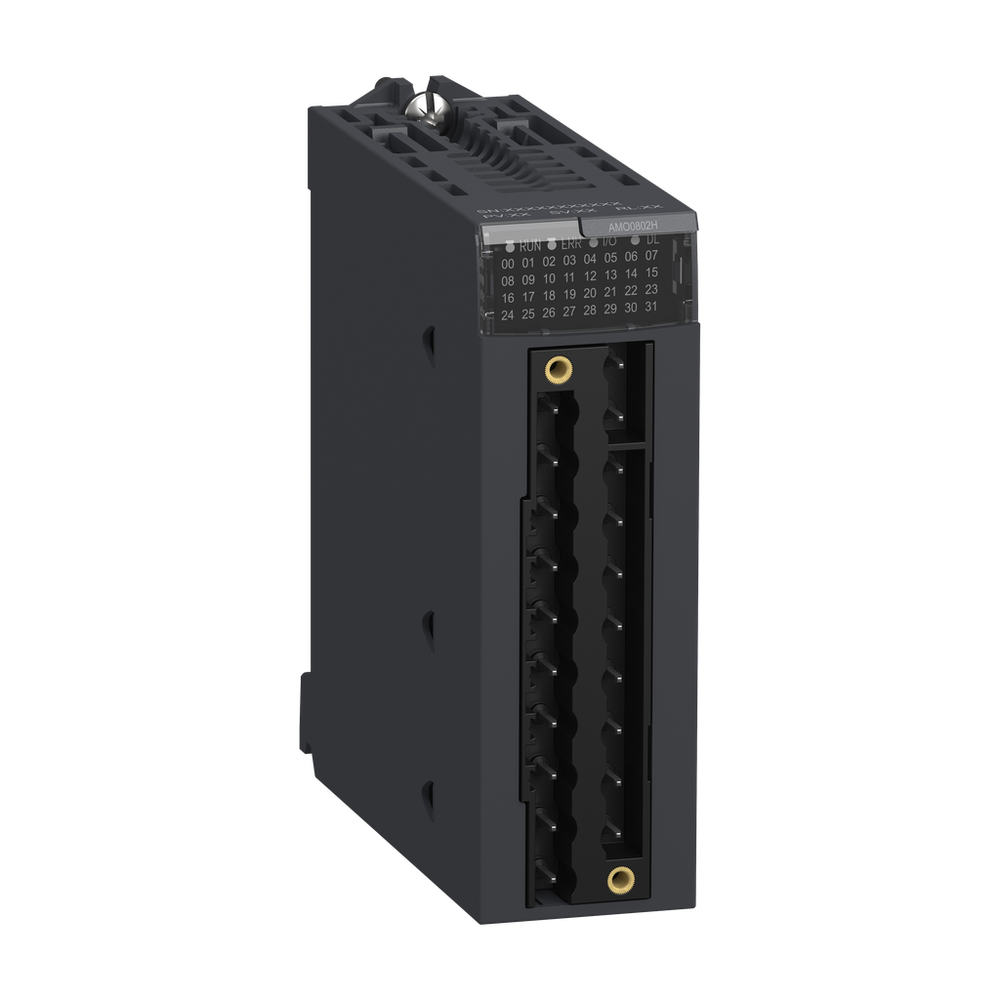

Schneider Electric BMXAMO0802H
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
analog non isolated high level output module, Modicon X80, 8 outputs, 0 to 20mA, 4 to 20mA, for severe environments
Schneider Electric BMXAMO0802H is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Output Number
- 8
- Analogue Output Resolution
- 16 bits
- Analogue Output Type
- current 0...20 mA || current 4...20 mA
- Common Mode Rejection
- 80 dB
- Conversion Time
- <= 4 ms
- Current Consumption
- 150 mA 3.3 V DC || 135 mA 24 V DC
- Detection Type
- open circuit 4...20 mA || short circuit 0...20 mA
- Fallback Mode
- configurable || predefined
- Isolation Voltage
- 1400 V DC between channels and ground || 1400 V DC between channels and bus
- Load Impedance Ohmic
- <= 350 Ohm 0...20 mA || <= 350 Ohm 4...20 mA
- Maximum Conversion Value
- 0...21 mA 0...20 mA || 0...21 mA 4...20 mA
- Measurement Error
- <= 0.45 % of full scale - 25...70 °C || 0.1 % of full scale 25 °C
- Minimum Crosstalk Attenuation
- 80 dB
- Mtbf Reliability
- 1500000 H
- Net Weight
- 0.15 kg
- Operating Altitude
- 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
- Power Consumption In W
- 3.6 W 24 V DC typical || 3.9 W 24 V DC maximum || 0.35 W 3.3 V DC typical || 0.48 W 3.3 V DC maximum
- Status Led
- 1 LED (Green) RUN || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) ERR || 1 LED (Red) I/O
- Supply
- internal power supply via rack
- Temperature Drift
- 45 ppm/°C 0...20 mA || 45 ppm/°C 4...20 mA
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Environmental Characteristic
- gas resistant class Gx || gas resistant class 3C4 || dust resistant class 3S4 || sand resistant class 3S4 || salt resistant level 2 || mold growth resistant class 3B2 || fungal spore resistant class 3B2 || hazardous location class I division 2
- Ip Degree Of Protection
- IP20
- Product Certifications
- Merchant Navy || ATEX || CE || CSA || EAC || RCM || IEC-Ex || UL
- Protective Treatment
- conformal coating
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Shock Resistance
- 30 gn
- Standards
- EN 61131-2 || EN 61000-6-4 || EN 61000-6-2 || EN 61010-2-201
- Vibration Resistance
- 3 gn
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Electrical Connection
- 20 ways 1 connector
- Input Output Isolation
- non isolated
- Product Or Component Type
- analog output module
- Product Specific Application
- for severe environments
- Range Of Product
- Modicon X80
