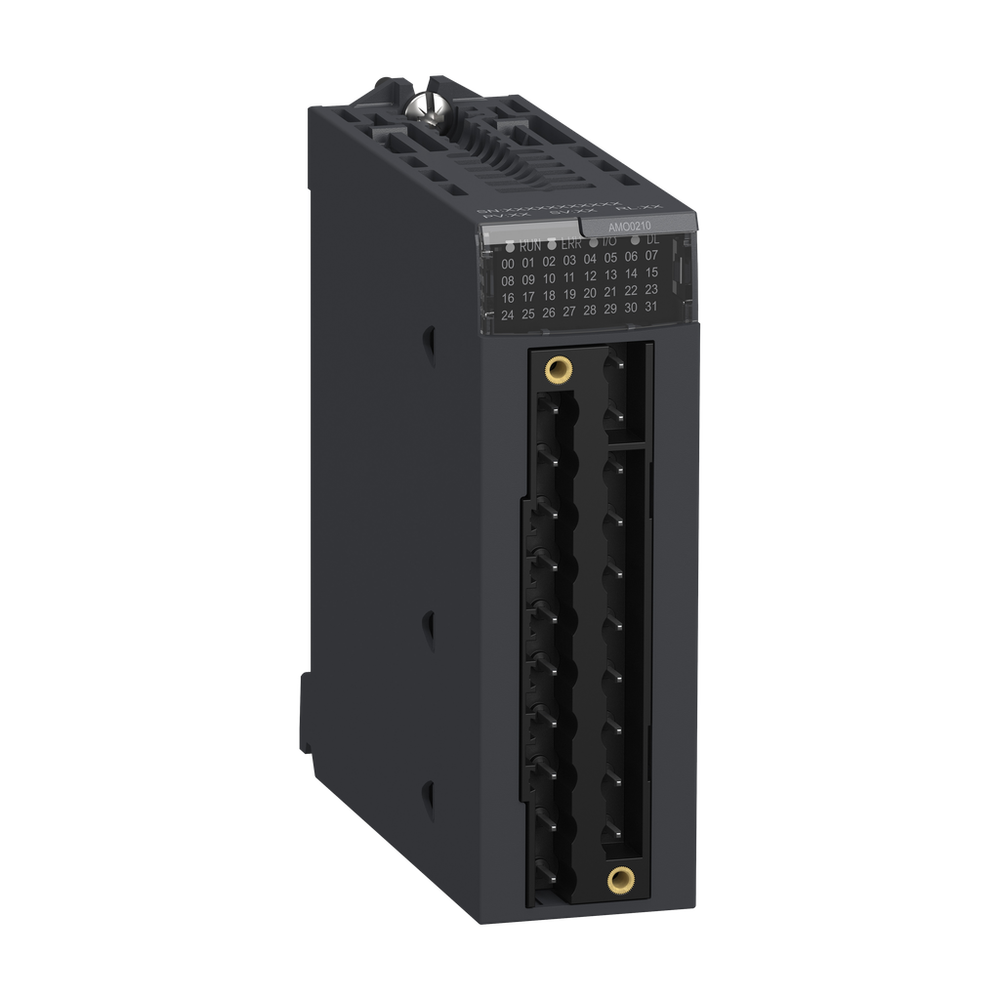

Schneider Electric BMXAMO0210
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This analog output module is part of the Modicon X80 modules. It has 2 isolated high level outputs (15 bits + sign). It offers different ranges of voltage or current for each of the outputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.analog isolated high level output module, Modicon X80, 2 outputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
Schneider Electric BMXAMO0210 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Output Number
- 2
- Analogue Output Resolution
- 15 bits + sign
- Analogue Output Type
- current 0...20 mA || current 4...20 mA || voltage +/- 10 V
- Common Mode Rejection
- 100 dB
- Conversion Time
- <= 1 ms
- Current Consumption
- 150 mA 3.3 V DC || 110 mA 24 V DC
- Detection Type
- open circuit 0...20 mA || open circuit 4...20 mA || short circuit +/- 10 V
- Fallback Mode
- predefined || configurable
- Isolation Voltage
- 1400 V DC between channels and ground || 1400 V DC between channels and bus || 750 V DC between channels
- Load Impedance Ohmic
- <= 600 Ohm 0...20 mA || <= 600 Ohm 4...20 mA || >= 1000 Ohm +/- 10 V
- Maximum Conversion Value
- +/- 11.25 V +/- 10 V || 0...24 mA 0...20 mA || 0...24 mA 4...20 mA
- Measurement Error
- <= 0.2 % of full scale 0...60 °C || 0.1 % of full scale 25 °C
- Minimum Crosstalk Attenuation
- 90 dB
- Mtbf Reliability
- 1300000 H
- Net Weight
- 0.144 kg
- Operating Altitude
- 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
- Output Level
- high level
- Power Consumption In W
- 2.1 W 24 V DC typical || 2.8 W 24 V DC maximum || 0.35 W 3.3 V DC typical || 0.48 W 3.3 V DC maximum
- Recalibration
- factory calibrated
- Status Led
- 1 LED (Green) RUN || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) ERR || 1 LED (Red) I/O
- Supply
- internal power supply via rack
- Temperature Drift
- 30 ppm/°C
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Ip Degree Of Protection
- IP20
- Product Certifications
- CE || RCM || CSA || EAC || Merchant Navy || UL
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Shock Resistance
- 30 gn
- Standards
- EN/IEC 61010-2-201 || EN/IEC 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
- Vibration Resistance
- 3 gn
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Electrical Connection
- 20 ways 1 connector
- Input Output Isolation
- isolated
- Product Or Component Type
- analog output module
- Range Of Product
- Modicon X80
