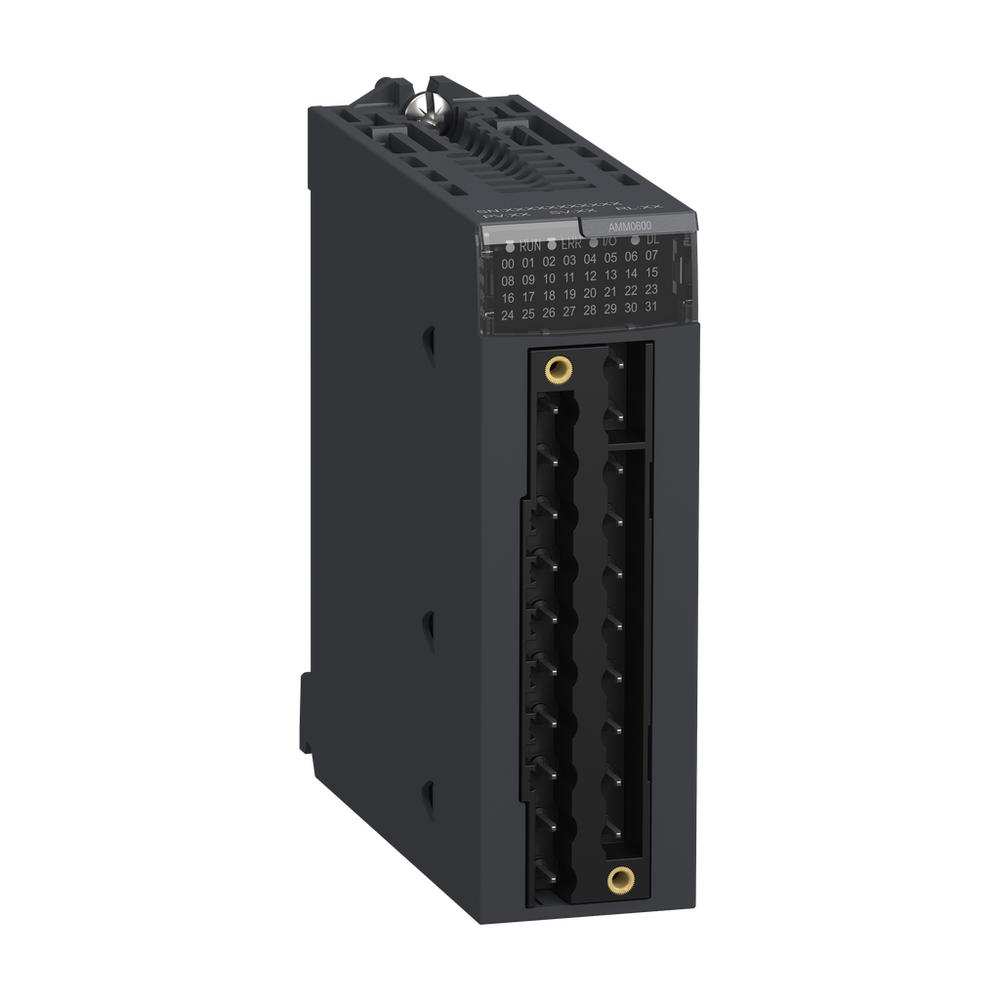

Schneider Electric BMXAMM0600
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This analog mixed I/O module is part of the Modicon X80 modules. It has 4 non-isolated inputs (14/12 bits) and 2 non-isolated outputs (12 bits). It offers different ranges of voltage or current for each of the inputs / outputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.analog non isolated high level IO module, Modicon X80, 4 I, 2 O, 0 to 20mA, 4 to 20mA, 10V positive or negative
Schneider Electric BMXAMM0600 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Input Resolution
- 12 bits 0...20 mA || 12 bits 0...5 V || 12 bits 1...5 V || 12 bits 4...20 mA || 13 bits 0...10 V || 14 bits +/- 10 V
- Analogue Output Number
- 2
- Analogue Output Resolution
- 11 bits, 0...20 mA || 11 bits, 4...20 mA || 12 bits, +/- 10 V
- Analogue Output Type
- current 0...20 mA || current 4...20 mA || voltage +/- 10 V
- Common Mode Rejection
- 80 dB
- Conversion Time
- <= 2 ms
- Current Consumption
- 240 mA 3.3 V DC
- Fallback Mode
- predefined || configurable
- Fast Read Cycle Time
- 1 ms + 1 ms x number of channels used
- Input Impedance
- 250 Ohm
- Isolation Voltage
- 1400 V DC between channels and ground || 1400 V DC between channels and bus || 750 V DC between group of I/O channels
- Maximum Conversion Value
- +/- 11.25 V +/- 10 V output || +/- 11.25 V +/- 10 V input || 0...30 mA 0...20 mA input || 0...30 mA 4...20 mA input || +/- 11.25 V 0...10 V input || +/- 11.25 V 0...5 V input || +/- 11.25 V 1...5 V input || 0...24 mA 0...20 mA output || 0...24 mA 4...20 mA output
- Measurement Error
- 0.25 % of full scale 0...20 mA 25 °C output || 0.25 % of full scale 4...20 mA 25 °C output || <= 0.35 % of full scale +/- 10 V 0...60 °C input || <= 0.35 % of full scale 0...10 V 0...60 °C input || <= 0.35 % of full scale 0...5 V 0...60 °C input || <= 0.35 % of full scale 1...5 V 0...60 °C input || <= 0.5 % of full scale 0...20 mA 0...60 °C input || <= 0.5 % of full scale 4...20 mA 0...60 °C input || <= 0.6 % of full scale +/- 10 V 0...60 °C output || <= 0.6 % of full scale 0...20 mA 0...60 °C output || <= 0.6 % of full scale 4...20 mA 0...60 °C output || 0.25 % of full scale +/- 10 V 25 °C output || 0.25 % of full scale +/- 10 V 25 °C input || 0.25 % of full scale 0...10 V 25 °C input || 0.25 % of full scale 0...5 V 25 °C input || 0.25 % of full scale 1...5 V 25 °C input || 0.35 % of full scale 0...20 mA 25 °C input || 0.35 % of full scale 4...20 mA 25 °C
- Minimum Crosstalk Attenuation
- 70 dB
- Mtbf Reliability
- 1400000 H
- Net Weight
- 0.155 kg
- Nominal Read Cycle Time
- 5 ms for 4 channels
- Operating Altitude
- 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
- Output Level
- high level
- Permitted Overload On Inputs
- +/- 30 mA 0...20 mA || +/- 30 mA 4...20 mA || +/- 30 V +/- 10 V || +/- 30 V 0...10 V || +/- 30 V 0...5 V || +/- 30 V 1...5 V
- Power Consumption In W
- 2.6 W 24 V DC typical || 3.2 W 24 V DC maximum || 0.35 W 3.3 V DC typical || 0.48 W 3.3 V DC maximum
- Precision Of Internal Conversion Resistor
- 0.1 % - 15 ppm/°C
- Recalibration
- factory calibrated on outputs || internal on inputs
- Status Led
- 1 LED (Green) RUN || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) ERR || 1 LED (Red) I/O
- Temperature Drift
- 100 ppm/°C +/- 10 V output || 100 ppm/°C 0...20 mA output || 100 ppm/°C 4...20 mA output || 30 ppm/°C +/- 10 V input || 30 ppm/°C 0...10 V input || 30 ppm/°C 0...5 V input || 30 ppm/°C 1...5 V input || 50 ppm/°C 0...20 mA input || 50 ppm/°C 4...20 mA input
- Type Of Filter
- first order digital filtering by firmware
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Ip Degree Of Protection
- IP20
- Product Certifications
- CE || RCM || CSA || EAC || Merchant Navy || UL
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Shock Resistance
- 30 gn
- Standards
- EN/IEC 61010-2-201 || EN/IEC 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
- Vibration Resistance
- 3 gn
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Analogue Input Number
- 4
- Analogue Input Type
- current 0...20 mA || current 4...20 mA || voltage +/- 10 V || voltage 0...10 V || voltage 0...5 V || voltage 1...5 V
- Electrical Connection
- 20 ways 1 connector
- Input Level
- high level
- Input Output Isolation
- non isolated
- Product Or Component Type
- mixed analog I/O module
- Range Of Product
- Modicon X80
