Schneider Electric BMXAMI0810H
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

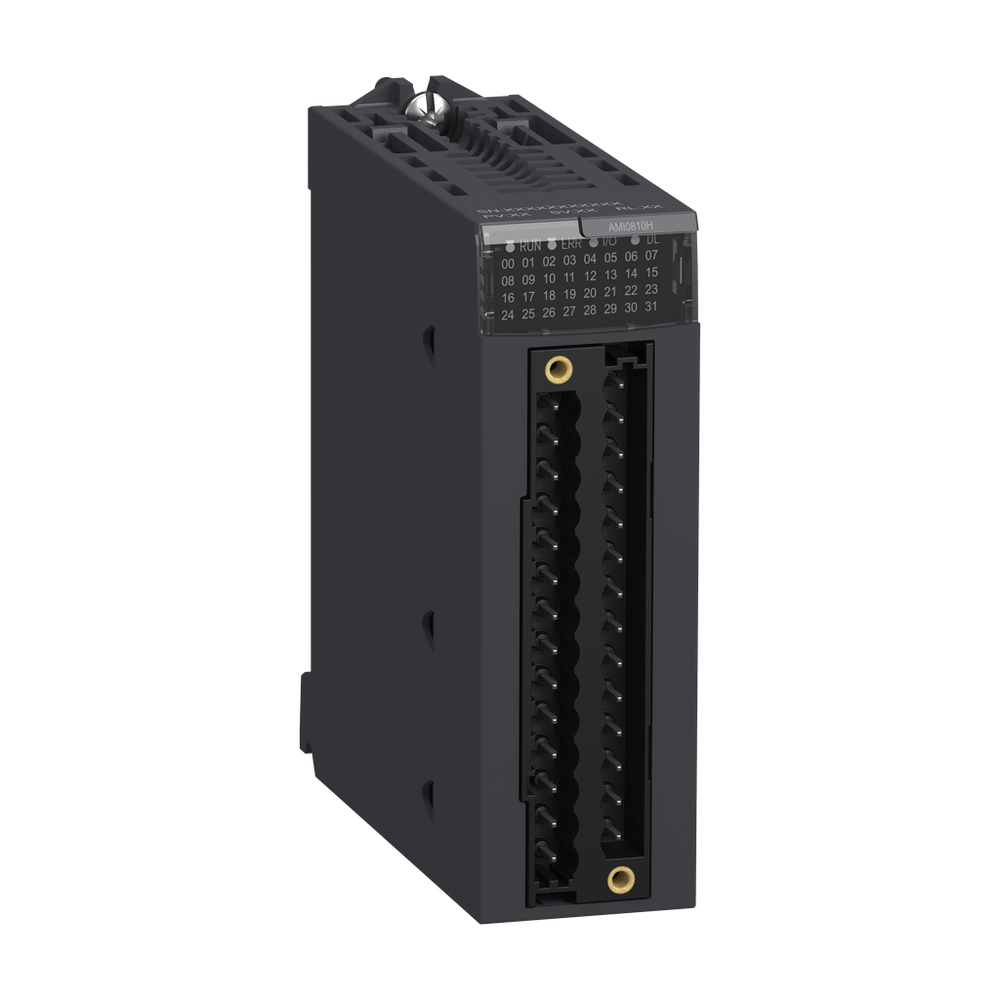

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue input module has 8 inputs with 15bit + sign input resolution. It is an input module with a power consumption of 1.54W at 24V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It is furnished with 28-way connector for electrical connection. It is an IP20 rated product. It weighs 0.175kg. It is suitable for medium to large process and severe environments applications. This product is certified by EAC, RCM, UL, CSA, IEC-Ex, Merchant Navy, ATEX, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).analog isolated high level input module, Modicon X80, 8 I, 0 to 20mA, 4 to 20mA, 10V positive or negative, severe environment
Schneider Electric BMXAMI0810H is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analog/Digital Conversion
- 16 bits
- Analogue Input Resolution
- 15 bits + sign
- Common Mode Rejection
- 80 dB
- Current Consumption
- 150 mA 3.3 V DC || 54 mA 24 V DC
- Digital Value Format
- 32768 to + 32767 in maximum user scale || +/- 10000 by default
- Fast Read Cycle Time
- 1 ms + 1 ms x number of channels used
- Input Impedance
- 10 MOhm in voltage mode || 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode
- Isolation Voltage
- 300 V DC between channels || 1400 V DC between channels and ground || 1400 V DC between channels and bus
- Maximum Conversion Value
- +/- 11.4 V +/- 10 V || +/- 11.4 V 0...10 V || +/- 11.4 V 0...5 V || +/- 11.4 V 1...5 V || 0...30 mA +/- 20 mA || 0...30 mA 0...20 mA || 0...30 mA 4...20 mA || 0...30 mA +/- 5 V
- Measurement Error
- 0.15 % of full scale +/- 20 mA 25 °C || 0.15 % of full scale 0...20 mA 25 °C || 0.15 % of full scale 4...20 mA 25 °C || 0.075 % of full scale +/- 10 V 25 °C || 0.075 % of full scale 0...10 V 25 °C || 0.075 % of full scale 0...5 V 25 °C || 0.075 % of full scale 1...5 V 25 °C || 0.075 % of full scale +/- 5 V 25 °C || <= 0.2 % of full scale +/- 10 V - 25...70 °C || <= 0.2 % of full scale +/- 5 V - 25...70 °C || <= 0.2 % of full scale 0...10 V - 25...70 °C || <= 0.2 % of full scale 0...5 V - 25...70 °C || <= 0.2 % of full scale 1...5 V - 25...70 °C || <= 0.55 % of full scale +/- 20 mA - 25...70 °C || <= 0.55 % of full scale 0...20 mA - 25...70 °C || <= 0.55 % of full scale 4...20 mA - 25...70 °C
- Measurement Resolution
- 0.36 mV +/- 10 V || 0.36 mV 0...10 V || 0.36 mV 0...5 V || 0.36 mV 1...5 V || 0.36 mV +/- 5 V || 1.4 µA +/- 20 mA || 1.4 µA 0...20 mA || 1.4 µA 4...20 mA
- Minimum Crosstalk Attenuation
- 80 dB
- Mtbf Reliability
- 900000 H
- Net Weight
- 0.175 kg
- Nominal Read Cycle Time
- 9 ms for 8 channels
- Operating Altitude
- 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
- Permitted Overload On Inputs
- +/- 30 mA 0...20 mA || +/- 30 mA 4...20 mA || +/- 30 V +/- 10 V || +/- 30 V +/- 5 V || +/- 30 V 0...10 V || +/- 30 V 0...5 V || +/- 30 V 1...5 V || +/- 30 mA +/- 20 mA
- Power Consumption In W
- 1.06 W 24 V DC typical || 1.50 W 24 V DC maximum || 0.32 W 3.3 V DC typical || 0.48 W 3.3 V DC maximum
- Precision Of Internal Conversion Resistor
- 0.1 % - 15 ppm/°C
- Status Led
- 1 LED (Green) RUN || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) ERR || 1 LED (Red) I/O
- Temperature Drift
- 30 ppm/°C +/- 10 V || 30 ppm/°C +/- 5 V || 30 ppm/°C 0...10 V || 30 ppm/°C 0...5 V || 30 ppm/°C 1...5 V || 50 ppm/°C +/- 20 mA || 50 ppm/°C 0...20 mA || 50 ppm/°C 4...20 mA
- Type Of Filter
- first order digital filtering
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Environmental Characteristic
- gas resistant class Gx || gas resistant class 3C4 || dust resistant class 3S4 || sand resistant class 3S4 || salt resistant level 2 || mold growth resistant class 3B2 || fungal spore resistant class 3B2 || hazardous location
- Ip Degree Of Protection
- IP20
- Product Certifications
- CE || RCM || CSA || EAC || Merchant Navy || UL || ATEX || IEC-Ex
- Protective Treatment
- conformal coating
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Shock Resistance
- 30 gn
- Standards
- EN/IEC 61010-2-201 || EN/IEC 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
- Vibration Resistance
- 3 gn
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Analogue Input Number
- 8
- Analogue Input Type
- current +/- 20 mA || current 0...20 mA || current 4...20 mA || voltage +/- 10 V || voltage +/- 5 V || voltage 0...10 V || voltage 0...5 V || voltage 1...5 V
- Electrical Connection
- 28 ways 1 connector
- Input Level
- high level
- Input Output Isolation
- isolated
- Product Or Component Type
- analog input module
- Product Specific Application
- for severe environments
- Range Of Product
- Modicon X80
