Schneider Electric BMXAMI0810
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

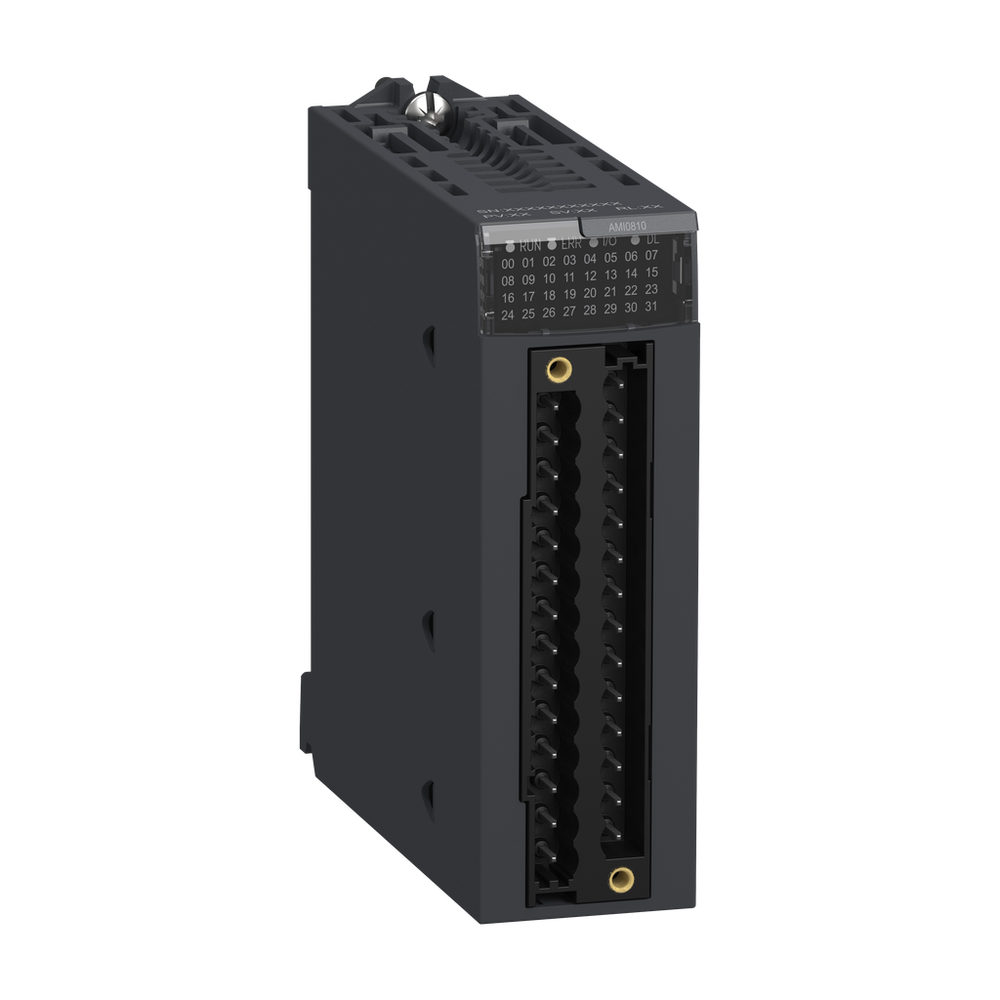

This high level analog input module is part of the Modicon X80 modules. It has 8 isolated analog inputs (15 bits + sign). This module is connected via 28-way removable terminal block. The module offers different ranges of voltage or current for each of the inputs depending on configuration choice. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics.analog isolated high level input module, Modicon X80, 8 inputs, 0 to 20mA, 4 to 20mA, 10V positive or negative
Schneider Electric BMXAMI0810 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analog/Digital Conversion
- 16 bits
- Analogue Input Resolution
- 15 bits + sign
- Common Mode Rejection
- 80 dB
- Current Consumption
- 150 mA 3.3 V DC || 54 mA 24 V DC
- Digital Value Format
- 32768 to + 32767 in maximum user scale || +/- 10000 by default
- Fast Read Cycle Time
- 1 ms + 1 ms x number of channels used
- Input Impedance
- 10 MOhm in voltage mode || 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode
- Isolation Voltage
- 300 V DC between channels || 1400 V DC between channels and ground || 1400 V DC between channels and bus
- Maximum Conversion Value
- +/- 11.4 V +/- 10 V || +/- 11.4 V 0...10 V || +/- 11.4 V 0...5 V || +/- 11.4 V 1...5 V || 0...30 mA +/- 20 mA || 0...30 mA 0...20 mA || 0...30 mA 4...20 mA || 0...30 mA +/- 5 V
- Measurement Error
- <= 0.1 % of full scale +/- 10 V 0...60 °C || <= 0.1 % of full scale +/- 5 V 0...60 °C || <= 0.1 % of full scale 0...10 V 0...60 °C || <= 0.1 % of full scale 0...5 V 0...60 °C || <= 0.1 % of full scale 1...5 V 0...60 °C || <= 0.3 % of full scale +/- 20 mA 0...60 °C || <= 0.3 % of full scale 0...20 mA 0...60 °C || <= 0.3 % of full scale 4...20 mA 0...60 °C || 0.15 % of full scale +/- 20 mA 25 °C || 0.15 % of full scale 0...20 mA 25 °C || 0.15 % of full scale 4...20 mA 25 °C || 0.075 % of full scale +/- 10 V 25 °C || 0.075 % of full scale 0...10 V 25 °C || 0.075 % of full scale 0...5 V 25 °C || 0.075 % of full scale 1...5 V 25 °C || 0.075 % of full scale +/- 5 V 25 °C
- Measurement Resolution
- 0.36 mV +/- 10 V || 0.36 mV 0...10 V || 0.36 mV 0...5 V || 0.36 mV 1...5 V || 0.36 mV +/- 5 V || 1.4 µA +/- 20 mA || 1.4 µA 0...20 mA || 1.4 µA 4...20 mA
- Minimum Crosstalk Attenuation
- 80 dB
- Mtbf Reliability
- 900000 H
- Net Weight
- 0.165 kg
- Nominal Read Cycle Time
- 9 ms for 8 channels
- Operating Altitude
- 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
- Permitted Overload On Inputs
- +/- 30 mA 0...20 mA || +/- 30 mA 4...20 mA || +/- 30 V +/- 10 V || +/- 30 V +/- 5 V || +/- 30 V 0...10 V || +/- 30 V 0...5 V || +/- 30 V 1...5 V || +/- 30 mA +/- 20 mA
- Power Consumption In W
- 1.06 W 24 V DC typical || 1.50 W 24 V DC maximum || 0.32 W 3.3 V DC typical || 0.48 W 3.3 V DC maximum
- Precision Of Internal Conversion Resistor
- 0.1 % - 15 ppm/°C
- Status Led
- 1 LED (Green) RUN || 1 LED per channel (Green) channel diagnostic || 1 LED (Red) ERR || 1 LED (Red) I/O
- Temperature Drift
- 30 ppm/°C +/- 10 V || 30 ppm/°C +/- 5 V || 30 ppm/°C 0...10 V || 30 ppm/°C 0...5 V || 30 ppm/°C 1...5 V || 50 ppm/°C +/- 20 mA || 50 ppm/°C 0...20 mA || 50 ppm/°C 4...20 mA
- Type Of Filter
- first order digital filtering
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Ip Degree Of Protection
- IP20
- Product Certifications
- CE || RCM || CSA || EAC || Merchant Navy || UL
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Shock Resistance
- 30 gn
- Standards
- EN/IEC 61010-2-201 || EN/IEC 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
- Vibration Resistance
- 3 gn
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Analogue Input Number
- 8
- Analogue Input Type
- current +/- 20 mA || current 0...20 mA || current 4...20 mA || voltage +/- 10 V || voltage +/- 5 V || voltage 0...10 V || voltage 0...5 V || voltage 1...5 V
- Electrical Connection
- 28 ways 1 connector
- Input Level
- high level
- Input Output Isolation
- isolated
- Product Or Component Type
- analog input module
- Range Of Product
- Modicon X80
