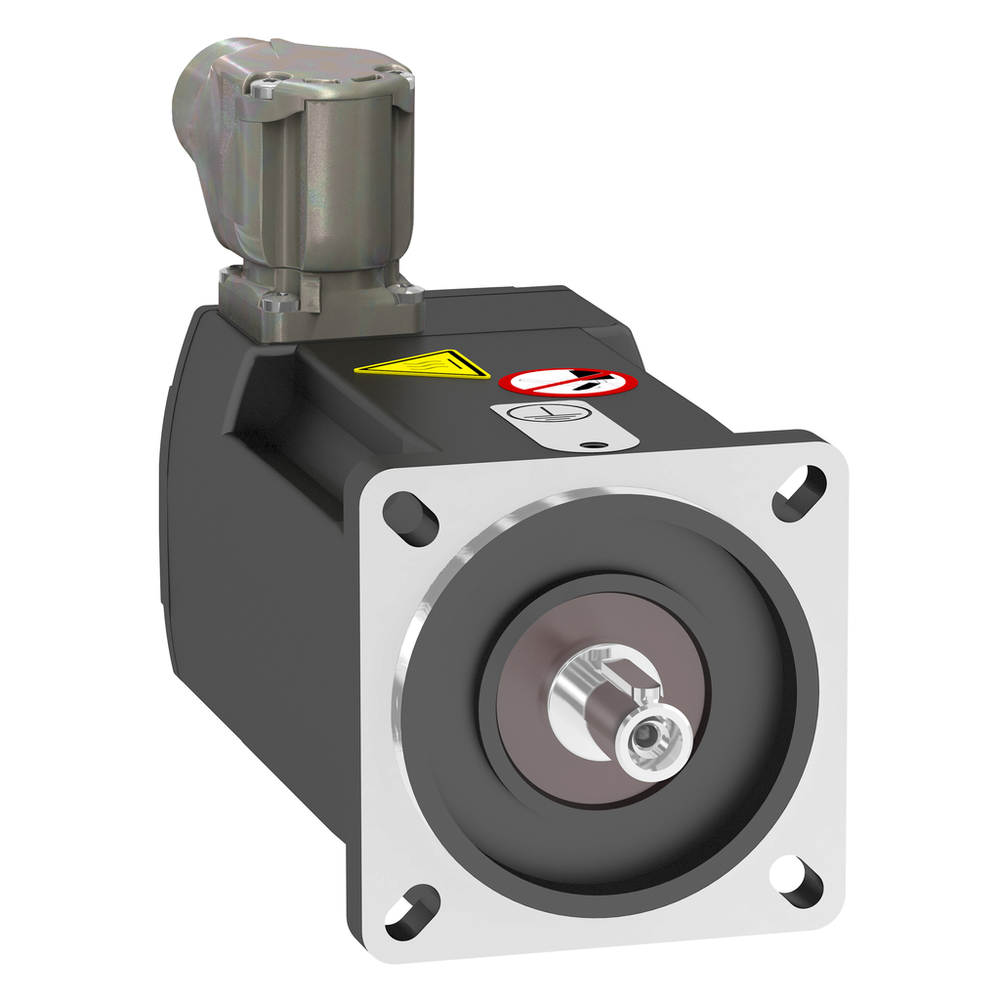

Schneider Electric BMP0701R3NA2A
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This BMP synchronous motor has a power rating of 0.37kW and works at a rated supply voltage 230V. It is designed with latest magnetic materials and an optimized design, result in shorter length at a comparable torque. It has maximum mechanical speed of 3600 rpm and its protection index is IP65. It is compatible with Altivar 32 and Altivar machine ATV320 variable speed drives. It is also RoHS compliant.synchronous motor - BMP - 230 VAC - 0.37 kW - IP65 - IEC
Schneider Electric BMP0701R3NA2A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Centring Collar Depth
- 2.5 mm
- Centring Collar Diameter
- 60 mm
- Circle Diameter Of The Mounting Holes
- 75-82 mm
- Key Width
- 4 mm
- Length
- 122 mm
- Maximum Axial Force Fa
- 0.2 x Fr
- Maximum Current Irms
- 5 A ATV32 0.37 kW 200 V single phase || 5 A ATV320 0.37 kW 200 V single phase
- Maximum Operating Frequency
- 300 Hz ATV32 0.37 kW 200 V single phase || 300 Hz ATV320 0.37 kW 200 V single phase
- Maximum Radial Force Fr
- 660 N 1000 rpm || 520 N 2000 rpm || 460 N 3000 rpm || 410 N 4000 rpm
- Minimum Operating Frequency
- 43 Hz ATV32 0.37 kW 200 V single phase || 43 Hz ATV320 0.37 kW 200 V single phase
- Motor Flange Size
- 70 mm
- Mounting Holes Diameter
- 5.5 mm
- Net Weight
- 1.6 kg
- Nominal Operating Frequency
- 250 Hz ATV32 0.37 kW 200 V single phase || 250 Hz ATV320 0.37 kW 200 V single phase
- Number Of Motor Poles
- 5
- Number Of Motor Stacks
- 1
- Number Of Mounting Holes
- 4
- Phase
- single phase
- Range Compatibility
- Altivar Machine ATV320 || Altivar 32
- Rotor Inertia
- 0.59 kg.cm²
- Shaft Diameter
- 11 mm
- Shaft Length
- 23 mm
- Stator Inductance
- 12.15 mH for q-axis winding 40 °C || 12.15 mH for d-axis winding 40 °C
- Stator Resistance
- 5.37 Ohm 40 °C
- Torque Constant
- 0.81 N.m/A 40 °C
- Type Of Cooling
- natural convection
- [Us] Rated Supply Voltage
- 230 V
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- BMP
- Electrical Connection
- rotatable right-angled connector
- Holding Brake
- without
- Ip Degree Of Protection
- IP65 standard || IP67 with IP67 kit
- Maximum Mechanical Speed
- 3600 rpm
- Mounting Support
- international standard flange
- Nominal Output Power
- 370 W ATV32 0.37 kW 200 V single phase || 370 W ATV320 0.37 kW 200 V single phase
- Nominal Speed
- 3000 rpm ATV32 0.37 kW 200 V single phase || 3000 rpm ATV320 0.37 kW 200 V single phase
- Nominal Torque
- 1.18 N.m ATV32 0.37 kW 200 V single phase || 1.18 N.m ATV320 0.37 kW 200 V single phase
- Product Compatibility
- variable speed drive ATV32 0.37 kW 200 V single phase || variable speed drive ATV320 0.37 kW 200...240 V single phase
- Product Or Component Type
- synchronous motor
- Shaft End
- keyed
