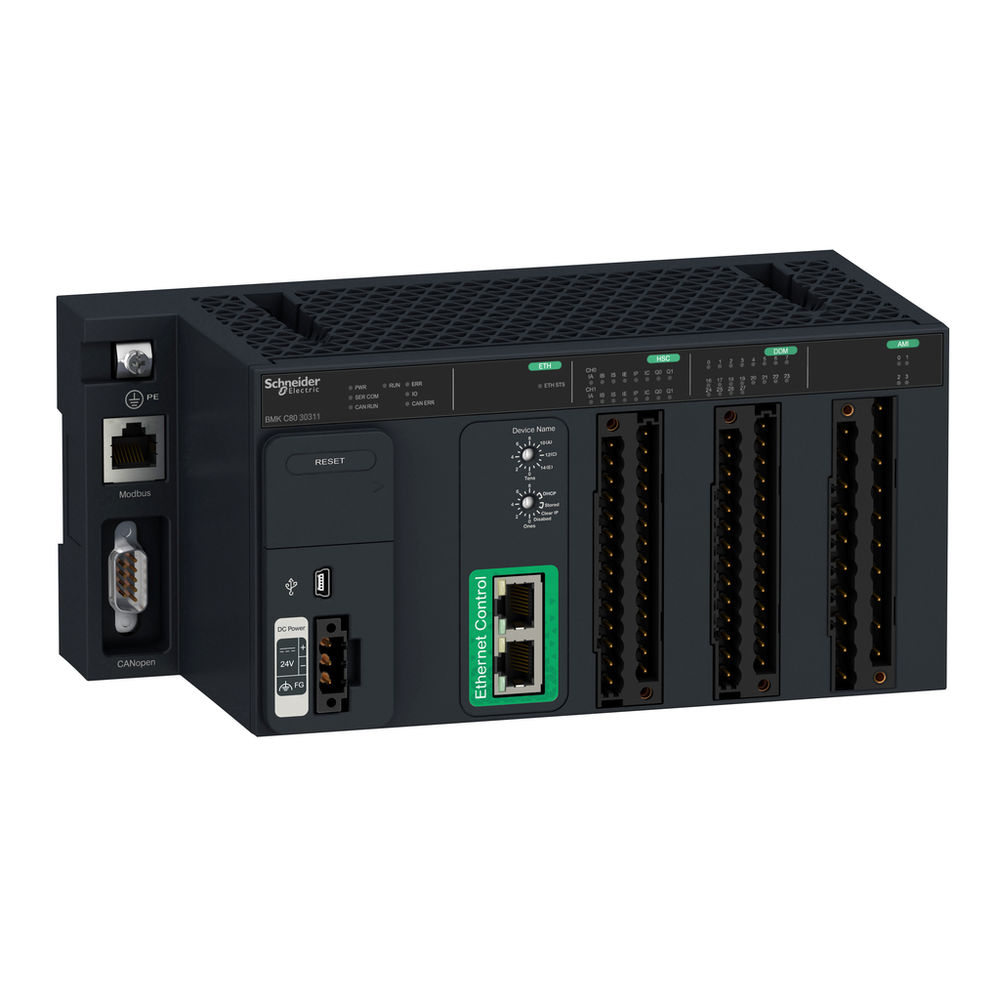

Schneider Electric BMKC8030311

Complementary

• Analogue Input Number
  • 4
• Analogue Input Resolution
  • 16 bits
• Analogue Input Type
  • current - 20...20 mA || voltage - 10...10 V
• Bus Length
  • 0-10 m serial link non isolated || 0-15 m serial link non isolated || 0-1000 m serial link isolated with external isolation tap || 0-20 m 1 Mbit/s CANopen || 0-2500 m 20 kbit/s CANopen || 0-100 m Ethernet
• Communication Port Protocol
  • 1 non isolated serial link RJ45 RS485/RS232 0.3...19.2 kbit/s 247 || 1 CANopen SUB-D 9 20 kbit/s...1 Mbit/s 16 || 2 Ethernet RJ45 10/100 Mbit/s
• Communication Service
  • read/write variables Modbus || diagnostics Modbus || send/receive character string character mode || Process Data Object (PDO) CANopen || Service Data Object (SDO) CANopen || FDR client Ethernet || SNMP Ethernet || RSTP support Ethernet
• Counter Functions
  • count events || frequency meter || ratio count || one shot counting || measure time periods || freelarge counting || loop (modulo) counting
• Current Consumption
  • <= 700 mA
• Discrete Input Current
  • 2.4 mA
• Discrete Input Number
  • 8 positive logic (sink)
• Discrete Input Type
  • type 3
• Discrete Input Voltage
  • 19...30 V DC
• Discrete Output Current
  • 2 A per output || 10 A per module
• Discrete Output Number
  • 12 positive
• Discrete Output Voltage
  • 19...30 V DC
• Execution Time Per Instruction
  • 0.06 µs Boolean || 0.08 µs mixed
• Fast Read Cycle Time
  • 1.3 ms + 1.3 ms x number of channels used
• Function Available
  • memory retention without battery
• Input Compatibility
  • 24-24 V 2-wire/3-wire proximity sensor || incremental encoder with push-pull outputs, 10...30 V totem pole || 24-24 V 2/3-wire sensor PNP
• Integrated Connection Type
  • USB port mini B USB
• Isolation Voltage
  • 1500 V DC
• Logic Input
  • positive (sink)
• Maximum Counting Frequency
  • 60000 Hz
• Memory Description
  • internal RAM 3840 kB || internal RAM 128 kB data || internal RAM 3590 kB program constants and symbols
• Nominal Output Current
  • 0.5 A per output
• Nominal Read Cycle Time
  • 6.5 ms for 4 channels
• Number Of Counter
  • 2
• Number Of Inputs
  • 3-3 auxiliary || 3-3 high speed
• Number Of Outputs
  • 2 positive
• Port Ethernet
  • 10BASE-T/100BASE-TX
• Product Compatibility
  • BMXFTB28... terminal block high-speed counter module || BMXFTB20... terminal block analog input module || BMXFTB28... terminal block discrete I/O module
• Protection Type
  • overload protection output || short-circuit protection output
• Realtime Clock
  • with
• Sensor Power Supply
  • 19-30 V DC
• [Us] Rated Supply Voltage
  • 24 V - 15...20 % DC

Environment

• Ambient Air Temperature For Operation
  • -25-70 °C
• Ambient Air Temperature For Storage
  • -40-85 °C
• Marking
  • CE
• Product Certifications
  • RCM
• Relative Humidity
  • 0-95 %
• Standards
  • UL 508 || CSA C22.2 No 213 Class I Division 2 Group C || CSA C22.2 No 142 || IEC 61131-2 || CSA C22.2 No 213 Class I Division 2 Group A || CSA C22.2 No 213 Class I Division 2 Group D || CSA C22.2 No 213 Class I Division 2 Group B
• Vibration Resistance
  • 3 gn

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Product Or Component Type
  • processor module
• Product Specific Application
  • thermo solar - tower power
• Range Of Product
  • Modicon MC80
