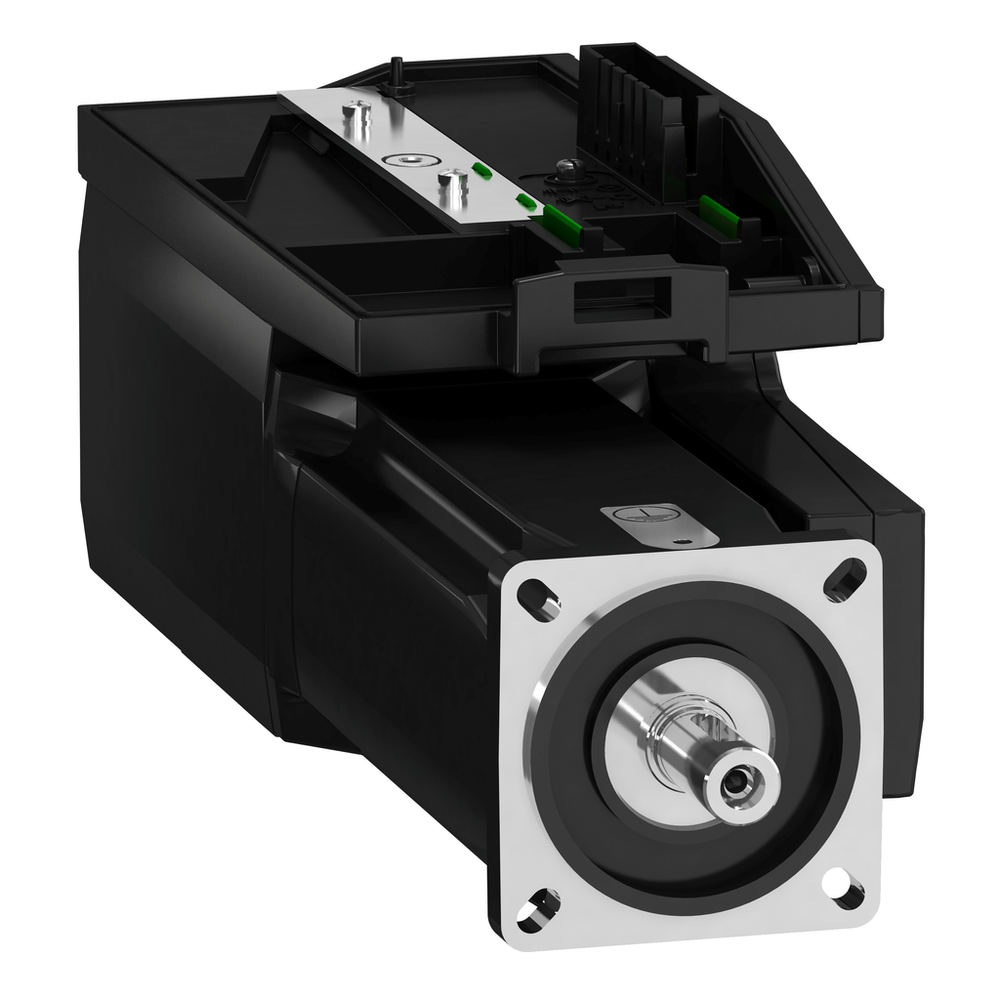

Schneider Electric BMI0702P16A
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
servo motor BMI 3-phase - keyed IP54 single turn - 32768 p/t
Schneider Electric BMI0702P16A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Back Emf Constant
- 77.18 V/krpm 20 °C
- Centring Collar Depth
- 2.5 mm
- Centring Collar Diameter
- 60 mm
- Circle Diameter Of The Mounting Holes
- 75-82 mm
- Continuous Output Current
- 2 A 8 kHz
- Continuous Stall Current
- 2 A
- Continuous Stall Torque
- 2.48 N.m 208...480 V three phase
- Distance Shaft Shoulder-Flange
- 2.5 mm
- Electrical Connection
- printed circuit board connector
- Emc Filter
- integrated
- Feedback Type
- absolute single turn SinCos Hiperface
- Holding Brake
- without
- Key Width
- 4 mm
- Length
- 268 mm
- Maximum Axial Force Fa
- 0.2 x Fr
- Maximum Current Irms
- 9.6 A 208 V, three phase || 9.6 A 400 V, three phase || 9.6 A 480 V, three phase
- Maximum Mechanical Speed
- 8000 rpm
- Maximum Radial Force Fr
- 710 N 1000 rpm || 560 N 2000 rpm || 490 N 3000 rpm || 450 N 4000 rpm || 410 N 5000 rpm || 390 N 6000 rpm
- Motor Flange Size
- 70 mm
- Mounting Holes Diameter
- 5.5 mm
- Mounting Support
- international standard flange
- Network Frequency Limits
- 47.5-63 Hz
- Nominal Output Power
- 400 W 208 V three phase || 800 W 400 V three phase || 900 W 480 V three phase
- Nominal Speed
- 1800 rpm 208 V three phase || 3600 rpm 400 V three phase || 4400 rpm 480 V three phase
- Nominal Torque
- 2.4 N.m 208 V three phase || 2.2 N.m 400 V three phase || 2 N.m 480 V three phase
- Number Of Motor Poles
- 10
- Number Of Motor Stacks
- 2
- Number Of Mounting Holes
- 4
- Output Current 3S Peak
- 6 A 400 V 3 s
- Peak Stall Torque
- 6.8 N.m 208 V three phase || 6.8 N.m 400 V three phase || 6.8 N.m 480 V three phase
- Phase
- three phase
- Product Compatibility
- drive control unit LXM32i CANopen || drive control unit LXM32i EtherCAT
- Rotor Inertia
- 1.13 kg.cm²
- Second Shaft
- without second shaft end
- Shaft Diameter
- 11 mm
- Shaft End
- keyed
- Shaft Length
- 23 mm
- Speed Feedback Resolution
- 32768 points/turn
- Stator Electrical Time Constant
- 2.9 ms 20 °C
- Stator Inductance
- 25.75 mH 20 °C
- Stator Resistance
- 8.89 Ohm 20 °C
- Supply Frequency
- 50/60 Hz - 5...5 %
- Supply Voltage Limits
- 208-480 V
- Torque Constant
- 1.15 N.m/A 20 °C
- Type Of Cooling
- natural convection
- [Us] Rated Supply Voltage
- 208...480 V - 15...10 %
Contractual warranty
- Warranty
- 18 months
Environment
- Ip Degree Of Protection
- shaft IP54 || housing IP65
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1312017EN
- Environmental Disclosure
- ENVPEP1312017EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- BMI
- Product Or Component Type
- servo motor with power stage
- Range Compatibility
- Lexium 32i
