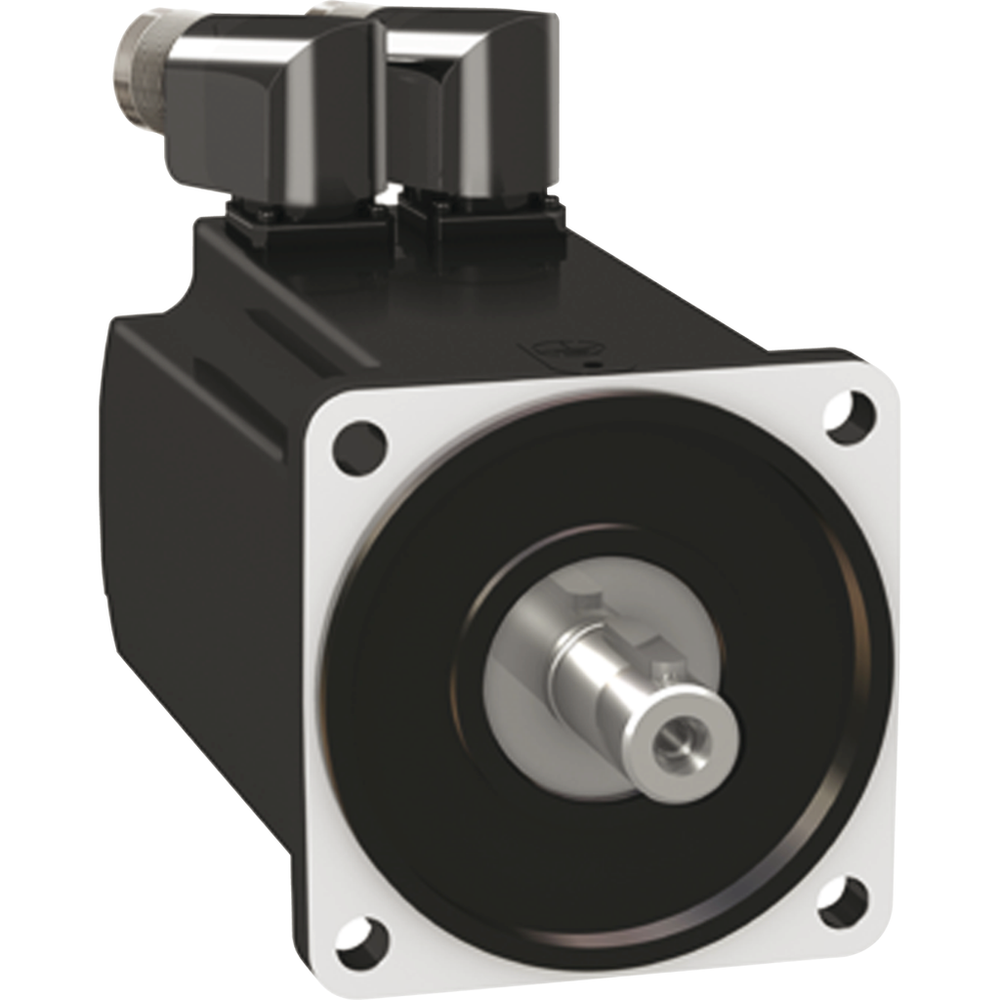

Schneider Electric BMH1003T32A2A
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
servo motor BMH, Lexium 32, 8.2Nm, 6000rpm, keyed shaft, without brake, IP65, IP67, 128 multiturn encoder
Schneider Electric BMH1003T32A2A is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Back Emf Constant
- 54.8 V/krpm 120 °C
- Centring Collar Depth
- 3.5 mm
- Centring Collar Diameter
- 95 mm
- Circle Diameter Of The Mounting Holes
- 115 mm
- Continuous Power
- 2.62 W
- Continuous Stall Current
- 10 A
- Feedback Type
- multiturn SinCos Hiperface
- Key Width
- 30 mm
- Length
- 192.6 mm
- Maximum Axial Force Fa
- 0.2 x Fr
- Maximum Current Irms
- 30 A LXM32.D30M2
- Maximum Permanent Current
- 33.85 A
- Maximum Radial Force Fr
- 1050 N 1000 rpm || 830 N 2000 rpm || 730 N 3000 rpm || 660 N 4000 rpm || 610 N 5000 rpm
- Motor Flange Size
- 100 mm
- Mounting Holes Diameter
- 9 mm
- Net Weight
- 6.5 kg
- Number Of Motor Poles
- 10
- Number Of Motor Stacks
- 3
- Number Of Mounting Holes
- 4
- Phase
- three phase
- Range Compatibility
- Lexium 32
- Rotor Inertia
- 9.37 kg.cm²
- Second Shaft
- without second shaft end
- Shaft Diameter
- 19 mm
- Shaft Length
- 40 mm
- Stator Electrical Time Constant
- 6.4 ms 20 °C
- Stator Inductance
- 3 mH 20 °C
- Stator Resistance
- 0.47 Ohm 20 °C
- Torque Constant
- 0.851 N.m/A 120 °C
- Type Of Cooling
- natural convection
- [Us] Rated Supply Voltage
- 240 V
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- null
- Environmental Disclosure
- ENVPEP111002EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Continuous Stall Torque
- 8.2 N.m LXM32.D30M2 10 A, 230 V, single phase
- Device Short Name
- BMH
- Electrical Connection
- rotatable right-angled connectors
- Holding Brake
- without
- Ip Degree Of Protection
- IP65 standard || IP67 with IP67 kit
- Maximum Mechanical Speed
- 6000 rpm
- Mounting Support
- international standard flange
- Nominal Output Power
- 1450 W LXM32.D30M2 10 A, 230 V, single phase
- Nominal Speed
- 2500 rpm LXM32.D30M2 10 A, 230 V, single phase
- Nominal Torque
- 5.6 N.m LXM32.D30M2 10 A, 230 V, single phase
- Peak Stall Torque
- 22.8 N.m LXM32.D30M2 10 A, 230 V, single phase
- Product Compatibility
- LXM32.D30M2 230 V single phase
- Product Or Component Type
- servo motor
- Shaft End
- keyed
- Speed Feedback Resolution
- 131072 points/turn x 4096 turns
