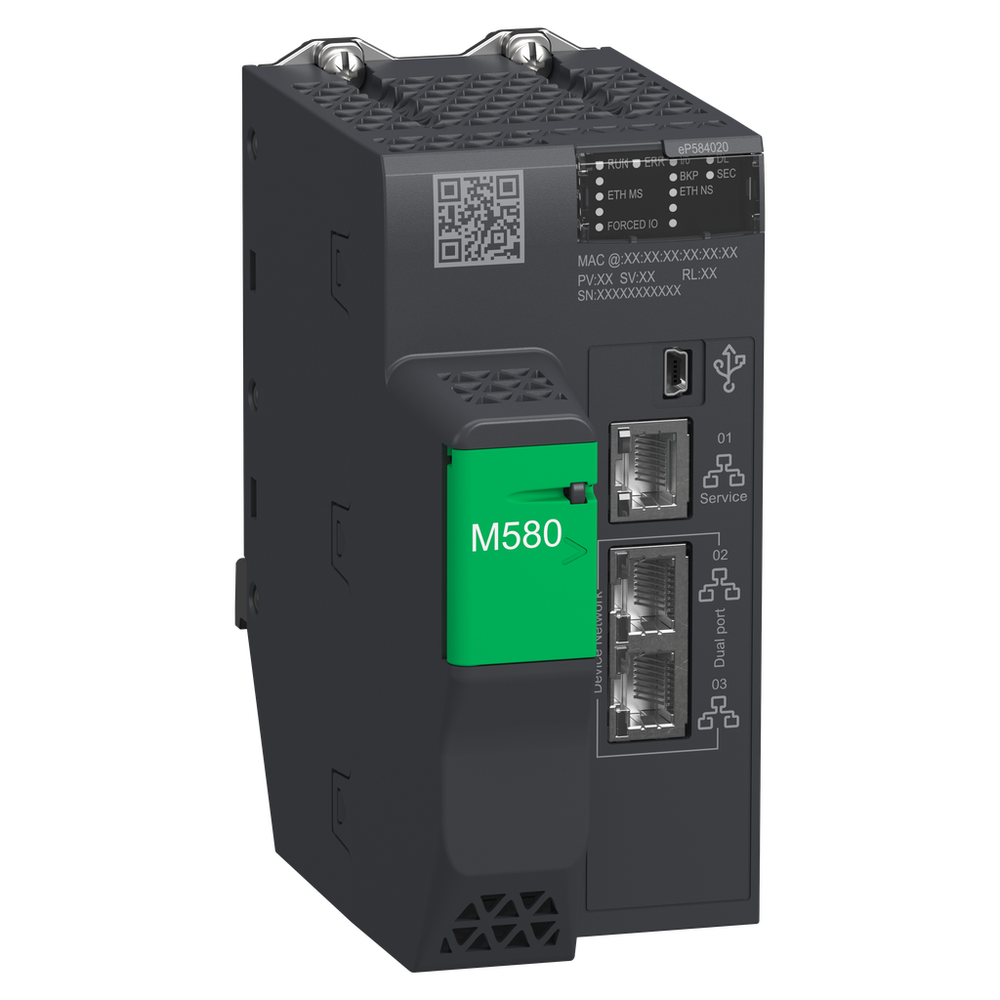

Schneider Electric BMEP584020
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This processor module offers a maximum of 8 rack configuration and 144 application specific channels. It is a processor module with a current consumption of 295mA at 24V DC. It supports 4096 discrete, 1024 analogue local I/O channels and 128 distributed equipment. It is furnished with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for integrated connections. It offers 600000 hours of MTBF. It has an integrated RAM of 16MB for program, 2048kb for data, 10kb for system memory and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, UL, RCM, CSA, EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.standalone processor, Modicon M580, 16MB, 125 Ethernet devices, 8 local IO racks of 4096 digital, 1024 analog
Schneider Electric BMEP584020 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue I/O Processor Capacity
- 1024 I/O
- Application Specific I/O
- HART || accurate time stamping || SSI encoder || serial link || motion control || counter
- Application Structure
- 1 cyclic/periodic master task || 2 auxiliary tasks || 1 periodic fast task || 128 event tasks
- Checks
- process control
- Communication Module Processor Capacity
- 8 AS-Interface module || 4 Ethernet communication module
- Communication Service
- DIO scanner
- Control Channels
- programmable loops
- Current Consumption
- 295 mA 24 V DC
- Discrete I/O Processor Capacity
- 4096 I/O
- Integrated Connection Type
- 1 Ethernet TCP/IP service port || 2 Ethernet TCP/IP device network || USB type mini B
- Marking
- CE
- Memory Description
- expandable flash, 4 GB data storage || integrated RAM, 10 kB system memory || integrated RAM, 16 MB program || integrated RAM, 2048 kB data
- Mtbf Reliability
- 775000 H
- Number Of Application Specific Channel
- 144
- Number Of Distributed Equipment
- 128
- Number Of Instructions Per Ms
- 30 Kinst/ms 65 % Boolean + 35 % fixed arithmetic || 40 Kinst/ms 100 % Boolean
- Number Of Racks
- 8
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Environmental Characteristic
- hazardous location class I division 2
- Ip Degree Of Protection
- IP20
- Net Weight
- 0.849 kg
- Operating Altitude
- 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
- Product Certifications
- CE || UL || CSA || RCM || EAC || Merchant Navy
- Relative Humidity
- 5-95 % 55-55 °C without condensation
- Shock Resistance
- 30 gn
- Standards
- EN 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G
- Status Led
- 1 LED (Green) processor running (RUN) || 1 LED (Red) processor or system fault (ERR) || 1 LED (Red) I/O module fault (I/O) || 1 LED (Green) download in progress (DL) || 1 LED (Red) memory card or CPU flash fault (BACKUP) || 1 LED (green/red) ETH MS (Ethernet port configuration status) || 1 LED (green/red) Eth NS (Ethernet network status)
- Supply
- internal power supply via rack
- Vibration Resistance
- 3 gn
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1312016EN
- Environmental Disclosure
- ENVPEP1312016EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Or Component Type
- processor module
- Range Of Product
- Modicon M580
