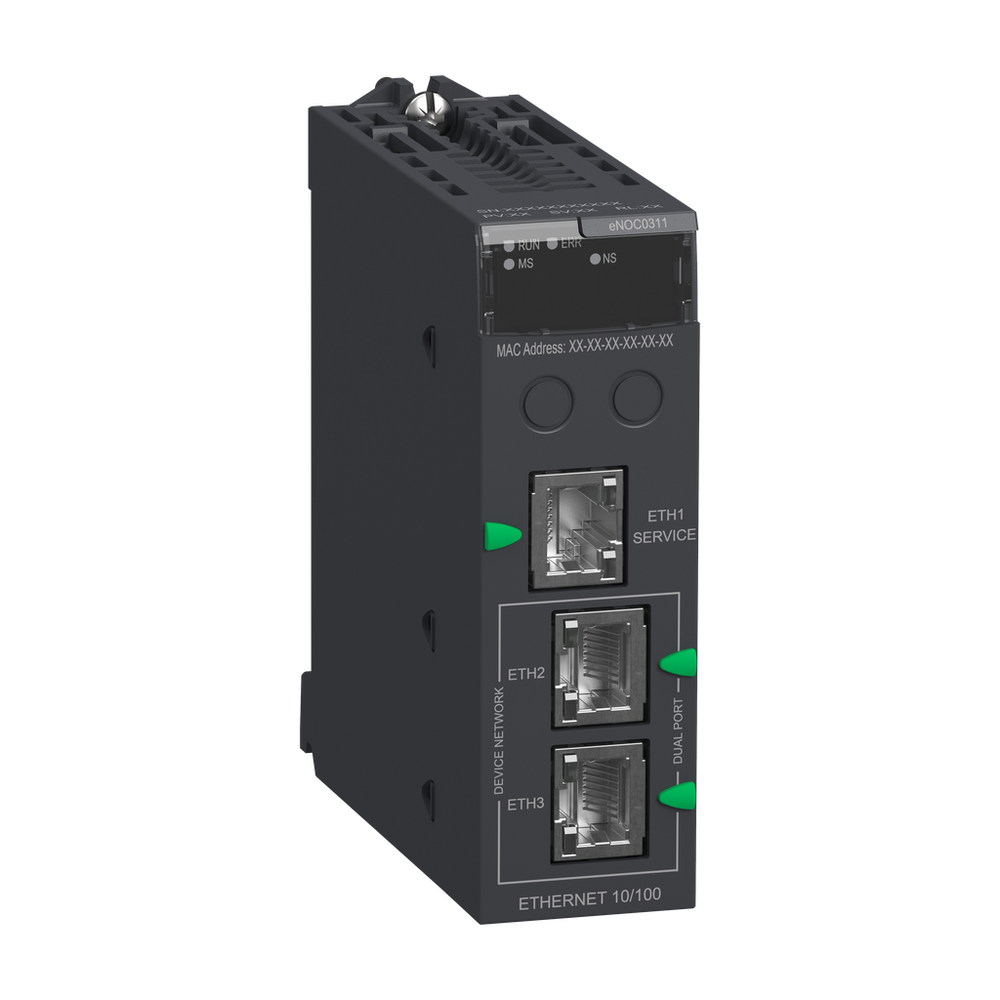

Schneider Electric BMENOC0311
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This communication module has 3 FactoryCast ports. It is integrated with 3 Ethernet RJ45 connectors. Communication services are bandwidth management, FDR server, Modbus TCP I/O scanner and messaging, EtherNet/IP I/O scanner and messaging, embedded 4-port switch, RSTP support, SNMP network administrator, embedded multiport switch etc. It is a communication module with a current consumption of 555mA, works with internal power supply. It is an IP20 rated product. It weighs 0.2kg. It is suitable for medium to large process applications. This product is certified by CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This connection sub-base is compatible with BMEXBPxxx - Ethernet + X-bus rack. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.network module, Modicon M580, FactoryCast Ethernet
Schneider Electric BMENOC0311 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Communication Service
- bandwidth management || FDR server || SNMP network administrator || Modbus TCP I/O Scanner and Messaging || Ethernet/IP I/O Scanner and Messaging || RSTP support || port mirroring || embedded multiport switch
- Current Consumption
- 900 mA 3.3 V DC for product version >= 13) || 1800 mA 3.3 V DC for product version < 13)
- Integrated Connection Type
- 3 Ethernet RJ45 10/100 Mbit/s double shielded twisted pair
- Marking
- CE
- Module Format
- standard
- Net Weight
- 0.2 kg
- Port Ethernet
- 10BASE-T/100BASE-TX
- Supply
- internal power supply via rack
- Transmission Support Medium
- Ethernet backplane
- Web Server
- advanced
- Web Services
- FactoryCast configurable
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Ip Degree Of Protection
- IP20
- Local Signalling
- for processor running (RUN) 1 LED (green) || for processor or system fault (ERR) 1 LED (red) || for ETH MS (Ethernet port configuration status) 1 LED (green/red) || for Eth NS (Ethernet network status) 1 LED (green/red)
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Concept
- Transparent Ready
- Product Compatibility
- BMEXBP... - Ethernet + X-bus rack
- Product Or Component Type
- communication module
- Range Of Product
- Modicon M580
