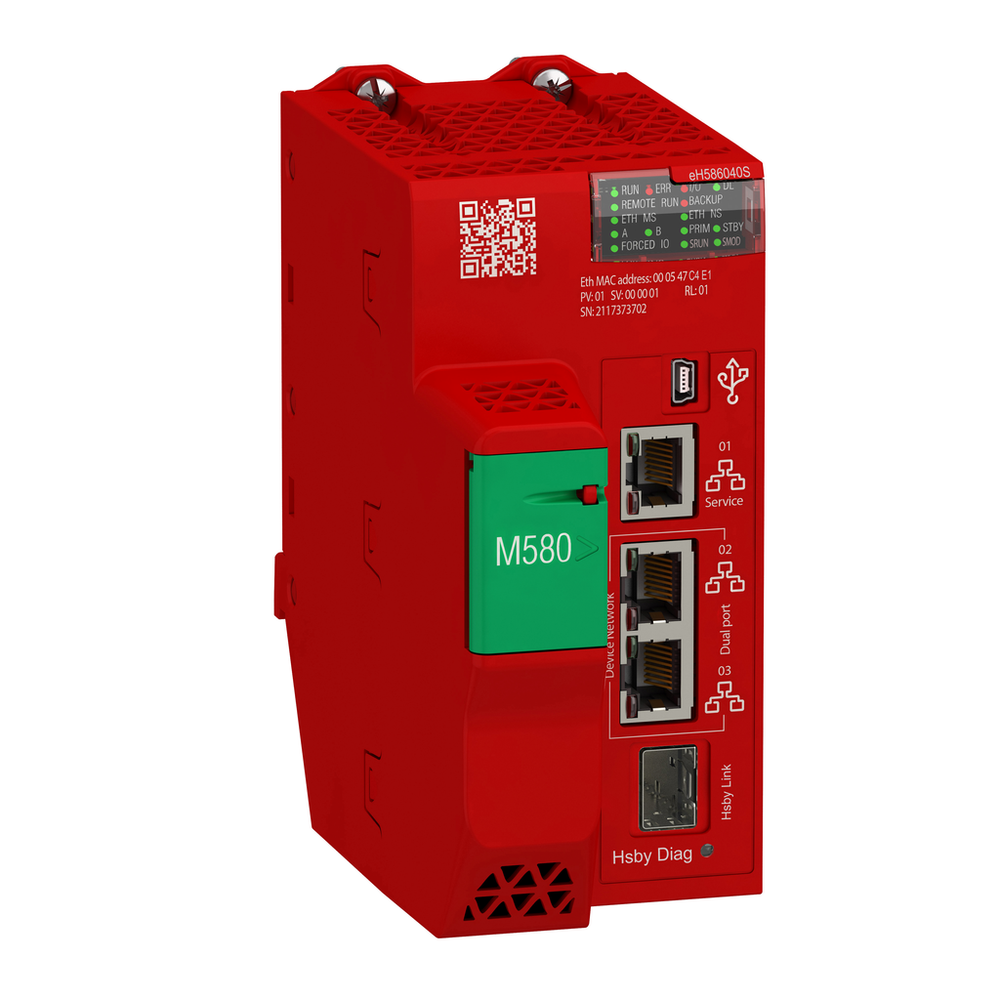

Schneider Electric BMEH586040S

Complementary

• Application Specific I/O
  • counter || motion control || SSI encoder || accurate time stamping || serial link || HART
• Application Structure
  • 1 master task || 1 periodic fast task || 1 periodic safe task
• Checks
  • process control || safety control
• Communication Module Processor Capacity
  • 4.0 Ethernet communication module || 16.0 AS-Interface module
• Communication Service
  • DIO scanner || RIO scanner
• Control Channels
  • programmable loops
• Current Consumption
  • 360 mA 24 V DC
• Integrated Connection Type
  • 1 Ethernet TCP/IP service port || 2 Ethernet TCP/IP device network || USB type mini B || 1 Ethernet HSBY port
• Marking
  • CE
• Memory Description
  • expandable flash, 4 GB data storage || integrated RAM, 10 kB system memory || integrated RAM, 64 MB program and data || integrated RAM, 16 MB program safety || integrated RAM, 1024 kB data safety
• Mtbf Reliability
  • 650000 H
• Number Of Distributed Equipment
  • 61.0
• Number Of Instructions Per Ms
  • 60 Kinst/ms 100 % Boolean || 40 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
• Number Of Racks
  • 1
• Number Of Remote I/O Station
  • 31 - 2 X80 and Quantum drops

Environment

• Ambient Air Temperature For Operation
  • -25-60 °C
• Ambient Air Temperature For Storage
  • -40-85 °C
• Directives
  • 2014/30/EU - electromagnetic compatibility || 2006/42/EC - machinery || 2014/34/EU - ATEX directive
• Environmental Characteristic
  • hazardous location class I division 2 || gas resistant class Gx ISA S71.04 || gas resistant class 3C4 IEC 60721-3-3 || dust resistant class 3S4 IEC 60721-3-3 || sand resistant class 3S4 IEC 60721-3-3 || salt resistant level 2 IEC 68252 || mold growth resistant class 3B2 IEC 60721-3-3 || fungal spore resistant class 3B2 IEC 60721-3-3
• Ip Degree Of Protection
  • IP20
• Net Weight
  • 0.849 kg
• Operating Altitude
  • 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
• Product Certifications
  • CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22 || TÜV
• Protective Treatment
  • conformal coating
• Relative Humidity
  • 5-95 % 55-55 °C without condensation
• Safety Level
  • SIL 3 IEC 61508 || SIL 3 IEC 61511 || SILCL 3 IEC 62061 || SILCL 3 ISO 13849-1 category 4 || SIL 4 EN 50126 || SIL 4 EN 50128 || SIL 4 EN 50129
• Shock Resistance
  • 15 gn
• Standards
  • EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G || EN/IEC 60079-0 || EN 50155 || EN 50121-3-2 || EN 50121-4 || EN 50121-5 || EN 45545-2 || IEC 60571 || IEC 62236-3-2 || IEC 62234-4 || IEC 62234-5
• Status Led
  • 1 LED (Green) processor running (RUN) || 1 LED (Red) processor or system fault (ERR) || 1 LED (Red) I/O module fault (I/O) || 1 LED (Green) download in progress (DL) || 1 LED (Red) memory card or CPU flash fault (BACKUP) || 1 LED (green/red) ETH MS (Ethernet port configuration status) || 1 LED (green/red) Eth NS (Ethernet network status) || 1 LED (Green) peer processor running (REMOTE RUN) || 1 LED (Green) processor ID set to A (A) || 1 LED (Green) processor ID set to B (B) || 1 LED (Green) processor acting as Primary (PRIM) || 1 LED (Green) processor acting as Standby (STBY) || 1 LED (Red) I/O values overrided by user (FORCED IO) || 1 LED (Green) processor in safety mode (SRUN) || 1 LED (Green) processor in maintenance mode (SMOD) || 1 LED (Green) Hot standby link status (Hsby Diag)
• Supply
  • internal power supply via rack
• Vibration Resistance
  • 3 gn

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI1312016EN
• Environmental Disclosure
  • ENVPEP1312016EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Impregnation Material
  • conformal coated
• Product Or Component Type
  • redundant processor module
• Range Of Product
  • Modicon M580
