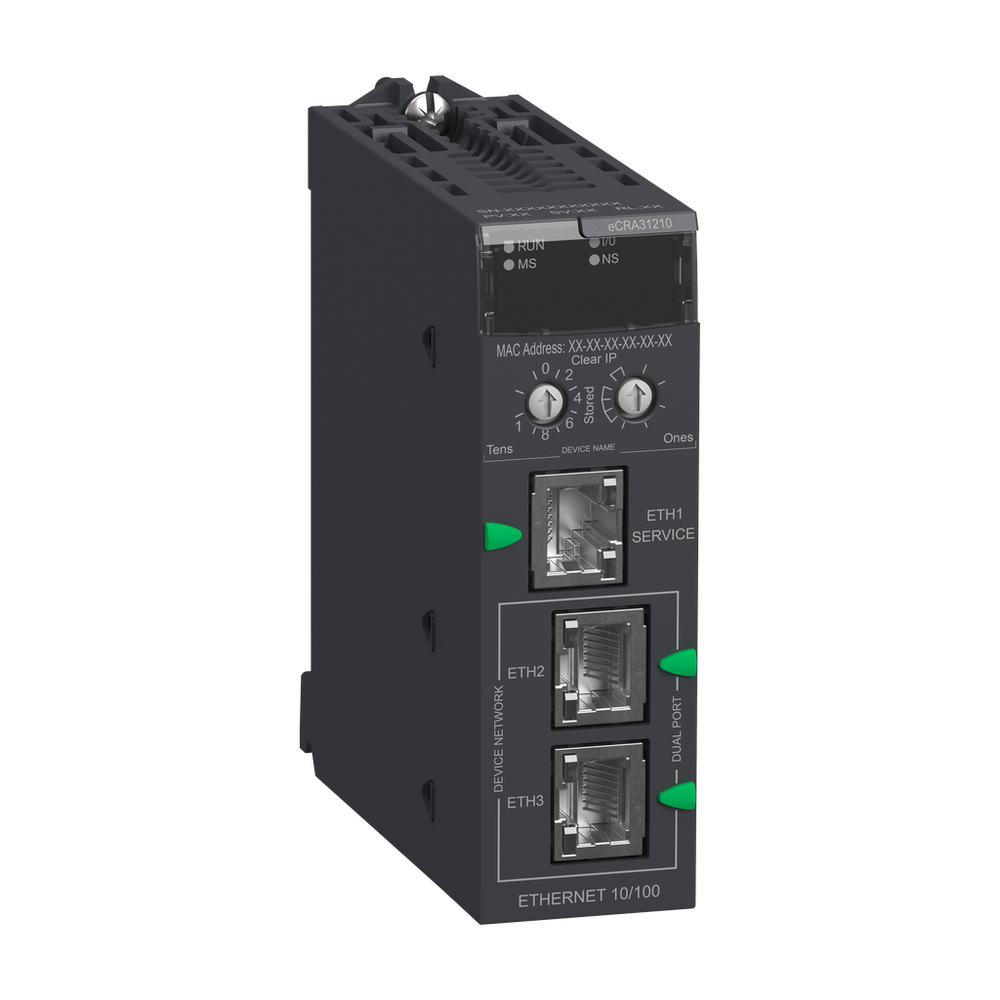

Schneider Electric BMECRA31210

Complementary

• Bus Type
  • bus X across the remote backplane || Ethernet across the remote backplane
• Communication Network Type
  • IPv4 (internet protocol)
• Communication Port Protocol
  • EtherNet/IP
• Communication Service
  • Ethernet/IP adapter || RSTP (Ring topology support) || Ethernet RIO network || Quality of Service (QoS) || CIP Explicit messaging (server) || Modbus TCP server for module diagnostics || DHCP client || TFTP client || FTP client || FDR client || SNTP client || SNMP agent
• Connector Type
  • 3 RJ45
• Current Consumption
  • 1800 mA
• Cybersecurity
  • enable/disable communication ports || Syslog protocol support
• Data Recording
  • 10 ms time stamps
• Depth
  • 87.5 mm
• Exchange Mode
  • half duplex, full duplex, autonegotiation, auto MDIX
• Fixing Mode
  • by screws
• Function Available
  • CCOTF (configuration change on the fly) || input data is collected and published to the remote I/O head adaptor || output modules are updated with the data received from remote I/O head adaptor || diagnostics for remote I/O devices (Device DDT) || port mirroring || system time stamping || non-interfering type 1 || I/O extension rack
• Height
  • 100 mm
• Input Voltage
  • 3.3 V DC
• Integrated Connection Type
  • 1 port service or distributed equipment || 2 port Ethernet RIO Network (RSTP)
• Local Signalling
  • for module active (RUN) 1 LED (green) || for module error (ERR) 1 LED (red) || for module status (Mod Status) 1 LED (green/red) || for network communication status (Net Status) 1 LED (green/red) || for Ethernet link diagnostics (STS) 1 LED (green)
• Maximum Altitude Transport
  • 3000 m
• Module Format
  • standard
• Mounting Mode
  • rack-mounted
• Net Weight
  • 0.225 kg
• Number Of Port
  • 3
• Port Ethernet
  • 10/100BASE-TX
• Product Compatibility
  • 0-1024 discrete channel || 0-256 analog channel || counter module || time-stamping module || SSI encoder interface module || motion control module || frequency input module || AS-Interface module || serial link module || fiber converter modules || HART module || weighing module || CANopen master module (standalone CPU only) || PROFIBUS module (standalone CPU only) || Ethernet switch module
• Relative Humidity
  • 95-95 % without condensation
• Topology
  • ring
• Transmission Rate
  • 10/100 Mbit/s
• Width
  • 32 mm

Environment

• Ambient Air Temperature For Operation
  • -0-60 °C
• Ambient Air Temperature For Storage
  • -40-85 °C
• Directives
  • 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
• Environmental Characteristic
  • standard environment
• Ip Degree Of Protection
  • IP20
• Operating Altitude
  • <= 6561.68 ft (2000 m)
• Product Certifications
  • CE || UL || CSA || RCM || EAC || Merchant Navy
• Standards
  • EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Device Application
  • X80 Ethernet RIO drop adaptor
• Product Or Component Type
  • I/O expansion module
• Product Specific Application
  • for remote I/O modules
• Range Compatibility
  • Modicon M580
• Range Of Product
  • Modicon X80
