Description

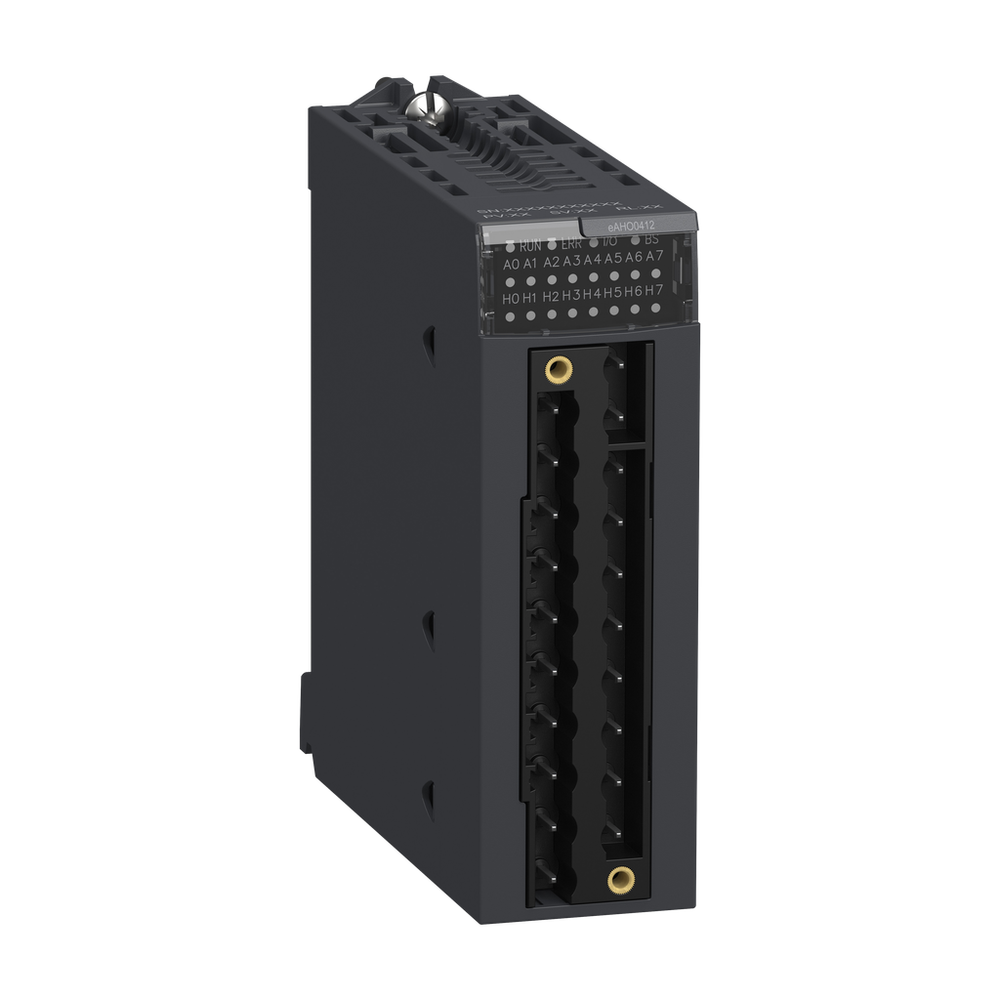

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue output module has 4 outputs with 15bit + sign resolution. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way terminal block, Telefast for electrical connection. It weighs 0.223kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This module is compatible with BMEP58xxx processor, BMEXBPxxx backplane, ABE7CPA21, head module BMECRA31210, BMXFTB20xxx terminal block. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).analog isolated high level output module, Modicon X80, 4 HART outputs, 4 to 20mA
Schneider Electric BMEAHO0412 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Output Number
- 4
- Analogue Output Resolution
- 15 bits + sign
- Analogue Output Type
- current 4...20 mA
- Application Specific I/O
- HART
- Checks
- broken wire detection
- Electrical Connection
- 20 ways terminal block || Telefast
- Function Available
- I/O mapping
- Input Output Isolation
- isolated
- Isolation Voltage
- 1000 V DC 60 s between channels || 1400 V DC 60 s between channels and ground || 1400 V DC 60 s between channels and bus
- Load Impedance Ohmic
- 600 Ohm 0...20 mA || 570 Ohm 0...21 mA
- Measurement Error
- 0.1 % of full scale 25 °C || 0.2 % of full scale 0...60 °C
- Net Weight
- 0.223 kg
- Product Compatibility
- BMEP58... processor || BMEXBP... backplane || ABE7CPA21 || head module BMECRA31210 || BMXFTB20... terminal block
- Temperature Drift
- 45 ppm/°C
- Topology
- point-to-point
Environment
- Ambient Air Temperature For Operation
- 0-60 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility
- Product Certifications
- CE || RCM || CSA || EAC || Merchant Navy || UL
- Standards
- EN/IEC 61010-2-201 || EN/IEC 61131-2 || UL 61010-2-201 || CSA C22.2 No 61010-2-201
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Or Component Type
- analog output module
- Range Of Product
- Modicon X80
