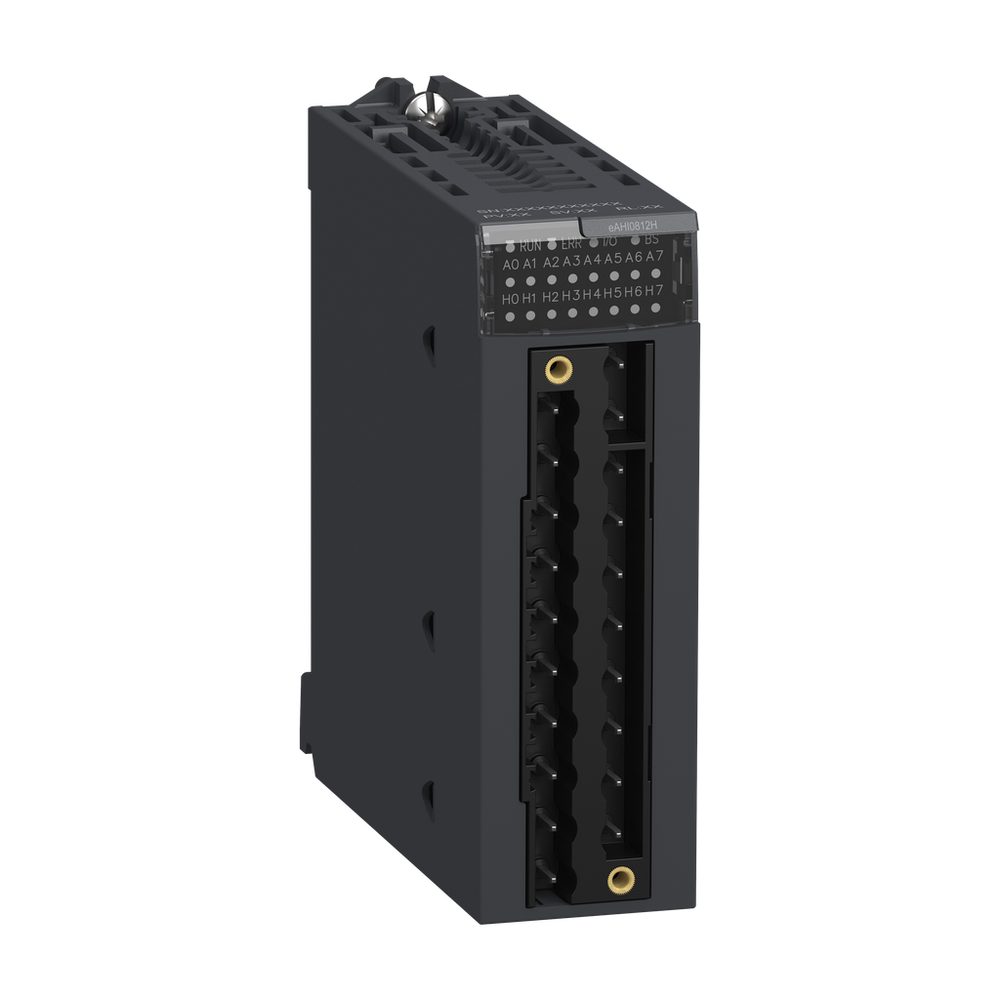

Schneider Electric BMEAHI0812H
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
analog isolated high level input module, Modicon X80, 8 HART inputs, 4 to 20mA, for severe environments
Schneider Electric BMEAHI0812H is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Input Number
- 8
- Analogue Input Resolution
- 15 bits + sign
- Analogue Input Type
- current 4...20 mA
- Application Specific I/O
- HART
- Checks
- broken wire detection
- Electrical Connection
- 20 ways terminal block || Telefast
- Function Available
- I/O mapping
- Input Impedance
- 250 Ohm internally protective resistor (3.6 to 50 Ohm)
- Input Output Isolation
- isolated
- Isolation Voltage
- 1000 V DC 60 s between channels || 1400 V DC 60 s between channels and ground || 1400 V DC 60 s between channels and bus
- Measurement Error
- 0.15 % of full scale 25 °C || 0.55 % of full scale - 25...70 °C
- Net Weight
- 0.233 kg
- Product Compatibility
- BMEP58... processor || BMXFTB20... terminal block || ABE7CPA31 || ABE7CPA02 || ABE7CPA03 || head module BMECRA31210 || BMEXBP... backplane
- Temperature Drift
- 50 ppm/°C
- Topology
- point-to-point
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Directives
- 2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility || 2014/34/EU - ATEX directive
- Environmental Characteristic
- gas resistant class Gx ISA S71.04 || gas resistant class 3C4 IEC 60721-3-3 || dust resistant class 3S4 IEC 60721-3-3 || sand resistant class 3S4 IEC 60721-3-3 || salt resistant level 2 IEC 68252 || mold growth resistant class 3B2 IEC 60721-3-3 || fungal spore resistant class 3B2 IEC 60721-3-3 || hazardous location class I division 2
- Operating Altitude
- 0...6561.68 ft (0...2000 m) || 2000...5000 m with derating factor
- Product Certifications
- CE || UL || CSA || RCM || EAC || Merchant Navy || ATEX zone 2/22 || IECEx zone 2/22
- Protective Treatment
- conformal coating
- Standards
- EN/IEC 61131-2 || EN/IEC 61010-2-201 || UL 61010-2-201 || CSA C22.2 No 61010-2-201 || IACS E10 || EN/IEC 61000-6-5, interface type 1 and type 2 || EN/IEC 61850-3, location G || EN/IEC 60079-0
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Or Component Type
- analog input module
- Range Of Product
- Modicon X80
