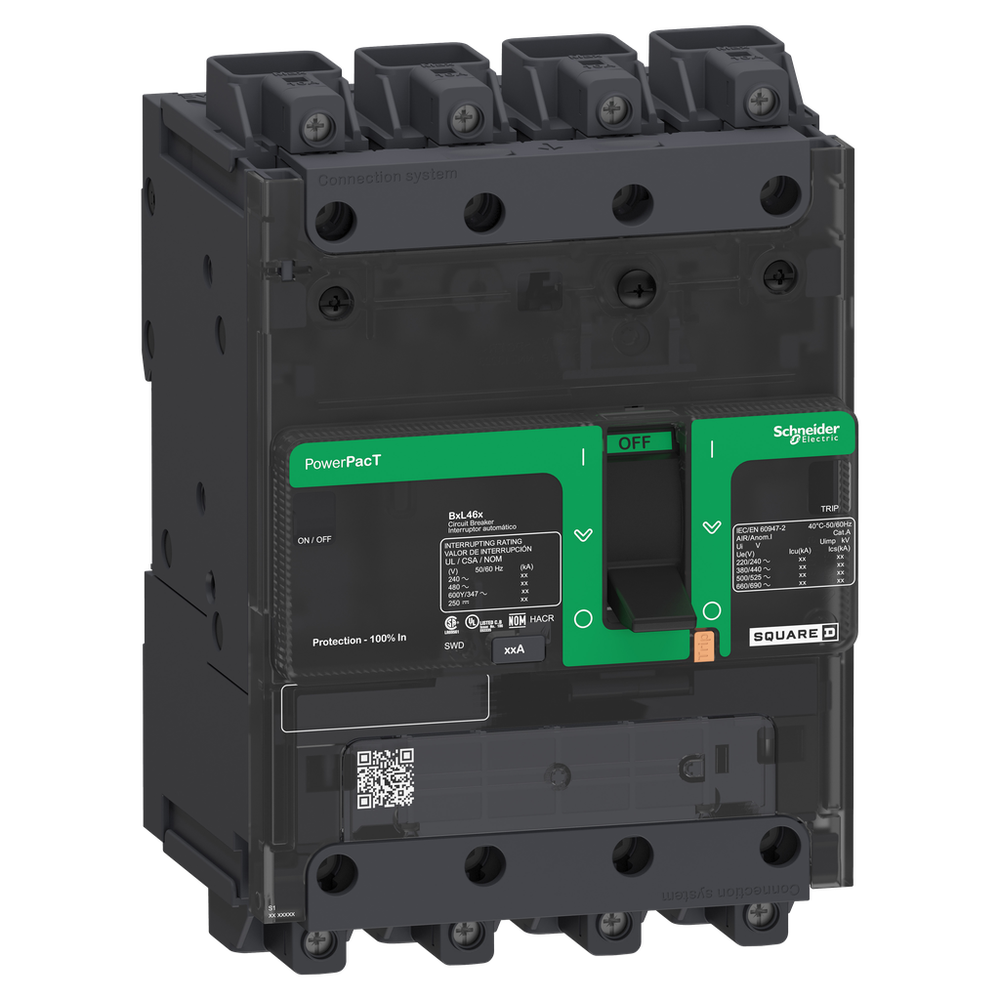

Schneider Electric BGL46030LU
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 30A, 4 pole, circuit breaker has a breaking capacity of 18kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. This unit includes a control wire terminal on the line end EverLink lug. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. EverLink lugs are also available with unique integrated control wire terminals.Circuit breaker, PowerPacT B, 30A, 4 pole, 600Y/347VAC, 18kA, lugs, thermal magnetic, 80%, control wire ON end
Schneider Electric BGL46030LU is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- 9 Mm Pitches
- 12
- Awg Gauge
- AWG 6...AWG 2/0 fine stranded aluminium/copper || AWG 14...AWG 3/0 rigid or stranded aluminium/copper
- Breaking Capacity
- 65 kA 208Y/120 V AC 50/60 Hz UL 489 || 65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480/277 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 18 kA 600Y/347 V AC 50/60 Hz UL 489
- Breaking Capacity Code
- G
- Circuit Breaker Application
- HACR rated
- Color
- Gray RAL 7016)
- Connection Pitch
- 27 mm
- Continuous Current Rating
- 80 %
- Control Type
- toggle
- Depth
- 80 mm
- Electrical Connection
- Everlink lug, line || Everlink lug, load
- Electrical Durability
- 10000 cycles IEC 947-1 Annex K ed 5.2 440 V In
- Height
- 137 mm
- [Ics] Rated Service Breaking Capacity
- 65 kA 220...240 V AC 50/60 Hz IEC 60947-2 || 18 kA 500...525 V AC 50/60 Hz IEC 60947-2 || 35 kA 380...415 V AC 50/60 Hz IEC 60947-2 || 35 kA 440 V AC 50/60 Hz IEC 60947-2
- Line Rated Current
- 30-30 A
- Local Signalling
- presence of auxiliary contacts flag green)
- Mechanical Durability
- 15000 cycles IEC 947-1 Annex K ed 5.2
- Mounting Mode
- clip-on 35 mm symmetrical DIN rail) || by screws plate)
- Net Weight
- 1.441 kg
- Network Frequency
- 50/60 Hz
- Number Of Slots
- 1 auxiliary switch OF plug-in) || 1 voltage release MN or MX plug-in) || 1 alarm switch SD plug-in)
- Poles Description
- 4P
- Protected Poles Description
- 4t
- Quantity Per Set
- set of 1
- Suitability For Isolation
- yes IEC 60947-2
- Tightening Torque
- 5-5 N.m 2.5-16 mm² (AWG 14...AWG 4) || 9-9 N.m 25-95 mm² (AWG 3...AWG 3/0)
- Trip Unit Name
- TM-D
- Trip Unit Technology
- thermal-magneticTM-D,
- [Ue] Rated Operational Voltage
- 525 V AC 50/60 Hz UL 489
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- [Ui] Rated Insulation Voltage
- 800 V IEC 60947-2
- Utilisation Category
- category A
- Width
- 108 mm
- Wire Stripping Length
- 20 mm
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -50-85 °C
- Ik Degree Of Protection
- IK07 IEC 62262
- Ip Degree Of Protection
- front cover IP40 IEC 60529
- Operating Altitude
- 6561.68 ft (2000 m) without derating || 5000 m with derating
- Pollution Degree
- 3 IEC 60947-1
- Product Certifications
- UL || IEC || CCC || EAC || CSA || NOM
- Quality Labels
- CE
- Standards
- UL 489 || GB 14048.2 || EN/IEC 60947-2 || CSA C22.2 No 5 || EN/IEC 60947-5-1 || NEMA AB1 || NMX J-266
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure
- ENVPEP1610005EN
- Eu Rohs Directive
- Compliant
- Halogen Content Performance
- Halogen free product
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Application
- distribution
- Device Short Name
- BG 030
- Product Name
- PowerPact B
- Product Or Component Type
- circuit breaker
- Range
- PowerPact
