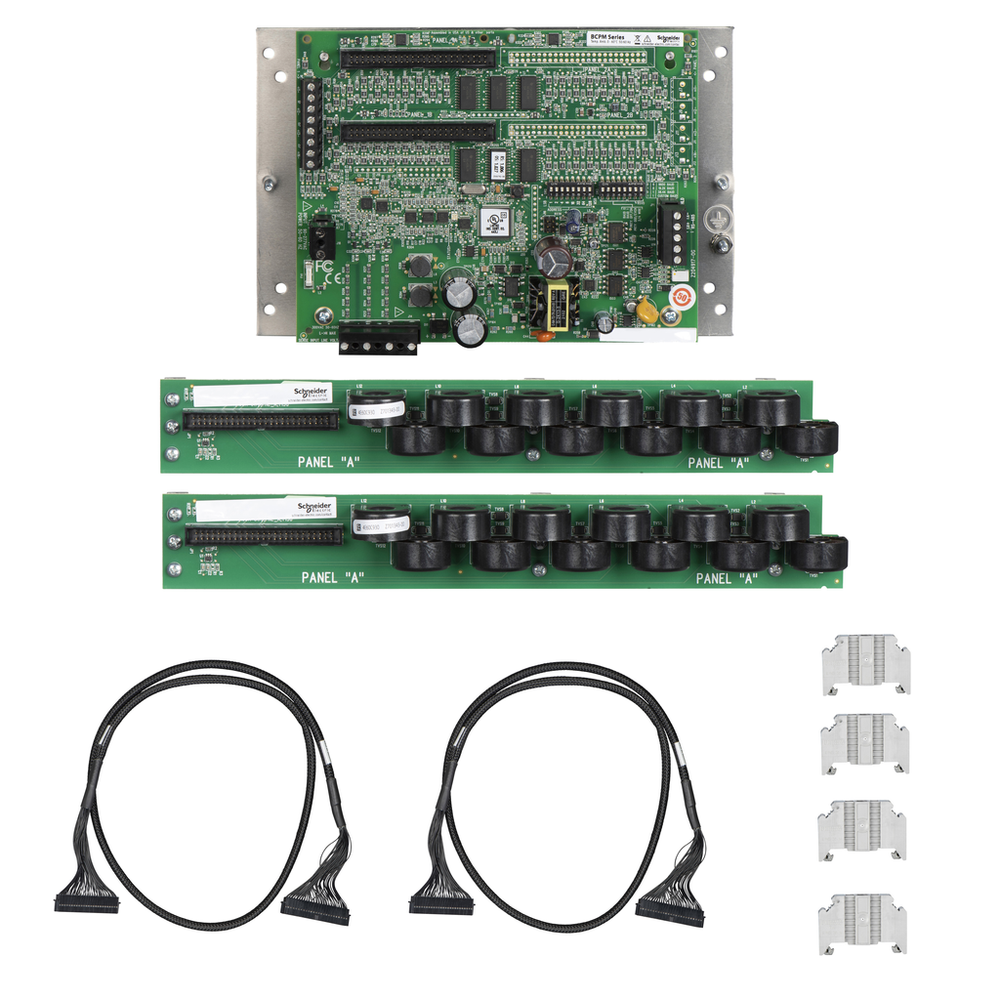

Schneider Electric BCPMSCA60S
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This is an integrated solution for monitoring multi-circuits and mains by using a single meter. The meter is designed for retrofit and is used for critical power operations in data centres and energy management in buildings. It offers class 1 (1 %) power and energy system accuracy (including 50A, 100A or 200A split-core current transformers) on all branch channels. The BCPM monitors both the 60 branch circuits and mains values, incoming power and energy. All to provide information on the complete Power Distribution Unit. Adapter boards with terminals for split-core CTs can be mounted using DIN-rail, Snaptrack or on a common mounting plate with the main board Full alarming capabilities ensure that potential issues are dealt with before they become problems. Communication enabled with a RS485 serial port and the Modbus protocol support, more communication options with the gateway H8951. The meter need to be powered by a 90V AC to 277V AC supply source. Include 50A branch CTs with 2 meters leads and 1.8 meters round ribbon cables, for 60 split-core current transformers. The device dimensions are 228mm in width, 146mm in height and weight 1.5 kilograms.BCPM power monitoring advanced - 60 split core CT 50 A
Schneider Electric BCPMSCA60S is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Input Type
- split core CT 0.333 V60 x
- Communication Of Data
- under voltage alarm || low-low current alarm || over voltage alarm || high current alarm || low current alarm || high-high current alarm
- Communication Port Protocol
- Modbus RTU
- Communication Port Support
- RS485
- Measurement Accuracy
- branch current 2 % 0.25…2 A || branch current 1 % 2…100 A || mains current 3 % 1…100 % || mains current 3 % 2…100 % || voltage 1 % 90…277 V
- Measurement Voltage
- 90-277 V phase to neutral || 150-480 V phase to phase
- Provided Equipment
- 4 x cables || 4 x adapter board || 60 x current transformer
- Sampling Rate
- 256 samples/cycle
- Update Time
- 1.8 s
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Height
- 146 mm
- Mounting Mode
- clip-on
- Mounting Support
- board
- Net Weight
- 1.5 kg
- Operating Altitude
- 9842.52 ft (3000 m)
- Product Certifications
- UL
- Relative Humidity
- 0-95 % 0-60 °C
- Standards
- UL 508 || EN 61010 || IEC 61036 || ANSI C12.1
- Width
- 288 mm
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Application
- sub billing
- Device Short Name
- BCPMSCA
- Energy Management
- sub billing and cost allocation
- Network Frequency
- 60 Hz || 50 Hz
- Power Monitoring
- basic instrumentation
- Power Quality Analysis
- voltage sag and swell detection
- Product Name
- PowerLogic BCPMSC
- Product Or Component Type
- multi-circuit energy meter
- Range
- PowerLogic
- Type Of Measurement
- voltage || current || frequency || active power || power factor || active energy
- [Us] Rated Supply Voltage
- 90...277 V AC 50/60 Hz +/- 1 %
- Variant
- advanced
