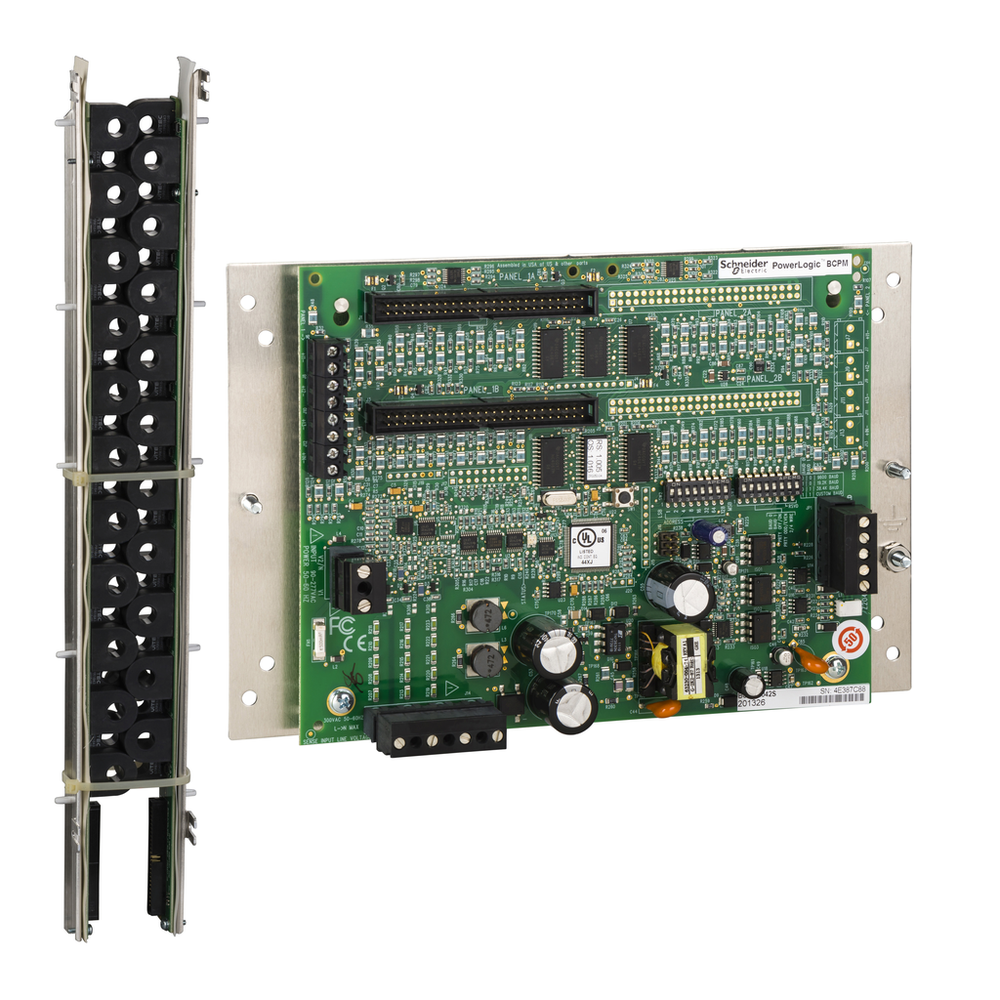

Schneider Electric BCPMB142S
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This is an integrated solution for monitoring multi-circuits and mains by using a single meter. The meter is designed for use in new build and is used for critical power operations in data centres and energy management in buildings. It offers class 1 (1 %) power and energy system accuracy (100A solid core current transformers) on all branch channels. The BCPM monitors both the 42 branch circuits and mains values and only the mains incoming power and energy. All to provide information on the complete Power Distribution Unit. Full alarming capabilities ensure that potential issues are dealt with before they become problems. Communication enabled with a RS485 serial port and the Modbus protocol support, more communication options with the gateway H8951. The meter need to be powered by a 90V AC to 277V AC supply source. Include 2 21-CTs board strips with 1inch (26mm) spacing between each CT connectors, for 42 circuits. The device dimensions are 228mm in width, 146mm in height and weight 1.5 kilograms.BCPM power monitoring intermediate - 42 solid core 100 A - 26 mm CT spacing
Schneider Electric BCPMB142S is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Analogue Input Type
- solid core CT 100 A42 x
- Communication Of Data
- over voltage alarm || high-high current alarm || low current alarm || under voltage alarm || high current alarm || low-low current alarm
- Communication Port Protocol
- Modbus RTU
- Communication Port Support
- RS485
- Connection Pitch
- 26 mm
- Measurement Accuracy
- branch current 2 % 0.25…2 A || branch current 1 % 2…100 A || mains current 3 % 1…100 % || mains current 3 % 2…100 % || voltage 1 % 90…277 V
- Measurement Voltage
- 90-277 V phase to neutral || 150-480 V phase to phase
- Provided Equipment
- 42 x current transformer || 2 x cables
- Sampling Rate
- 256 samples/cycle
- Update Time
- 1.8 s
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Height
- 146 mm
- Mounting Mode
- panel-mounted
- Mounting Support
- enclosure || panel
- Net Weight
- 1.5 kg
- Operating Altitude
- 9842.52 ft (3000 m)
- Product Certifications
- UL
- Relative Humidity
- 0-95 % 0-60 °C
- Standards
- UL 508 || IEC 61036 || EN 61010 || ANSI C12.1
- Width
- 288 mm
Offer Sustainability
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant
Specifications
- Device Application
- sub billing
- Device Short Name
- BCPMB
- Energy Management
- sub billing and cost allocation
- Network Frequency
- 60 Hz || 50 Hz
- Power Monitoring
- basic instrumentation
- Power Quality Analysis
- voltage sag and swell detection
- Product Name
- PowerLogic BCPM
- Product Or Component Type
- multi-circuit energy meter
- Range
- PowerLogic
- Type Of Measurement
- voltage || current || frequency || active power || power factor || active energy
- [Us] Rated Supply Voltage
- 90...277 V AC 50/60 Hz +/- 1 %
- Variant
- intermediate
