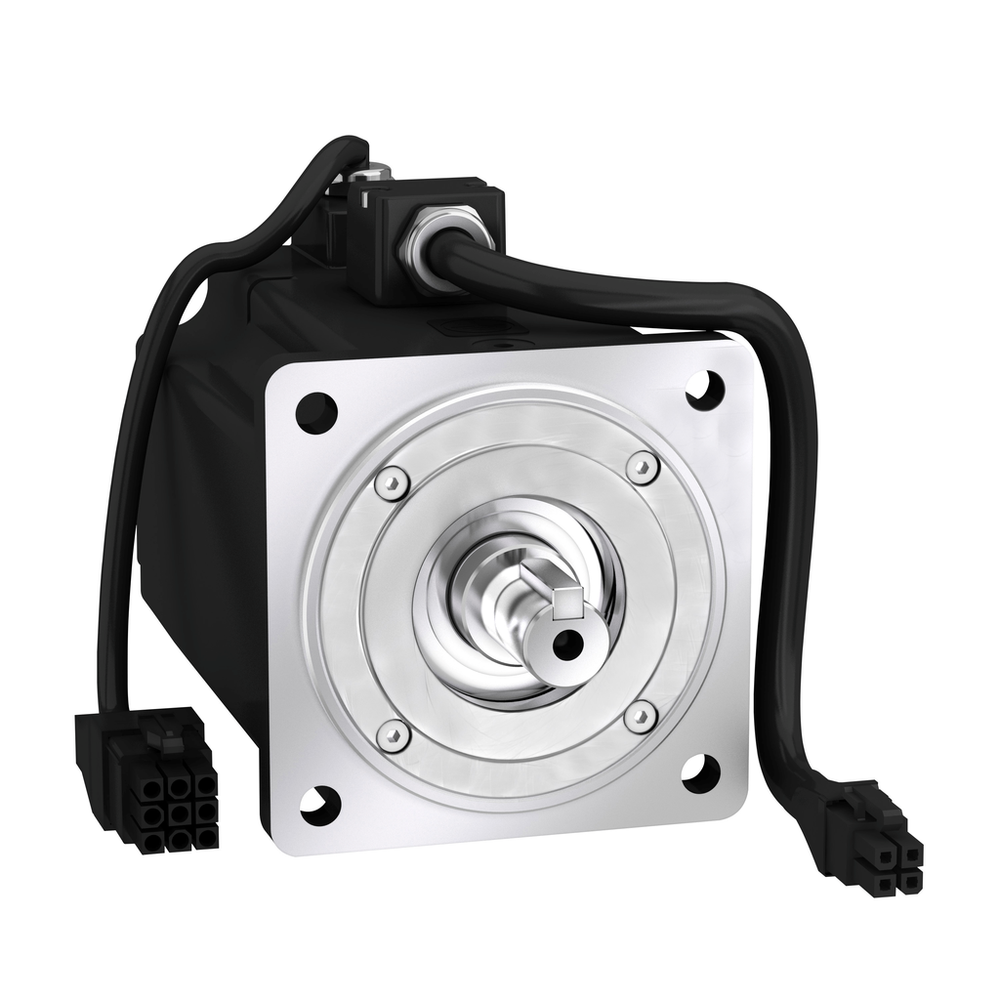

Schneider Electric BCH2LF0733CA5C
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 5000RPM and IP65 parallel keyed shaft without holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of speed of rotation (3000RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 4.01A and a continuous power of 750W. The shaft dimensions are 19mm (Diameter) x 35mm (Length). It is furnished with free lead for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 138mm (Length) x 80mm (Width), centring collar dimensions are 4mm (Depth) x 70mm (Diameter) with 90mm circle diameter of the mounting hole. It weighs 2.8kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 80mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.servo motor BCH, Lexium 28, 80mm, 750W, with oil seal, with key, leads connection
Schneider Electric BCH2LF0733CA5C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Back Emf Constant
- 36 V/krpm 20 °C
- Brake Pull-In Power
- 10.2 W
- Centring Collar Depth
- 4 mm
- Centring Collar Diameter
- 70 mm
- Circle Diameter Of The Mounting Holes
- 90 mm
- Continuous Power
- 750 W
- Continuous Stall Current
- 4.01 A
- Continuous Stall Torque
- 2.39 N.m LXM26D 4.5 A, 220 V, single phase || 2.39 N.m LXM26D 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 4.5 A, 220 V, single phase || 2.39 N.m LXM28... 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 9 A, 110 V, single phase
- Distance Shaft Shoulder-Flange
- 4 mm
- Electrical Connection
- free lead
- Feedback Type
- 20 bits single turn absolute encoder
- Holding Brake
- without
- Key Width
- 6 mm
- Length
- 138 mm
- Maximum Axial Force Fa
- 115 N
- Maximum Current Irms
- 13.23 A LXM28... 0.75 kW, 220 V || 13.23 A LXM28... 0.75 kW, 110 V
- Maximum Mechanical Speed
- 5000 rpm
- Maximum Permanent Current
- 4.29 A
- Maximum Radial Force Fr
- 332 N 3000 rpm
- Motor Flange Size
- 80 mm
- Mounting Holes Diameter
- 6.6 mm
- Mounting Support
- asian standard flange
- Net Weight
- 2.8 kg
- Nominal Output Power
- 750 W LXM26D 4.5 A, 220 V, single phase || 750 W LXM26D 4.5 A, 220 V, three phase || 750 W LXM28... 4.5 A, 220 V, single phase || 750 W LXM28... 4.5 A, 220 V, three phase || 750 W LXM28... 9 A, 110 V, single phase
- Nominal Speed
- 3000 rpm LXM26D 4.5 A, 220 V, single phase || 3000 rpm LXM26D 4.5 A, 220 V, three phase || 3000 rpm LXM28... 4.5 A, 220 V, single phase || 3000 rpm LXM28... 4.5 A, 220 V, three phase || 3000 rpm LXM28... 9 A, 110 V, single phase
- Nominal Torque
- 2.39 N.m LXM26D 4.5 A, 220 V, single phase || 2.39 N.m LXM26D 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 4.5 A, 220 V, single phase || 2.39 N.m LXM28... 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 9 A, 110 V, single phase
- Number Of Motor Stacks
- 2
- Number Of Mounting Holes
- 4
- Peak Stall Torque
- 7.16 N.m LXM26D 4.5 A, 220 V, single phase || 7.16 N.m LXM26D 4.5 A, 220 V, three phase || 7.16 N.m LXM28... 4.5 A, 220 V, single phase || 7.16 N.m LXM28... 4.5 A, 220 V, three phase || 7.16 N.m LXM28... 9 A, 110 V, single phase
- Phase
- single phase || three phase
- Product Compatibility
- LXM26D servo drive 0.75 kW, 220 V, single phase || LXM26D servo drive 0.75 kW, 220 V, three phase || LXM28... servo drive 0.75 kW, 220 V, single phase || LXM28... servo drive 0.75 kW, 220 V, three phase || LXM28... servo drive 0.75 kW, 110 V, single phase
- Rotor Inertia
- 1.19 kg.cm²
- Shaft Diameter
- 19 mm
- Shaft End
- keyed
- Shaft Length
- 35 mm
- Stator Electrical Time Constant
- 4.07 ms 20 °C
- Stator Inductance
- 6.1 mH 20 °C
- Stator Resistance
- 1.5 Ohm 20 °C
- Torque Constant
- 0.6 N.m/A 20 °C
- Type Of Cooling
- natural convection
- [Us] Rated Supply Voltage
- 220 V || 110 V
Environment
- Ambient Air Temperature For Operation
- -20-40 °C
- Ip Degree Of Protection
- IP50 IM V3 || IP65 IM B5, IM V1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1504002EN
- Environmental Disclosure
- ENVPEP1504002EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- BCH2
- Product Or Component Type
- servo motor
- Range Compatibility
- Lexium 28
