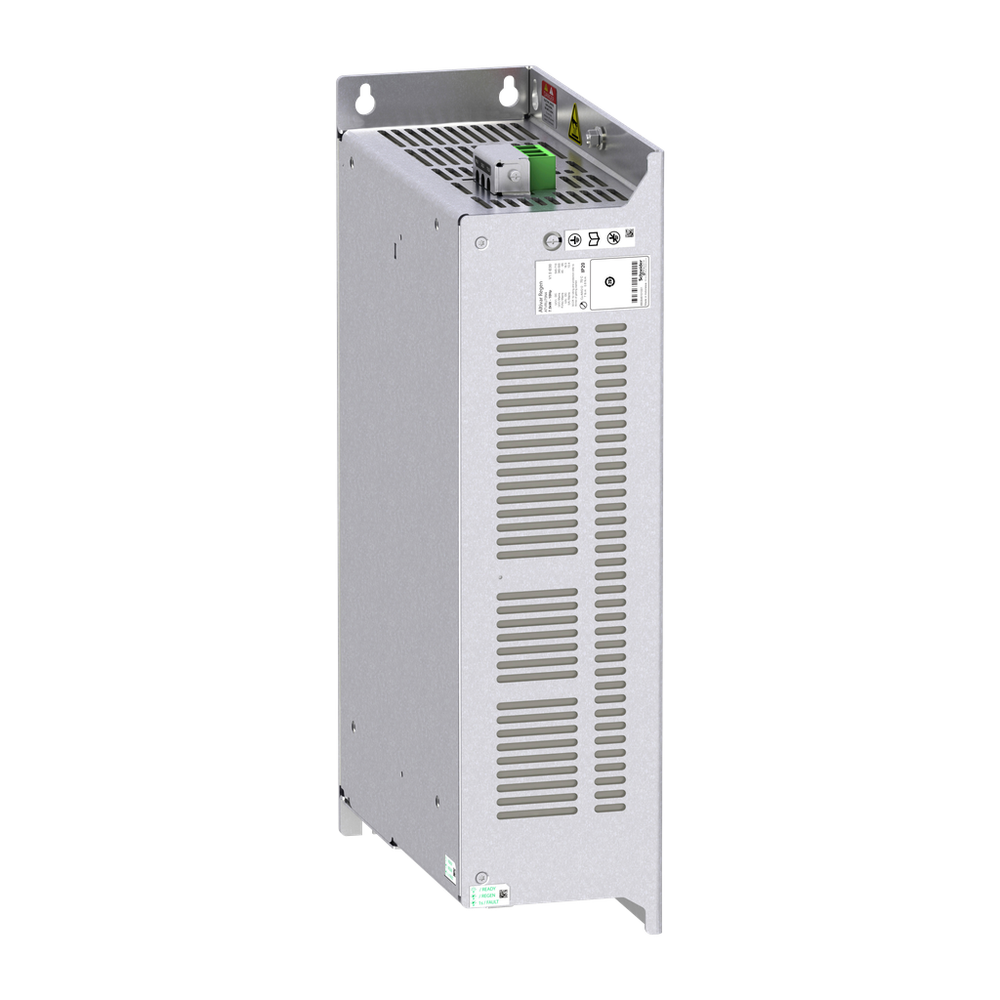

Schneider Electric ATVRU75N4
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This regenerative unit is an option for variable speed drives of Altivar range. It has built in EMC filter compliant with standard IEC 61800-3. Its rated power is equal to 7.5kW. The main function of the ATV Regen product is to provide an option to regenerate energy back to the AC supply. Its protection index is IP20. Its maximum operating temperature is 50 °C. It weighs 6kg and its dimensions are 80mm wide, 337mm high, 175mm deep. It is designed for heavy braking applications such as material working, material handling and hoisting with easy setting. It conforms to international standards IEC 61800-3 and IEC 61800-5-1. This regen unit is compatible with ATV320, ATV340 and ATV900 drives. The product is delivered in one package. It can installed in either vertical or horizontal position. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).Regenerative unit, Altivar, 7,5kW, for Altivar variable speed drive
Schneider Electric ATVRU75N4 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Depth
- 175 mm
- Electrical Connection
- control removable screw terminal block 0.5...1.5 mm², AWG 20...AWG 16 bottom) || power supply removable screw terminal block 2.5...4 mm², AWG 12...AWG 10 top) || DC bus removable screw terminal block 2.5...4 mm², AWG 12...AWG 10 bottom)
- Fixing Mode
- by screws
- Height
- 337 mm
- Input Current
- 16.5 A 380 V AC voltage inputs continuous) || 14.5 A 500 V AC voltage inputs continuous) || 22.9 A 380 V AC voltage inputs transient for 60 s) || 19.1 A 500 V AC voltage inputs transient for 60 s)
- Input Power
- 6.8 kW 380...500 V AC voltage inputs continuous) || 10.2 kW 380...500 V AC voltage inputs transient for 60 s)
- Maximum Dc Bus Voltage
- 300...880 V DC
- Maximum Voltage Drop At Rated Load
- 3 %
- Net Weight
- 6 kg
- Network Frequency
- 45...65 Hz
- Output Current
- 13.4 A 380 V AC continuous) || 11.9 A 500 V AC continuous) || 18.4 A 380 V AC transient for 60 s) || 15.4 A 500 V AC transient for 60 s)
- Phase
- 3 phase
- Width
- 80 mm
Environment
- Ambient Air Temperature For Operation
- -10-50 °C without derating || 50-60 °C with derating factor
- Ambient Air Temperature For Storage
- -40-70 °C
- Environmental Characteristic
- chemical pollution resistance class 3C3 IEC 60721-3-3 || dust pollution resistance class 3S2 IEC 60721-3-3
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating || 3280.84...9842.52 ft (1000...3000 m) with power derating 1 % per 100 m
- Operating Position
- vertical or horizontal position
- Pollution Degree
- 2 IEC 61800-5-1
- Product Certifications
- cUL
- Standards
- IEC 61800-5-1 || IEC 61800-3
- Type Of Cooling
- fan
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1604005EN
- Environmental Disclosure
- ENVPEP1604005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Application
- energy regeneration
- Kw Rating
- 6.8 kW
- Product Or Component Type
- power module
- Range Compatibility
- Altivar Machine ATV340 || Altivar Process ATV900 || Altivar Machine ATV320
- Range Of Product
- Altivar
- [Ue] Rated Operational Voltage
- 456...778 V DC
- [Us] Rated Supply Voltage
- 380...500 V - 15...10 %
