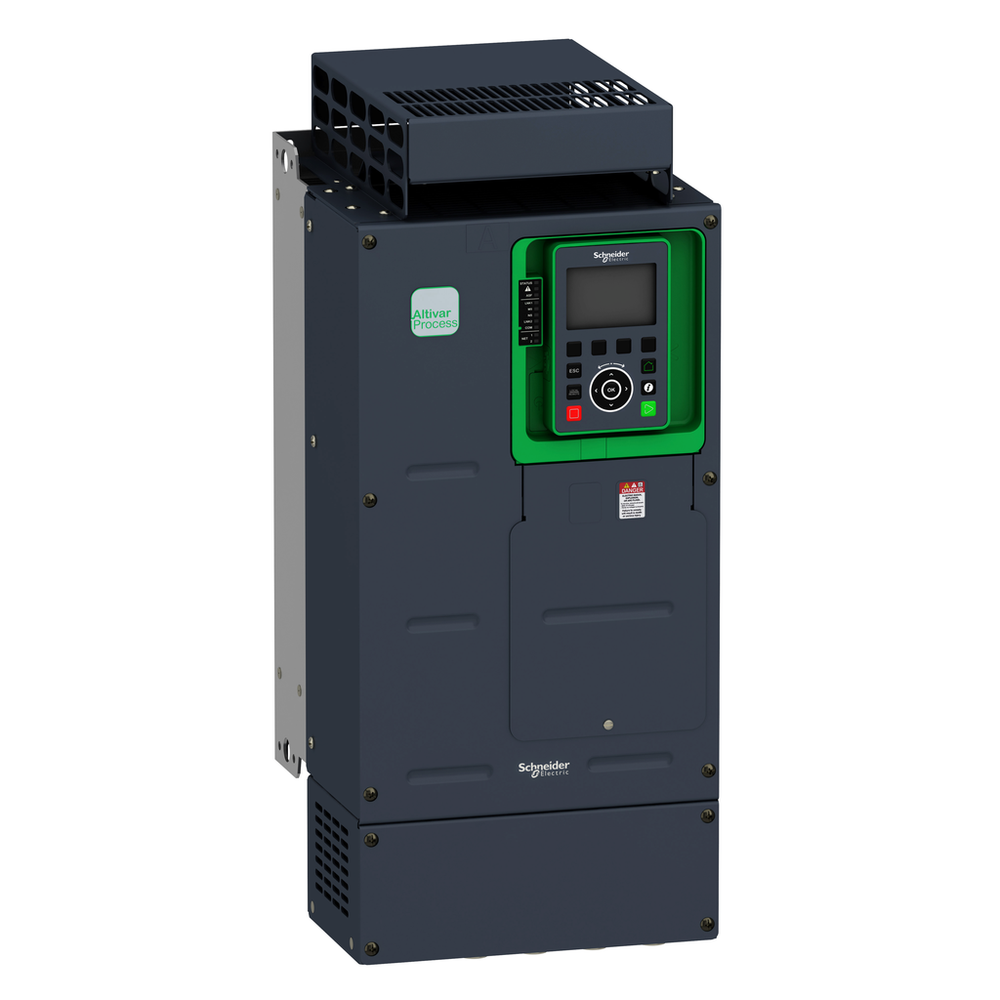

Schneider Electric ATV930D22S6

Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
variable speed drive, Altivar Process ATV900, ATV930, 30hp, 600V, IP20
Schneider Electric ATV930D22S6 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- 4 Quadrant Operation Possible
- true
- Acceleration And Deceleration Ramps
- S, U or customized || linear adjustable separately from 0.01...9999 s
- Accuracy
- +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output
- Analogue Input Number
- 3
- Analogue Input Type
- AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
- Analogue Output Number
- 2
- Analogue Output Type
- software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits
- Base Load Current At High Overload
- 27.0 A
- Base Load Current At Low Overload
- 34.0 A
- Brake Chopper Integrated
- true
- Braking To Standstill
- by DC injection
- Connector Type
- 2 RJ45 || 1 RJ45
- Data Format
- 8 bits, configurable odd, even or no parity
- 8 bits, configurable odd, even or no parity Modbus serial
- Depth
- 242 mm
- Discrete Input Logic
- positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V || positive logic (source) DI7, DI8), < 0.6 V, > 2.5 V || positive logic (source) STOA, STOB), < 5 V, > 11 V
- Discrete Input Number
- 10
- Discrete Input Type
- DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm || DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V) || STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
- Discrete Output Number
- 2
- Discrete Output Type
- logic output DQ+ 0-1 kHz <= 30 V DC 100 mA || programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA || logic output DQ- 0-1 kHz <= 30 V DC 100 mA
- Electrical Connection
- control screw terminal 0.5...1.5 mm² AWG 20...AWG 16 || motor screw terminal 10 mm² AWG 8 || line side screw terminal 10 mm² AWG 8 || DC bus screw terminal 10 mm² AWG 8
- Exchange Mode
- half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
- Height
- 567 mm
- Input Compatibility
- DI1...DI8 discrete input level 1 PLC EN/IEC 61131-2 || DI7, DI8 pulse input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC EN/IEC 61131-2
- Isolation
- between power and control terminals
- Linearity Error
- AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AQ1, AQ2 +/- 0.2 % analog output
- Local Signalling
- local diagnostic 3 LED mono/dual colour) || presence of voltage 1 LED red) || embedded communication status 3 LED dual colour) || communication module status 4 LED dual colour)
- Maximum Output Voltage
- 600.0 V
- Maximum Switching Current
- relay output R1 resistive, cos phi = 1 3 A 250 V AC || relay output R1 resistive, cos phi = 1 3 A 30 V DC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2, R3 resistive, cos phi = 1 5 A 250 V AC || relay output R2, R3 resistive, cos phi = 1 5 A 30 V DC || relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
- Method Of Access
- slave Modbus TCP
- Minimum Switching Current
- relay output R1, R2, R3 5 mA 24 V DC
- Motor Slip Compensation
- can be suppressed || automatic whatever the load || not available in permanent magnet motor law || adjustable
- Net Weight
- 23 kg
- Number Of Addresses
- 1-247
- 1-247 Modbus serial
- Physical Interface
- Ethernet || 2-wire RS 485
- Power Dissipation In W
- forced convection 495 W 600 V 4 kHz || natural convection 143 W 600 V 4 kHz
- Protection Type
- thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-circuit protection drive || motor phase break drive || overvoltages on the DC bus drive || line supply overvoltage drive || line supply undervoltage drive || line supply phase loss drive || overspeed drive || break on the control circuit drive
- Quantity Per Set
- 1
- Refresh Time
- relay output R1, R2, R3)5 ms +/- 0.5 ms)
- Relative Symmetric Network Frequency Tolerance
- 5 %
- Relay Output Number
- 3
- Relay Output Type
- configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 1000000 cycles || configurable relay logic R3 sequence relay NO 1000000 cycles
- Sampling Duration
- 2 ms +/- 0.5 ms DI1...DI8) - discrete input || 5 ms +/- 1 ms DI7, DI8) - pulse input || 1 ms +/- 1 ms AI1, AI2, AI3) - analog input || 5 ms +/- 1 ms AQ1, AQ2) - analog output
- Supply
- external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection
- Transmission Frame
- RTU
- Transmission Rate
- 10, 100 Mbits || 4.8 kbps || 9600 bit/s || 19200 bit/s
- 10/100 Mbit/s Ethernet IP/Modbus TCP || 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial
- Type Of Polarization
- no impedance
- no impedance Modbus serial
- Width
- 246 mm
- With Safety Function Safe Brake Management (Sbc/Sbt)
- true
- With Safety Function Safe Direction (Sdi)
- false
- With Safety Function Safely Limited Position (Slp)
- false
- With Safety Function Safely Limited Speed (Sls)
- true
- With Safety Function Safe Operating Stop (Sos)
- false
- With Safety Function Safe Position (Sp)
- false
- With Safety Function Safe Programmable Logic
- false
- With Safety Function Safe Speed Monitor (Ssm)
- false
- With Safety Function Safe Stop 1 (Ss1)
- true
- With Safety Function Safe Torque Off (Sto)
- true
- With Sft Fct Safe Stop 2 (Ss2)
- false
Environment
- Ambient Air Temperature For Operation
- -15-50 °C without derating) || 50-60 °C with derating factor)
- Ambient Air Temperature For Storage
- -40-70 °C
- Ambient Air Transport Temperature
- -40-70 °C
- Assembly Style
- enclosed
- Electromagnetic Compatibility
- electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6
- Environmental Characteristic
- chemical pollution resistance class 3C3 EN/IEC 60721-3-3 || dust pollution resistance class 3S3 EN/IEC 60721-3-3
- Environmental Class (During Operation)
- class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3
- Insulation Resistance
- > 1 MOhm 500 V DC for 1 minute to earth
- Marking
- CE
- Maximum Acceleration Under Shock Impact (During Operation)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Vibrational Stress (During Operation)
- 10 m/s² at 13...200 Hz
- Maximum Deflection Under Vibratory Load (During Operation)
- 1.5 mm at 2...13 Hz
- Noise Level
- 58 dB 86/188/EEC
- 58 dB
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m
- Operating Position
- vertical +/- 10 degree
- Overvoltage Category
- III
- Permitted Relative Humidity (During Operation)
- class 3K5 according to EN 60721-3
- Pollution Degree
- 2
- Product Certifications
- CSA || UL || TÜV
- Regulation Loop
- adjustable PID regulator
- Relative Humidity
- 5-95 % without condensation IEC 60068-2-3
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Standards
- UL 508C || EN/IEC 61800-3 || EN/IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1
- Vibration Resistance
- 1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6
- Volume Of Cooling Air
- 330 m3/h
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1704001EN
- Environmental Disclosure
- ENVPEP1704001EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Upgradeability
- Upgraded components available
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Apparent Power
- 28 kVA 600 V normal duty) || 24.1 kVA 600 V heavy duty)
- Asynchronous Motor Control Profile
- variable torque standard || constant torque standard || optimized torque mode
- Communication Port Protocol
- Modbus TCP || EtherNet/IP || Modbus serial
- Continuous Output Current
- 34 A 4 kHz normal duty || 27 A 4 kHz heavy duty
- Degree Of Protection
- UL type 1
- Device Application
- Industrial Application
- Discrete Input Logic
- 16 preset speeds
- Emc Filter
- integrated || with EMC plate option
- Ip Degree Of Protection
- IP20
- Maximum Horse Power Rating
- 30.0 hp normal duty || 25.0 hp heavy duty
- Maximum Output Frequency
- 599 Hz
- Maximum Transient Current
- 40.8 A 60 s normal duty) || 40.5 A 60 s heavy duty)
- Mounting Mode
- wall mount
- Network Frequency
- 50-60 Hz
- Nominal Switching Frequency
- 4 kHz
- Option Card
- slot A communication module Profibus DP V1 || slot A communication module PROFINET || slot A communication module DeviceNet || slot A communication module EtherCAT || slot A communication module CANopen daisy chain RJ45 || slot A communication module CANopen SUB-D 9 || slot A communication module CANopen screw terminals || slot A/slot B/slot C digital and analog I/O extension module || slot A/slot B/slot C output relay extension module || slot B 5/12 V digital encoder interface module || slot B analog encoder interface module || slot B resolver encoder interface module || communication module Ethernet Powerlink
- Phase
- 3 phase
- Product Destination
- synchronous motors || asynchronous motors
- Product Or Component Type
- variable speed drive
- Product Specific Application
- process for industrial
- Prospective Line Isc
- 70 kA
- Range Of Product
- Altivar Process ATV900
- Switching Frequency
- 2...8 kHz adjustable || 4...8 kHz with derating factor
- Synchronous Motor Control Profile
- permanent magnet motor || synchronous reluctance motor
- [Us] Rated Supply Voltage
- 600 V - 15...10 %
- Variant
- with braking chopper || standard version
