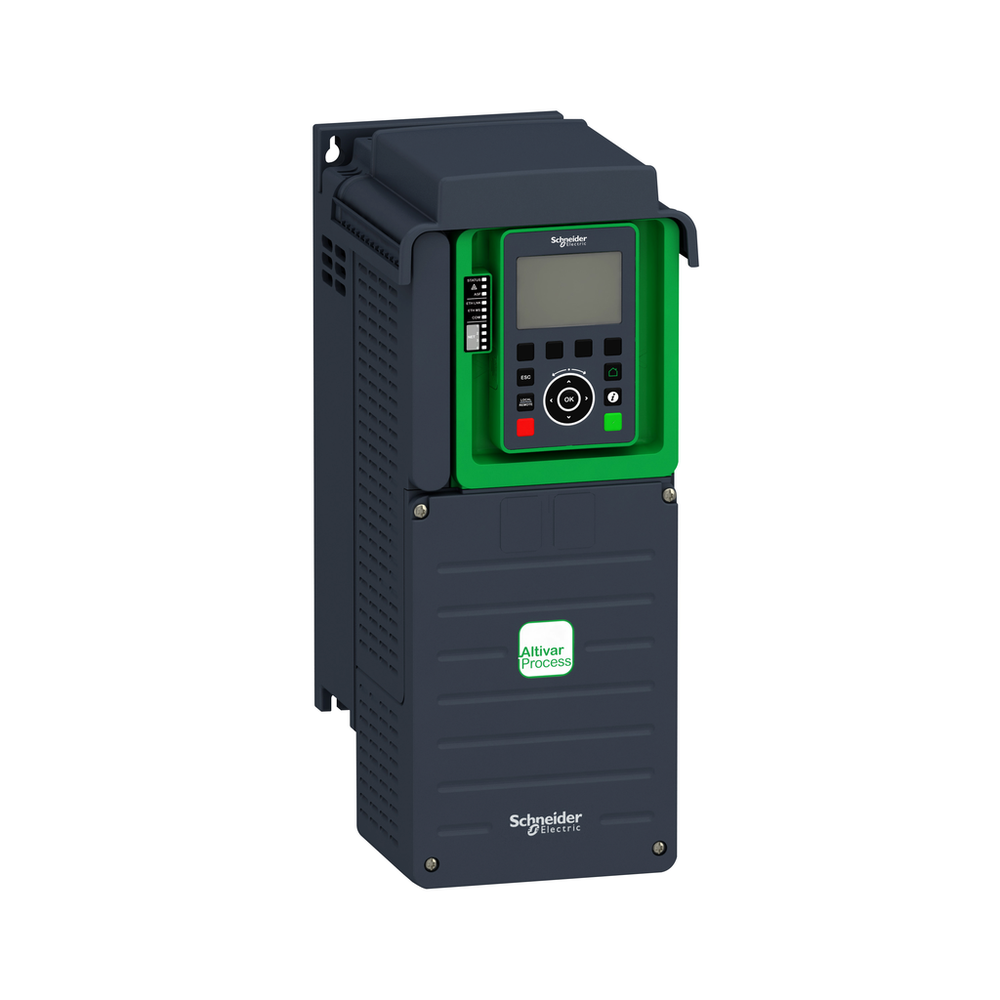

Schneider Electric ATV630D11S6X

Complementary

• Acceleration And Deceleration Ramps
  • linear adjustable separately from 0.01...9999 s || S, U or customized
• Accuracy
  • +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
• Analogue Input Number
  • 3
• Analogue Input Type
  • AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
• Analogue Output Number
  • 2
• Analogue Output Type
  • software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA
• Braking To Standstill
  • by DC injection
• Connector Type
  • RJ45 on the remote graphic terminal)Ethernet/Modbus TCP || RJ45 on the remote graphic terminal)Modbus serial
• Data Format
  • 8 bits, configurable odd, even or no parity
• Depth
  • 233 mm
• Discrete Input Logic
  • positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V
• Discrete Input Number
  • 8
• Discrete Input Type
  • DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
• Discrete Output Number
  • 0
• Discrete Output Type
  • relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V DC 5000 mA
• Electrical Connection
  • control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 || motor screw terminal 6...10 mm² AWG 10...AWG 8 || line side screw terminal 6...10 mm² AWG 10...AWG 8
• Enclosure Mounting
  • wall mounted
• Exchange Mode
  • half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
• Frequency Resolution
  • display unit 0.1 Hz || analog input 0.012/50 Hz
• Height
  • 409 mm
• Input Compatibility
  • DI1...DI6 discrete input level 1 PLC EN/IEC 61131-2 || DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC EN/IEC 61131-2
• Isolation
  • between power and control terminals
• Linearity Error
  • AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AO1, AO2 +/- 0.2 % analog output
• Local Signalling
  • for local diagnostic 3 LEDs || for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red)
• Maximum Output Frequency
  • 500 kHz
• Maximum Switching Current
  • relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC
• Maximum Transient Current
  • 19.8 A 60 s normal duty) || 20.3 A 60 s heavy duty)
• Method Of Access
  • slave Modbus TCP
• Minimum Switching Current
  • relay output R1, R2, R3 5 mA 24 V DC
• Motor Slip Compensation
  • automatic whatever the load || can be suppressed || not available in permanent magnet motor law || adjustable
• Mounting Mode
  • wall mount
• Net Weight
  • 5.5 kg
• Number Of Addresses
  • 1-247 Modbus serial
• Output Voltage
  • <= power supply voltage
• Permissible Temporary Current Boost
  • 1.1 x In 60 s normal duty) || 1.5 x In 60 s heavy duty)
• Phase
  • 3 phase
• Physical Interface
  • Ethernet || 2-wire RS 485
• Protection Type
  • thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-circuit protection drive || motor phase break drive || overvoltages on the DC bus drive || line supply overvoltage drive || line supply undervoltage drive || line supply phase loss drive || overspeed drive || break on the control circuit drive
• Quantity Per Set
  • 1
• Refresh Time
  • relay output R1, R2, R3)5 ms +/- 0.5 ms)
• Relay Output Number
  • 3
• Relay Output Type
  • configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles
• Sampling Duration
  • 2 ms +/- 0.5 ms DI1...DI4) - discrete input || 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output
• Supply
  • external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection
• Transmission Frame
  • RTU
• Transmission Rate
  • 10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
• Type Of Polarization
  • no impedance
• Width
  • 171 mm

Environment

• Ambient Air Temperature For Operation
  • -15-50 °C without derating) || 50-60 °C with derating factor)
• Ambient Air Temperature For Storage
  • -40-70 °C
• Electromagnetic Compatibility
  • electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6
• Insulation Resistance
  • > 1 MOhm 500 V DC for 1 minute to earth
• Maximum Thdi
  • <48 % with external line choke IEC 61000-3-12
• Noise Level
  • 52 dB 86/188/EEC
  • 56 dB
• Operating Altitude
  • <= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m
• Operating Position
  • vertical +/- 10 degree
• Overvoltage Category
  • III
• Pollution Degree
  • 2
  • 2 EN/IEC 61800-5-1
• Power Dissipation In W
  • natural convection 114 W 600 V 4 kHz || forced convection 152 W 600 V 4 kHz
• Product Certifications
  • TÜV || UL || CSA
• Regulation Loop
  • adjustable PID regulator
• Relative Humidity
  • 5-95 % without condensation IEC 60068-2-3
• Shock Resistance
  • 15 gn 11 ms IEC 60068-2-27
• Standards
  • UL 508C || EN/IEC 61800-3 || EN/IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1
• Vibration Resistance
  • 1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6
• Volume Of Cooling Air
  • 103 m3/h

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI1707007EN
• Environmental Disclosure
  • ENVPEP1707007EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Upgradeability
  • Upgraded components available
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Apparent Power
  • 15.9 kVA 600 V normal duty) || 11.5 kVA 600 V heavy duty)
• Asynchronous Motor Control Profile
  • constant torque standard || variable torque standard || optimized torque mode
• Communication Port Protocol
  • Modbus TCP || Ethernet || Modbus serial
• Continuous Output Current
  • 18 A 4 kHz normal duty || 13.5 A 4 kHz heavy duty
• Degree Of Protection
  • UL type 1 UL 508C
• Device Short Name
  • ATV630
• Discrete Input Logic
  • 16 preset speeds
• Emc Filter
  • without EMC filter
• Ip Degree Of Protection
  • IP21IEC 61800-5-1 || IP21IEC 60529
• Line Current
  • 15.3 A 600 V normal duty) || 11.1 A 600 V heavy duty)
• Maximum Horse Power Rating
  • 15 hp 600 V normal duty || 10 hp 600 V heavy duty
• Nominal Switching Frequency
  • 4 kHz
• Option Card
  • slot A communication module, Profibus DP V1 || slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A communication module, CANopen SUB-D 9 || slot A communication module, CANopen screw terminals || slot A/slot B digital and analog I/O extension module || slot A/slot B output relay extension module || slot A communication module, Ethernet IP/Modbus TCP/MD-Link || communication module, BACnet MS/TP || communication module, Ethernet Powerlink
• Product Destination
  • asynchronous motors || synchronous motors
• Product Or Component Type
  • variable speed drive
• Product Specific Application
  • process and utilities
• Prospective Line Isc
  • 70 kA
• Range Of Product
  • Altivar Process ATV600
• Safety Function
  • STO (safe torque off) SIL 3
• Speed Drive Output Frequency
  • 0.1-500 Hz
• Supply Frequency
  • 50...60 Hz - 5...5 %
• Switching Frequency
  • 2...12 kHz adjustable || 4...12 kHz with derating factor
• Synchronous Motor Control Profile
  • permanent magnet motor || synchronous reluctance motor
• Type Of Cooling
  • forced convection
• [Us] Rated Supply Voltage
  • 600 V - 15...10 %
  • 600 V
• Variant
  • standard version
