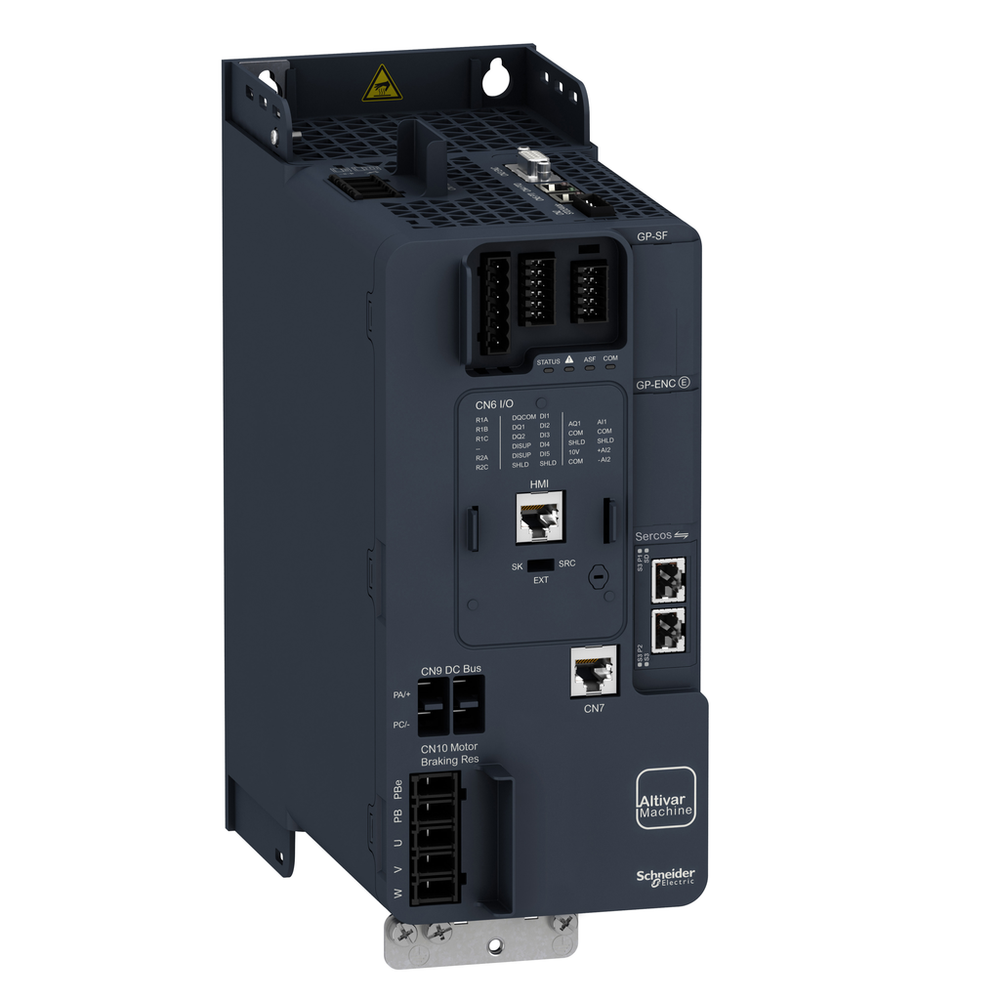

Schneider Electric ATV340U75N4S

Complementary

• 4 Quadrant Operation Possible
  • true
• Acceleration And Deceleration Ramps
  • linear adjustable separately from 0.01...9999 s || S, U or customized
• Analogue Input Number
  • 2
• Analogue Input Type
  • AI1 software-configurable current 0...20 mA 250 Ohm 12 bits || AI1 software-configurable temperature probe or water level sensor || AI1 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI2 software-configurable voltage - 10...10 V DC 31.5 kOhm 12 bits
• Analogue Output Number
  • 2
• Analogue Output Type
  • software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1 0...20 mA 500 Ohm 10 bits
• Apparent Power
  • 17 kVA 480 V normal duty) || 17 kVA 480 V heavy duty)
• Asynchronous Motor Control Profile
  • variable torque standard || constant torque standard || optimized torque mode
• Base Load Current At High Overload
  • 16.5 A
• Base Load Current At Low Overload
  • 24.0 A
• Brake Chopper Integrated
  • true
• Braking To Standstill
  • by DC injection
• Connector Type
  • 3 RJ45
• Continuous Output Current
  • 24 A 4 kHz normal duty || 16.5 A 4 kHz heavy duty
• Data Format
  • 8 bits, configurable odd, even or no parity
• Depth
  • 234.0 mm
• Discrete Input Logic
  • 16 preset speeds
• Discrete Input Number
  • 5
• Discrete Input Type
  • PTI safe torque off 0-30 kHz, 24 V DC 30 V) || DI1...DI5 discrete input, 24 V DC 30 V)3.5 kOhm
• Discrete Output Number
  • 2.0
• Discrete Output Type
  • programmable output DQ1, DQ2 30 V DC 100 mA
• Electrical Connection
  • DC bus screw terminal 4...6 mm² AWG 12...AWG 10 || control screw terminal 0.2...2.5 mm² AWG 24...AWG 12 || motor screw terminal 1.5...6 mm² AWG 14...AWG 10 || line side screw terminal 2.5...6 mm² AWG 12...AWG 10
  • screw terminal 4...6 mm² DC bus || screw terminal 0.2...2.5 mm² control || screw terminal 1.5...6 mm² motor || screw terminal 2.5...6 mm² line side
• Height
  • 270.0 mm
• Line Current
  • 22.0 A 380 V normal duty) || 17.7 A 480 V normal duty) || 25.6 A 380 V heavy duty) || 20.4 A 480 V heavy duty)
  • 25.6 A 380 V without line choke heavy duty) || 20.4 A 480 V without line choke heavy duty) || 22 A 380 V with external line choke normal duty) || 17.7 A 480 V with external line choke normal duty) || 14.6 A 380 V with external line choke heavy duty) || 12.1 A 480 V with external line choke heavy duty)
• Maximum Output Frequency
  • 0.599 kHz
• Maximum Output Voltage
  • 480 V
• Maximum Switching Current
  • relay output R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2C resistive, cos phi = 1 5 A 250 V AC || relay output R2C resistive, cos phi = 1 5 A 30 V DC || relay output R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC
• Maximum Transient Current
  • 26.4 A 60 s normal duty) || 24.8 A 60 s heavy duty) || 32.4 A 2 s normal duty) || 29.7 A 2 s heavy duty)
• Method Of Access
  • slave Modbus RTU
• Minimum Switching Current
  • relay output R1B 5 mA 24 V DC || relay output R2C 5 mA 24 V DC
• Motor Slip Compensation
  • automatic whatever the load || can be suppressed || adjustable || not available in permanent magnet motor law
• Net Weight
  • 3.0 kg
• Nominal Switching Frequency
  • 4 kHz
• Number Of Addresses
  • 1-247
• Output Voltage
  • <= power supply voltage
• Physical Interface
  • 2-wire RS 485
• Pollution Degree
  • 2 EN/IEC 61800-5-1
• Power Dissipation In W
  • natural convection 180 W 380 V 4 kHz heavy duty) || forced convection 180 W 380 V 4 kHz heavy duty) || natural convection 249 W 380 V 4 kHz normal duty) || forced convection 249 W 380 V 4 kHz normal duty)
• Prospective Line Isc
  • 22 kA
• Protection Type
  • thermal protection motor || safe torque off motor || motor phase loss motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent drive || output overcurrent between motor phase and earth drive || output overcurrent between motor phases drive || short-circuit between motor phase and earth drive || short-circuit between motor phases drive || motor phase loss drive || DC Bus overvoltage drive || line supply overvoltage drive || line supply undervoltage drive || input supply loss drive || exceeding limit speed drive || break on the control circuit drive
• Relay Output Number
  • 2
• Relay Output Type
  • relay outputs R1A || relay outputs R1C 100000 cycles || relay outputs R2A || relay outputs R2C 100000 cycles
• Switching Frequency
  • 2...16 kHz adjustable || 4...16 kHz with derating factor
• Synchronous Motor Control Profile
  • permanent magnet motor || reluctance motor
• Transmission Frame
  • RTU
• Transmission Rate
  • 4.8 kbit/s || 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
• Type Of Polarization
  • no impedance
• Width
  • 110.0 mm
• With Safety Function Safe Brake Management (Sbc/Sbt)
  • true
• With Safety Function Safe Direction (Sdi)
  • false
• With Safety Function Safely Limited Position (Slp)
  • false
• With Safety Function Safely Limited Speed (Sls)
  • true
• With Safety Function Safe Operating Stop (Sos)
  • false
• With Safety Function Safe Position (Sp)
  • false
• With Safety Function Safe Programmable Logic
  • false
• With Safety Function Safe Speed Monitor (Ssm)
  • false
• With Safety Function Safe Stop 1 (Ss1)
  • true
• With Safety Function Safe Torque Off (Sto)
  • true
• With Sft Fct Safe Stop 2 (Ss2)
  • false

Environment

• Ambient Air Temperature For Operation
  • -15-50 °C without derating vertical position) || 50-60 °C with derating factor vertical position)
• Ambient Air Temperature For Storage
  • -25-70 °C
• Ambient Air Transport Temperature
  • -40-70 °C
• Assembly Style
  • with heat sink
• Electromagnetic Compatibility
  • electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6
• Environmental Class (During Operation)
  • class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3
• Isolation
  • between power and control terminals
• Marking
  • CE
• Maximum Acceleration Under Shock Impact (During Operation)
  • 70 m/s² at 22 ms
• Maximum Acceleration Under Vibrational Stress (During Operation)
  • 5 m/s² at 9...200 Hz
• Maximum Deflection Under Vibratory Load (During Operation)
  • 1.5 mm at 2...9 Hz
• Noise Level
  • 46.5 dB
• Operating Altitude
  • <= 9842.52 ft (3000 m) with current derating above 1000m
• Operating Position
  • vertical +/- 10 degree
• Overvoltage Category
  • class III
• Permitted Relative Humidity (During Operation)
  • class 3K5 according to EN 60721-3
• Pollution Degree
  • 2
• Product Certifications
  • UL || CSA || TÜV || EAC || CTick
• Regulation Loop
  • adjustable PID regulator
• Standards
  • EN/IEC 61800-3 || EN/IEC 61800-5-1 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || UL 618000-5-1 || UL 508C
• Type Of Cooling
  • forced convection
• Volume Of Cooling Air
  • 76.0 m3/h

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI1609005EN
• Environmental Disclosure
  • ENVPEP1609005EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Pvc Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Communication Port Protocol
  • Sercos || Modbus serial
• Emc Filter
  • class C3 EMC filter integrated
• Ip Degree Of Protection
  • IP20
• Maximum Horse Power Rating
  • 15 hp normal duty || 10 hp heavy duty
• Motor Power Kw
  • 11 kW normal duty || 7.5 kW heavy duty
• Mounting Mode
  • cabinet mount
• Nominal Output Current
  • 16.5 A
• Phase
  • 3 phase
• Product Or Component Type
  • variable speed drive
• Product Specific Application
  • machine
• Range Of Product
  • Altivar Machine ATV340
• Supply Frequency
  • 50...60 Hz +/- 5 %
• [Us] Rated Supply Voltage
  • 380...480 V - 15...10 %
• Variant
  • standard version
