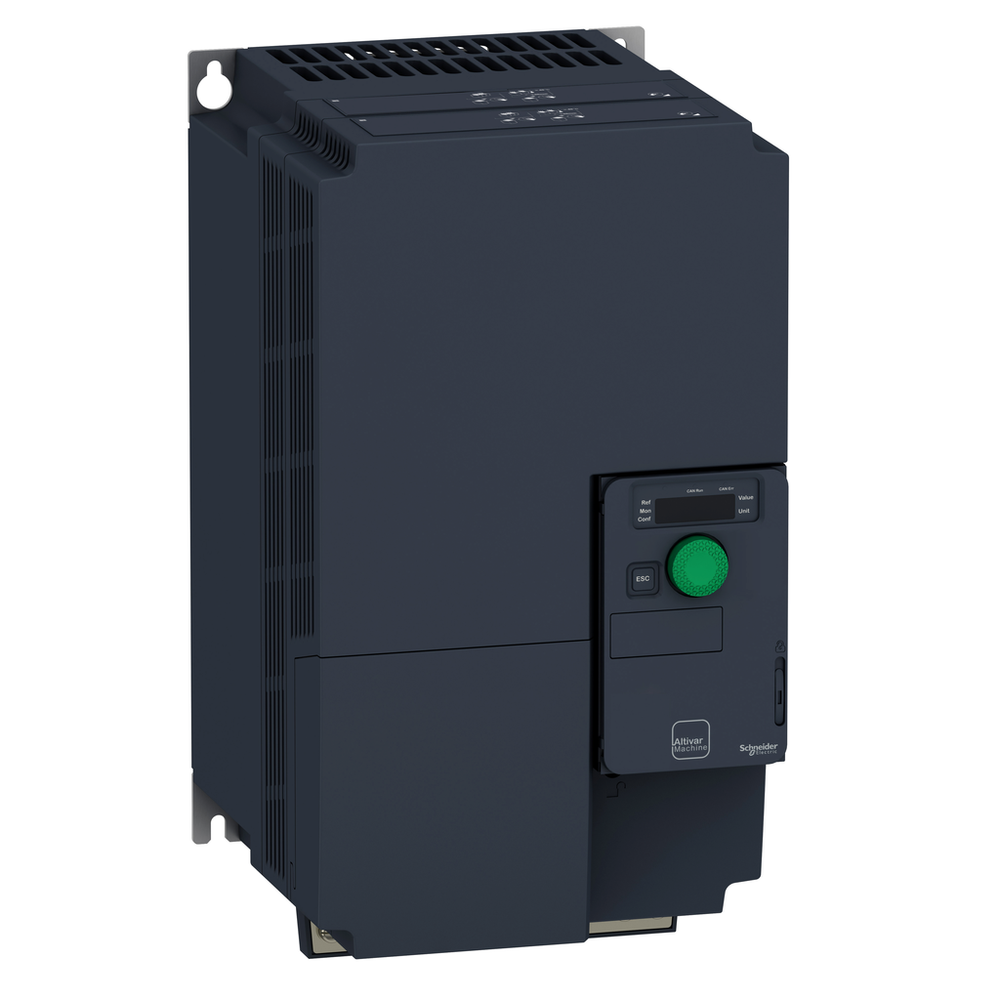

Schneider Electric ATV320D11M3C
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 11kW / 15hp and a rated voltage from 200V to 240V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. It weighs 6.8kg and its dimensions are 180mm wide, 330mm high, 198mm deep. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. The product is delivered in one package. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).variable speed drive, Altivar Machine ATV320, 11kW, 200 to 240V, 3 phases, compact
Schneider Electric ATV320D11M3C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- 4 Quadrant Operation Possible
- true
- Acceleration And Deceleration Ramps
- linear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection
- Analogue Input Number
- 3
- Analogue Input Type
- AI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
- Analogue Output Number
- 1
- Analogue Output Type
- software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
- Apparent Power
- 21.4 kVA 240 V heavy duty)
- Asynchronous Motor Control Profile
- voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points
- Base Load Current At High Overload
- 1.5 A
- Brake Chopper Integrated
- true
- Braking To Standstill
- by DC injection
- Depth
- 198.0 mm
- Discrete Input Logic
- positive logic (source) || negative logic (sink)
- Discrete Input Number
- 7
- Discrete Input Type
- STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
- Discrete Output Number
- 3
- Discrete Output Type
- open collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA
- Height
- 330 mm
- Line Current
- 60.9 A 200 V heavy duty) || 51.4 A 240 V heavy duty)
- Maximum Output Frequency
- 0.599 kHz
- Maximum Output Voltage
- 240 V
- Maximum Switching Current
- relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2A, R2C resistive, cos phi = 1 5 A 250 V AC || relay output R2A, R2C resistive, cos phi = 1 5 A 30 V DC
- Method Of Access
- slave CANopen
- Minimum Switching Current
- relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
- Motor Slip Compensation
- automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)
- Net Weight
- 6.8 kg
- Network Frequency
- 50-60 Hz
- Nominal Switching Frequency
- 4 kHz
- Power Dissipation In W
- fan 468.0 W 200 V 4 kHz
- Prospective Line Isc
- 22 kA
- Protection Type
- input phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive
- Relative Symmetric Network Frequency Tolerance
- 5 %
- Relay Output Type
- configurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C
- Switching Frequency
- 2...16 kHz adjustable || 4...16 kHz with derating factor
- Synchronous Motor Control Profile
- vector control without sensor
- Transient Overtorque
- 170-200 % of nominal motor torque
- Width
- 180 mm
- With Safety Function Safe Brake Management (Sbc/Sbt)
- false
- With Safety Function Safe Direction (Sdi)
- false
- With Safety Function Safely Limited Position (Slp)
- false
- With Safety Function Safely Limited Speed (Sls)
- true
- With Safety Function Safe Operating Stop (Sos)
- false
- With Safety Function Safe Position (Sp)
- false
- With Safety Function Safe Programmable Logic
- false
- With Safety Function Safe Speed Monitor (Ssm)
- false
- With Safety Function Safe Stop 1 (Ss1)
- true
- With Safety Function Safe Torque Off (Sto)
- true
- With Sft Fct Safe Stop 2 (Ss2)
- false
Environment
- Ambient Air Temperature For Operation
- -10-50 °C without derating || 50-60 °C with derating factor
- Ambient Air Temperature For Storage
- -25-70 °C
- Ambient Air Transport Temperature
- -25-70 °C
- Electromagnetic Compatibility
- electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6 || voltage dips and interruptions immunity test IEC 61000-4-11
- Environmental Class (During Operation)
- class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
- Marking
- CE || ATEX || UL || CSA || EAC || RCM
- Maximum Acceleration Under Shock Impact (During Operation)
- 150 m/s² at 11 ms
- Maximum Acceleration Under Vibrational Stress (During Operation)
- 10 m/s² at 13...200 Hz
- Maximum Deflection Under Vibratory Load (During Operation)
- 1.5 mm at 2...13 Hz
- Operating Position
- vertical +/- 10 degree
- Overvoltage Category
- III
- Permitted Relative Humidity (During Operation)
- class 3K5 according to EN 60721-3
- Pollution Degree
- 2
- Product Certifications
- CE || ATEX || NOM || GOST || EAC || RCM || KC
- Regulation Loop
- adjustable PID regulator
- Speed Accuracy
- +/- 10 % of nominal slip 0.2 Tn to Tn
- Standards
- IEC 61800-5-1
- Volume Of Cooling Air
- 156.0 m3/h
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1604023EN
- Environmental Disclosure
- ENVPEP1604023EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Upgradeability
- Upgraded components available
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Communication Port Protocol
- Modbus serial || CANopen
- Emc Filter
- without EMC filter
- Format Of The Drive
- compact
- Ip Degree Of Protection
- IP20
- Motor Power Kw
- 11 kW heavy duty
- Mounting Mode
- wall mount
- Nominal Output Current
- 54.0 A
- Option Card
- communication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, DeviceNet
- Product Or Component Type
- variable speed drive
- Product Specific Application
- complex machines
- Range Of Product
- Altivar Machine ATV320
- [Us] Rated Supply Voltage
- 200...240 V - 15...10 %
- Variant
- standard version
