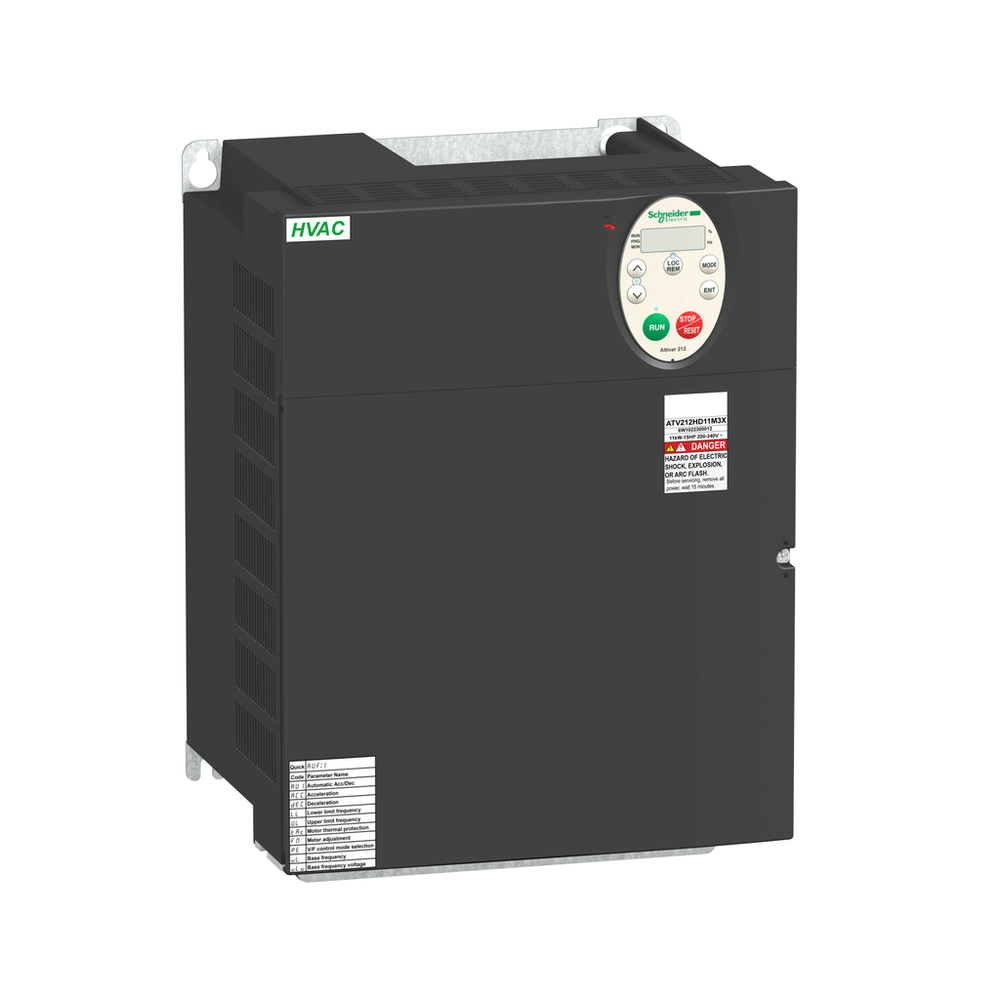

Schneider Electric ATV212HD15M3X

Complementary

• Acceleration And Deceleration Ramps
  • automatic based on the load || linear adjustable separately from 0.01 to 3200 s
• Accuracy
  • +/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
• Air Flow
  • 215 m3/h
• Analogue Input Number
  • 2
• Analogue Input Type
  • VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
• Analogue Output Number
  • 1
• Analogue Output Type
  • FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
• Apparent Power
  • 23.2 kVA 240 V
• Asynchronous Motor Control Profile
  • flux vector control without sensor, standard || voltage/frequency ratio, 5 points || voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) || voltage/frequency ratio, 2 points || voltage/frequency ratio - Energy Saving, quadratic U/f
• Braking To Standstill
  • by DC injection
• Communication Service
  • write multiple registers (16) 2 words maximum || write single register (06) || read holding registers (03) 2 words maximum || time out setting from 0.1 to 100 s || read device identification (43) || monitoring inhibitable
• Connector Type
  • 1 RJ45 || 1 open style
• Continuous Output Current
  • 61 A 230 V
• Data Format
  • 8 bits, 1 stop, odd even or no configurable parity
• Depth
  • 190 mm
• Dielectric Strength
  • 2830 V DC between earth and power terminals || 4230 V DC between control and power terminals
• Discrete And Process Manufacturing
  • building - HVAC compressor for scroll || building - HVAC fan || building - HVAC pump
• Discrete Input Logic
  • positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
• Discrete Input Type
  • F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
• Discrete Output Number
  • 2
• Discrete Output Type
  • configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
• Electrical Connection
  • VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 25-25 mm² / AWG 3
• Frequency Resolution
  • display unit 0.1 Hz || analog input 0.024/50 Hz
• Height
  • 330 mm
• Insulation Resistance
  • >= 1 mOhm 500 V DC for 1 minute
• Isolation
  • electrical between power and control
• Linearity Error
  • VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
• Local Signalling
  • for DC bus energized 1 LED (red)
• Maximum Switching Current
  • 5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
• Maximum Transient Current
  • 67.1 A 60 s
• Minimum Switching Current
  • 3 mA 24 V DC configurable relay logic
• Motor Slip Compensation
  • automatic whatever the load || adjustable || not available in voltage/frequency ratio motor control
• Motor Starter Type
  • variable speed drive
• Net Weight
  • 11.55 kg
• Network Frequency
  • 47.5...63 Hz
• Nominal Switching Frequency
  • 12 kHz
• Number Of Addresses
  • 1-247
• Option Card
  • communication card LonWorks
• Output Voltage
  • <= power supply voltage
• Physical Interface
  • 2-wire RS 485
• Power Dissipation In W
  • 629 W
• Power Range
  • 15-25 kW 200-240 V 3 phase
• Prospective Line Isc
  • 22 kA
• Protection Type
  • overheating protection drive || line supply undervoltage drive || against input phase loss drive || thermal protection motor || motor phase break motor || with PTC probes motor || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit drive || against exceeding limit speed drive || line supply overvoltage and undervoltage drive
• Response Time
  • FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
• Sampling Duration
  • 2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
• Specific Application
  • HVAC
• Speed Accuracy
  • +/- 10 % of nominal slip 0.2 Tn to Tn
• Speed Drive Output Frequency
  • 0.5-200 Hz
• Speed Range
  • 1-10
• Supply
  • internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
• Switching Frequency
  • 6...16 kHz adjustable || 12...16 kHz with derating factor
• Tightening Torque
  • 0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) || 4.5 N.m, 40 lb.in L1/R, L2/S, L3/T)
• Torque Accuracy
  • +/- 15 %
• Transient Overtorque
  • 120-120 % of nominal motor torque +/- 10 % 60 s
• Transmission Frame
  • RTU
• Transmission Rate
  • 9600 bps or 19200 bps
• Type Of Cable
  • without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
• Type Of Polarization
  • no impedance
• Width
  • 245 mm

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • -10-40 °C without derating) || 40-50 °C with derating factor)
• Ambient Air Temperature For Storage
  • -25-70 °C
• Assembly Style
  • with heat sink
• Electromagnetic Compatibility
  • electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6 || voltage dips and interruptions immunity test IEC 61000-4-11
• Environmental Characteristic
  • classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
• Ip Degree Of Protection
  • IP20 on upper part without blanking plate on cover EN/IEC 61800-5-1 || IP20 on upper part without blanking plate on cover EN/IEC 60529 || IP21 EN/IEC 61800-5-1 || IP21 EN/IEC 60529 || IP41 on upper part EN/IEC 61800-5-1 || IP41 on upper part EN/IEC 60529
• Marking
  • CE
• Noise Level
  • 54 dB 86/188/EEC
• Operating Altitude
  • 3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
• Operating Position
  • vertical +/- 10 degree
• Pollution Degree
  • 2 IEC 61800-5-1
• Product Certifications
  • C-tick || NOM 117 || CSA || UL
• Regulation Loop
  • adjustable PI regulator
• Relative Humidity
  • 5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
• Shock Resistance
  • 15 gn 11 ms IEC 60068-2-27
• Standards
  • EN 61800-3 environments 1 category C2 || IEC 61800-3 environments 2 category C1 || IEC 61800-5-1 || EN 61800-3 environments 2 category C1 || EN 61800-5-1 || EN 61800-3 environments 1 category C1 || IEC 61800-3 environments 1 category C1 || IEC 61800-3 environments 2 category C3 || IEC 61800-3 environments 1 category C2 || EN 61800-3 environments 2 category C2 || EN 61800-3 environments 2 category C3 || IEC 61800-3 environments 2 category C2 || EN 61800-3 environments 1 category C3 || IEC 61800-3 environments 1 category C3 || UL Type 1 || EN 61800-3 || IEC 61800-3
• Vibration Resistance
  • 1.5 mm 3-13 Hz)EN/IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Communication Port Protocol
  • APOGEE FLN || METASYS N2 || Modbus || LonWorks || BACnet
• Device Short Name
  • ATV212
• Emc Filter
  • without EMC filter
• Ip Degree Of Protection
  • IP21
• Line Current
  • 45.5 A 240 V || 56.1 A 200 V
• Maximum Horse Power Rating
  • 20 hp
• Motor Power Kw
  • 15 kW
• Phase
  • 3 phase
• Product Destination
  • asynchronous motors
• Product Or Component Type
  • variable speed drive
• Product Specific Application
  • pumps and fans in HVAC
• Range Of Product
  • Altivar 212
• Supply Frequency
  • 50...60 Hz - 5...5 %
• Supply Voltage Limits
  • 170-264 V
• [Us] Rated Supply Voltage
  • 200...240 V - 15...10 %
