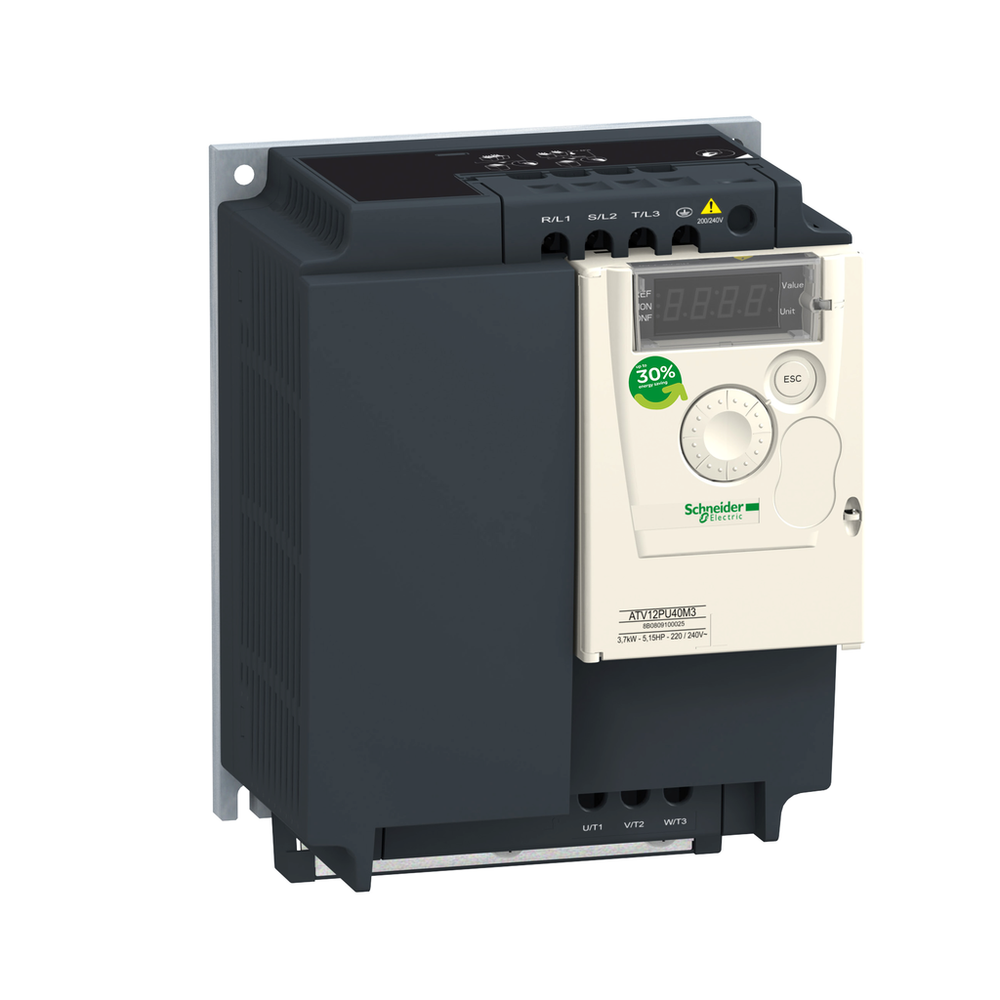

Schneider Electric ATV12PU40M3

Complementary

• 4 Quadrant Operation Possible
  • false
• Acceleration And Deceleration Ramps
  • S || linear from 0 to 999.9 s || U
• Analogue Input Number
  • 1
• Analogue Output Number
  • 1
• Apparent Power
  • 8.3 kVA 240 V heavy duty)
• Asynchronous Motor Control Profile
  • quadratic voltage/frequency ratio || sensorless flux vector control || voltage/frequency ratio (V/f)
• Base Load Current At High Overload
  • 16.7 A
• Brake Chopper Integrated
  • false
• Braking To Standstill
  • by DC injection
• Communication Service
  • read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
• Connector Type
  • 1 RJ45
• Continuous Output Current
  • 16.7 A 4 kHz
• Data Format
  • 8 bits, configurable odd, even or no parity
• Depth
  • 100.2 mm
• Discrete Input Number
  • 4
• Discrete Output Number
  • 2
• Frequency Resolution
  • analog input converter A/D, 10 bits || display unit 0.1 Hz
• Height
  • 184 mm
• Insulation
  • electrical between power and control
• Linearity Error
  • +/- 0.3 % of maximum value analogue input
• Line Current
  • 23.8 A 100 V heavy duty) || 19.9 A 120 V heavy duty)
• Maximum Output Frequency
  • 4 kHz
• Maximum Output Voltage
  • 240 V
• Maximum Transient Current
  • 25.0 A 60 s heavy duty) || 27.6 A 2 s heavy duty)
• Method Of Access
  • server Modbus serial
• Motor Slip Compensation
  • preset in factory || adjustable
• Net Weight
  • 1.6 kg
• Network Frequency
  • 50-60 Hz
• Nominal Switching Frequency
  • 4 kHz
• Number Of Addresses
  • 1-247
• Physical Interface
  • 2-wire RS 485
• Power Dissipation In W
  • natural 128.0 W
• Prospective Line Isc
  • 5 kA
• Protection Type
  • line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by continuous calculation of I²t
• Quantity Per Set
  • set of 1
• Relative Symmetric Network Frequency Tolerance
  • 5 %
• Relay Output Number
  • 1
• Sampling Duration
  • 20 ms +/- 1 ms logic input || 10 ms analogue input
• Speed Drive Output Frequency
  • 0.5-400 Hz
• Speed Range
  • 1-20
• Switching Frequency
  • 2...16 kHz adjustable || 4...16 kHz with derating factor
• Tightening Torque
  • 1.2 N.m
• Time Constant
  • 20 ms +/- 1 ms for reference change
• Transient Overtorque
  • 150-170 % of nominal motor torque depending on drive rating and type of motor
• Transmission Frame
  • RTU
• Transmission Rate
  • 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
• Type Of Polarization
  • no impedance
• Width
  • 140 mm
• With Safety Function Safe Brake Management (Sbc/Sbt)
  • false
• With Safety Function Safe Direction (Sdi)
  • false
• With Safety Function Safely Limited Position (Slp)
  • false
• With Safety Function Safely Limited Speed (Sls)
  • false
• With Safety Function Safe Operating Stop (Sos)
  • false
• With Safety Function Safe Position (Sp)
  • false
• With Safety Function Safe Programmable Logic
  • false
• With Safety Function Safe Speed Monitor (Ssm)
  • false
• With Safety Function Safe Stop 1 (Ss1)
  • false
• With Safety Function Safe Torque Off (Sto)
  • false
• With Sft Fct Safe Stop 2 (Ss2)
  • false

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
• Ambient Air Temperature For Storage
  • -25-70 °C
• Ambient Air Transport Temperature
  • -25-70 °C
• Assembly Style
  • on base plate
• Electromagnetic Compatibility
  • electrical fast transient/burst immunity test level 4 EN/IEC 61000-4-4 || electrostatic discharge immunity test level 3 EN/IEC 61000-4-2 || immunity to conducted disturbances level 3 EN/IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity test level 3 EN/IEC 61000-4-3 || surge immunity test level 3 EN/IEC 61000-4-5 || voltage dips and interruptions immunity test EN/IEC 61000-4-11
• Electromagnetic Emission
  • radiated emissions environment 1 category C2 EN/IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions EN/IEC 61800-3
• Environmental Class (During Operation)
  • class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
• Marking
  • CE
• Maximum Acceleration Under Shock Impact (During Operation)
  • 150 m/s² at 11 ms
• Maximum Acceleration Under Vibrational Stress (During Operation)
  • 10 m/s² at 13...200 Hz
• Maximum Deflection Under Vibratory Load (During Operation)
  • 1.5 mm at 2...13 Hz
• Noise Level
  • 0 dB
• Operating Altitude
  • <= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m
• Operating Position
  • vertical +/- 10 degree
• Overvoltage Category
  • class III
• Pollution Degree
  • 2
• Product Certifications
  • NOM || CSA || C-tick || UL || GOST || RCM || KC
• Regulation Loop
  • adjustable PID regulator
• Relative Humidity
  • 5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
• Shock Resistance
  • 15 gn 11 ms EN/IEC 60068-2-27
• Standards
  • UL 508C || UL 618000-5-1 || EN/IEC 61800-5-1 || EN/IEC 61800-3
• Vibration Resistance
  • 1 gn 13-200 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - EN/IEC 60068-2-6

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Communication Port Protocol
  • Modbus
• Emc Filter
  • without EMC filter
• Ip Degree Of Protection
  • IP20
• Maximum Horse Power Rating
  • 5 hp
• Motor Power Kw
  • 4 kW
• Mounting Mode
  • cabinet mount
• Nominal Output Current
  • 16.7 A
• Product Or Component Type
  • variable speed drive
• Product Specific Application
  • simple machine
• Range Of Product
  • Altivar 12
• Supply Frequency
  • 50/60 Hz +/- 5 %
• [Us] Rated Supply Voltage
  • 200...240 V - 15...10 %
