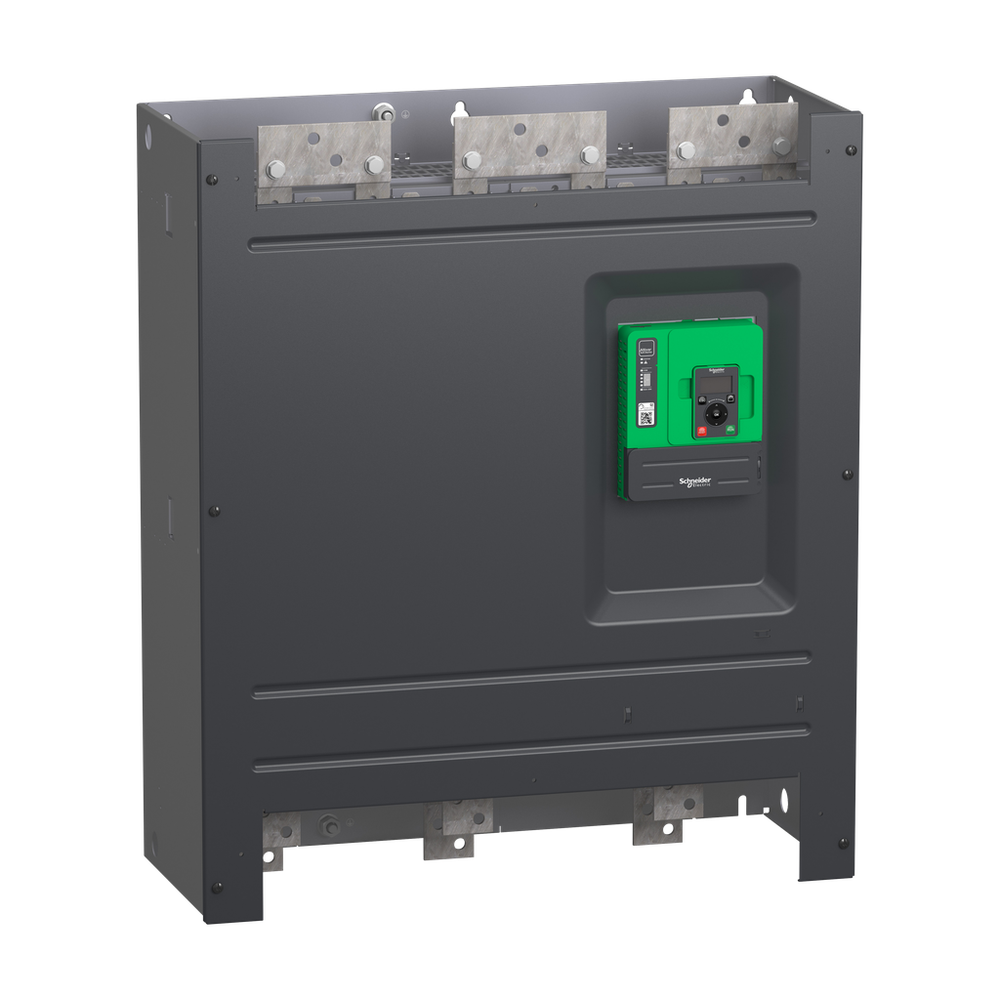

Schneider Electric ATS480C79Y

Complementary

• Accuracy Class
  • class 10E
• Analogue Input Number
  • 1
• Analogue Output Number
  • 1
• Analogue Output Type
  • current output AQ1 0...20 mA or 0...10 V 500 Ohm
• Apparent Power
  • 0.2 kVA
• Communication Data Link
  • serial
• Communication Port Protocol
  • Modbus serial
• Connector Type
  • 1 RJ45
• Data Format
  • 8 bits, configurable odd, even or no parity
• Depth
  • 329.0 mm
• Device Connection
  • in the motor supply line || to the motor delta terminals
• Discrete Input Logic
  • programmable digital input < 5 V
• Discrete Input Number
  • 4
• Discrete Input Type
  • STOP) logic inputs, 3500 Ohm || RUN) logic inputs, 3500 Ohm || DI3) programmable as logic input, 3500 Ohm || DI4) programmable as logic input, 3500 Ohm
• Discrete Output Number
  • 2
• Discrete Output Type
  • DQ1) programmable digital output <= 30 V || DQ2) programmable digital output <= 30 V
• Display Screen Available
  • true
• Function Available
  • external bypass control || pre-heating || smoke extraction || multi-motor cascade || second motor set || user management || ports and services hardening || security event logging || cybersecure firmware update || single direction
• Height
  • 890.0 mm
• [In] Rated Current Pwr Loss Specifctn
  • 790.0 A
• Integrated Motor Overload Protection
  • true
• Marking
  • CE || CCC || UKCA || EAC || RCM || cULus
• Maximum Switching Current
  • relay outputs 2 A 250 V AC || relay outputs 2 A 30 V DC || relay outputs
• Method Of Access
  • slave Modbus serial
• Minimum Switching Current
  • 100 mA 12 V DC relay outputs
• Net Weight
  • 115.0 kg
• Number Of Addresses
  • 0-227 Modbus serial
• Operating Position
  • vertical +/- 10 degree
• Output Current Drift
  • 150-700 %
• Physical Interface
  • 2-wire RS 485
• Power Loss Per Device Current Dependent
  • 2517.0 W
• Power Loss Static Current Independent
  • 25.0 W
• Product Certifications
  • CE || cULus || CCC || UKCA || RCM || EAC || DNV || ABS || BV || CCS
• Protection Type
  • phase failure line || integrated thermal protection motor || thermal protection starter || current overload motor || underload motor || excessive starting time, locked rotor motor || motor phase loss motor || line supply phase loss line || line supply phase loss motor || thermal protection motor
• Relay Output Number
  • 3
• Relay Output Type
  • relay outputs R1A 1 NO || relay outputs R1B 1 NO || relay outputs RIC NO/NC programmable
• Standards
  • IEC 60947-4-2 || UL 60947-4-2 || IEC 60664-1
• Transmission Frame
  • RTU
• Transmission Rate
  • 1200...256000 bit/s
• Type Of Polarization
  • no impedance Modbus serial
• [Uc] Control Circuit Voltage
  • 110...250 V AC 50/60 Hz - 15...10 %
• Width
  • 770.0 mm

Environment

• Ambient Air Temperature For Operation
  • 40-60 °C with current derating of 2 % per °C) || -15-40 °C without derating)
• Ambient Air Temperature For Storage
  • -25-70 °C
• Electromagnetic Compatibility
  • conducted and radiated emissions level A IEC 60947-4-2 || conducted and radiated emissions with bypass level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-11 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 || voltage/current impulse level 3 IEC 61000-4-5
• Environmental Class (During Operation)
  • class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
• Maximum Acceleration Under Shock Impact (During Operation)
  • 150 m/s² at 11 ms
• Maximum Acceleration Under Shock Load (During Storage)
  • 100 m/s² at 11 ms
• Maximum Acceleration Under Shock Load (During Transport)
  • 100 m/s² at 11 ms
• Maximum Acceleration Under Vibrational Stress (During Operation)
  • 10 m/s² at 13...200 Hz
• Maximum Acceleration Under Vibratory Load (During Storage)
  • 15 m/s² at 200...500 Hz || 10 m/s² at 9...200 Hz
• Maximum Acceleration Under Vibratory Load (During Transport)
  • 15 m/s² at 200...500 Hz || 10 m/s² at 9...200 Hz
• Maximum Deflection Under Vibratory Load (During Operation)
  • 1.5 mm at 2...13 Hz
• Maximum Deflection Under Vibratory Load (During Storage)
  • 1.75 mm at 2...9 Hz
• Maximum Deflection Under Vibratory Load (During Transport)
  • 1.75 mm at 2...9 Hz
• Operating Altitude
  • <= 3280.84 ft (1000 m) without derating || > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m
• Pollution Degree
  • level 3
• Relative Humidity
  • 0-95 % without condensation or dripping water IEC 60068-2-3
• [Uimp] Rated Impulse Withstand Voltage
  • 6 kV
• [Ui] Rated Insulation Voltage
  • 690 V

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI2102014EN
• Environmental Disclosure
  • ENVPEP2102014EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Upgradeability
  • Upgraded components available
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Device Short Name
  • ATS480
• [Ie] Rated Operational Current
  • normal duty 790.0 A 40 °C)
• Ip Degree Of Protection
  • IP00
• Maximum Horse Power Rating
  • 250.0 hp 208 V normal duty || 200.0 hp 208 V heavy duty || 300.0 hp 230 V normal duty || 250.0 hp 230 V heavy duty || 600.0 hp 460 V normal duty || 500.0 hp 460 V heavy duty || 800.0 hp 575 V normal duty || 600.0 hp 575 V heavy duty
• Maximum Permanent Current
  • 660.0 A at 40 °C heavy duty
• Motor Power Kw
  • 220.0 kW 230 V in the motor supply line normal duty || 400.0 kW 400 V in the motor supply line normal duty || 355.0 kW 400 V in the motor supply line heavy duty || 500.0 kW 440 V in the motor supply line normal duty || 400.0 kW 440 V in the motor supply line heavy duty || 500.0 kW 500 V in the motor supply line normal duty || 500.0 kW 525 V in the motor supply line normal duty || 710.0 kW 660 V in the motor supply line normal duty || 630.0 kW 660 V in the motor supply line heavy duty || 710.0 kW 690 V in the motor supply line normal duty || 630.0 kW 690 V in the motor supply line heavy duty || 355.0 kW 230 V to the motor delta terminals normal duty || 315.0 kW 230 V to the motor delta terminals heavy duty || 630.0 kW 400 V to the motor delta terminals normal duty || 500.0 kW 400 V to the motor delta terminals heavy duty
• Option Card
  • communication module Profibus DP V1 || communication module PROFINET || communication module Modbus TCP/EtherNet/IP || communication module CANopen daisy chain || communication module CANopen Sub-D || communication module CANopen open style
• Phase
  • 3 phase
• Product Destination
  • asynchronous motors
• Product Or Component Type
  • soft starter
• Product Specific Application
  • process and infrastructures
• Range Of Product
  • Altivar Soft Starter ATS480
• Supply Frequency
  • 50...60 Hz - 20...20 %
• Torque Control
  • true
• [Us] Rated Supply Voltage
  • 208...690 V - 15...10 %
• Utilisation Category
  • AC-3A || AC-53A
