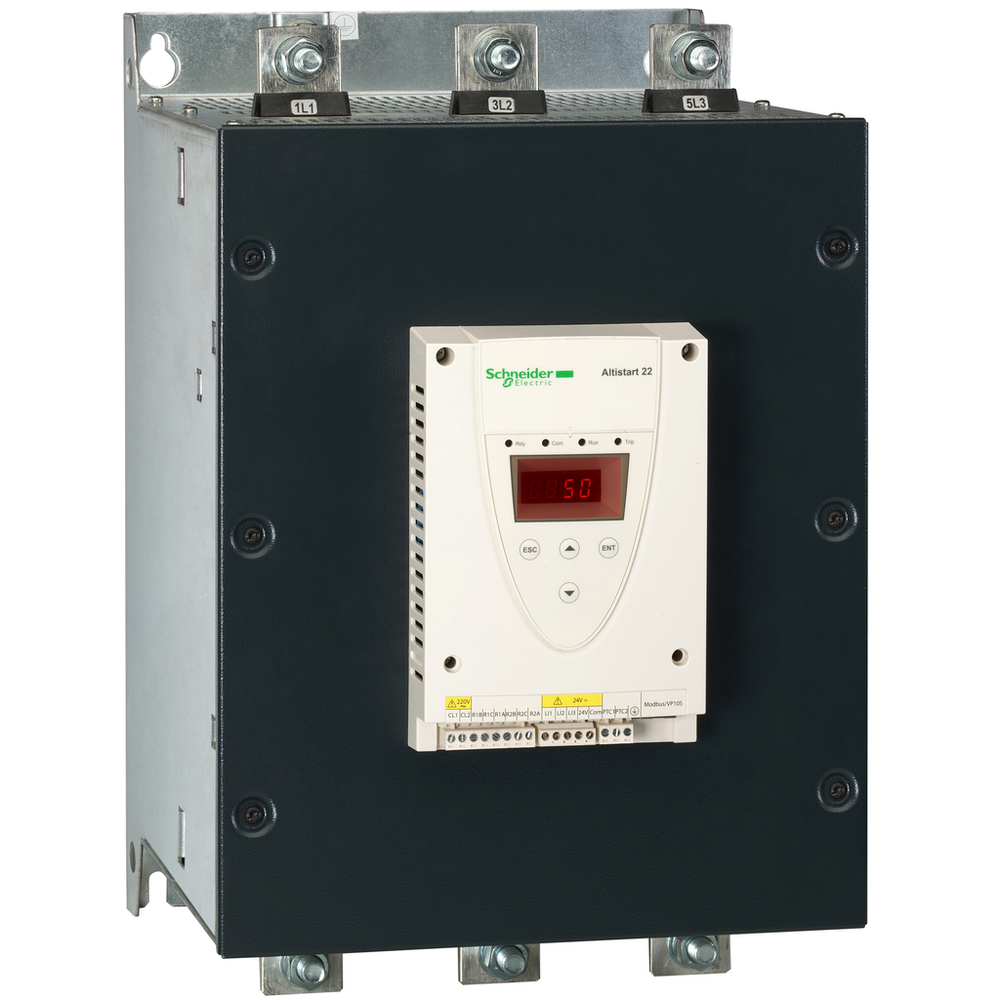

Schneider Electric ATS22C48S6U
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 480A, a rated power from 150HP to 400HP and a rated voltage from 230V to 575V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.soft starter for asynchronous motor, Altistart 22, control 110V, 208 to 575V, 150 to 400hp
Schneider Electric ATS22C48S6U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Assembly Style
- with heat sink
- Communication Data Link
- serial
- Communication Port Protocol
- Modbus
- Connector Type
- 1 RJ45
- Control Circuit Consumption
- 20 W
- Depth
- 339.7 mm
- Device Connection
- in the motor supply line
- Discrete Input Logic
- positive logic LI1, LI2, LI3 < 20 V <= 15 mA > 79 V, <= 2 mA
- Discrete Input Number
- 3
- Discrete Input Type
- LI1, LI2, LI3) logic, 5 mA 20 kOhm
- Discrete Input Voltage
- 110 V <= 121 V
- Discrete Output Number
- 2
- Discrete Output Type
- relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O || relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
- Function Available
- internal bypass
- Height
- 455 mm
- Installed Device
- 31
- Marking
- CE
- Maximum Switching Current
- 5 A 250 V AC resistive 1 relay outputs || 5 A 30 V DC resistive 1 relay outputs || 2 A 250 V AC inductive 0.4 20 ms relay outputs || 2 A 30 V DC inductive 7 ms relay outputs
- Minimum Switching Current
- 100 mA 12 V DC relay outputs)
- Net Weight
- 50 kg
- Network Frequency
- 45...66 Hz
- Operating Position
- vertical +/- 10 degree
- Output Current
- 0.4...1 Icl adjustable
- Physical Interface
- RS485 multidrop
- Protection Type
- phase failure line || thermal protection motor || thermal protection starter
- Ptc Probe Input
- 750 Ohm
- Supply Frequency
- 50...60 Hz - 10...10 %
- Supply Voltage Limits
- 177-660 V
- Transmission Rate
- 4800, 9600 or 19200 bps
- Type Of Cooling
- forced convection
- [Uc] Control Circuit Voltage
- 110 V - 15...10 % 50/60 Hz
- Width
- 304 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-40 °C without derating) || 40-60 °C with current derating 2.2 % per °C)
- Ambient Air Temperature For Storage
- -25-70 °C
- Electromagnetic Compatibility
- conducted and radiated emissions level A IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 || voltage/current impulse level 3 IEC 61000-4-5
- Noise Level
- 56 dB
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating || > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
- Pollution Degree
- level 2 IEC 60664-1
- Product Certifications
- C-tick || CCC || UL || CSA || GOST
- Relative Humidity
- 0-95 % without condensation or dripping water EN/IEC 60068-2-3
- Shock Resistance
- 15 gn 11 ms EN/IEC 60068-2-27
- Standards
- EN/IEC 60947-4-2
- Vibration Resistance
- 1 gn 13-200 Hz)EN/IEC 60068-2-6 || 1.5 mm 2-13 Hz)EN/IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Component Name
- ATS22
- Factory Setting Current
- 414 A
- Icl Starter Rating
- 480 A connection in the motor supply line for standard applications
- Ip Degree Of Protection
- IP00
- Maximum Horse Power Rating
- 150 hp 208 V || 350 hp 460 V || 400 hp 575 V
- Phase
- 3 phase
- Power Dissipation In W
- 218 W for standard applications
- Product Destination
- asynchronous motors
- Product Or Component Type
- soft starter
- Product Specific Application
- pumps and fans
- Range Of Product
- Altistart 22
- Type Of Start
- start with torque control (current limited to 3.5 In)
- [Us] Rated Supply Voltage
- 208...600 V - 15...10 %
- Utilisation Category
- AC-53A
