Schneider Electric ATS01N109FT
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description

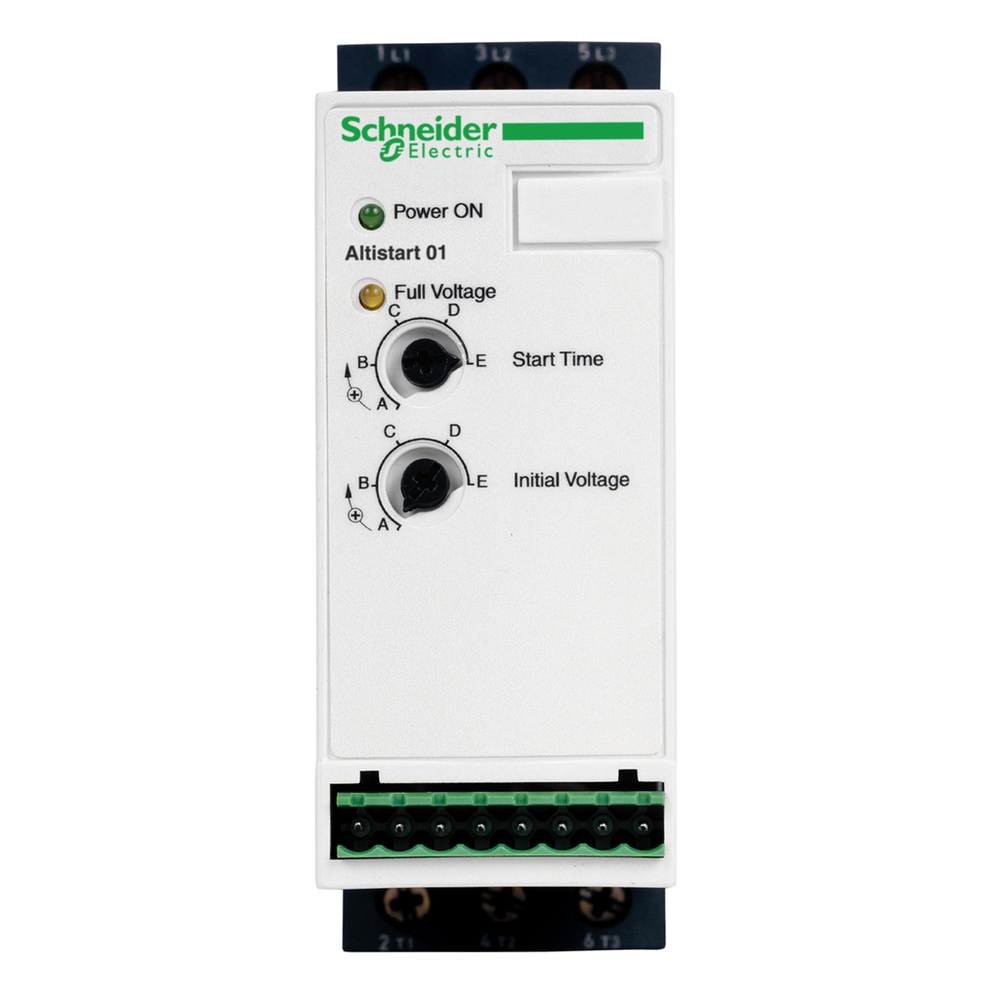

This Altistart 01 soft starter is DIN rail mounted and can feed single or 3-phase asynchronous motors with a rating up to 9A. This Altistart 01 can be used for a motor rated power up to 4kW or 5hp for 3-phase (110V to 480V AC) and up to 1.1kW for single phase (110V to 230V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.soft starter for asynchronous motor, Altistart 01, ATS01, 9A, 110 to 480V, 1.1 to 4kW
Schneider Electric ATS01N109FT is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Assembly Style
- with heat sink
- Compatibility Code
- ATS01N1
- Depth
- 131 mm
- Discrete Output Current
- 2 A DC-13 || 3 A AC-15
- Electrical Connection
- 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit || screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit || screw connector - rigid 1 0.5...2.5 mm² AWG 14 control circuit || 4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit || screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit || screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit || 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit || screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit || 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit || 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit
- Function Available
- integrated bypass
- Height
- 124 mm
- Marking
- CE
- Motor Starter Type
- soft starter
- Net Weight
- 0.28 kg
- Network Frequency
- 47.5...63 Hz
- Operating Position
- vertical +/- 10 degree
- Output Voltage
- <= power supply voltage
- Power Range
- 1.1-2 kW 200-240 V 1 phase || 2.2-3 kW 200-240 V 3 phase || 4-6 kW 380-440 V 3 phase
- Starting Time
- 1 s / 100 || 5 s / 20 || adjustable from 1 to 5 s
- Starting Torque
- 30...80 % of starting torque of motor connected directly on the line supply
- Supply Frequency
- 50...60 Hz - 5...5 %
- Supply Voltage Limits
- 99-528 V
- Tightening Torque
- 0.5-0.5 N.m || 1.9-2.5 N.m
- [Uc] Control Circuit Voltage
- 110 V AC +/- 10 % 35 mA || 24 V AC/DC +/- 10 % 30 mA || 240 V AC +/- 10 % 80 mA
- Width
- 45 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-40 °C without derating) || 40-50 °C with current derating of 2 % per °C)
- Ambient Air Temperature For Storage
- -25-70 °C EN/IEC 60947-4-2
- Electromagnetic Compatibility
- conducted and radiated emissions level B CISPR 11 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 || micro-cuts and voltage fluctuation IEC 61000-4-11 || voltage/current impulse level 3 IEC 61000-4-5 || conducted and radiated emissions level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || EMC immunity EN 50082-1 || EMC immunity EN 50082-2 || harmonics IEC 1000-3-2 || harmonics IEC 1000-3-4 || immunity to conducted interference caused by radio-electrical fields level 3 IEC 61000-4-6
- Ip Degree Of Protection
- IP20
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating || > 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
- Pollution Degree
- 2 EN/IEC 60947-4-2
- Product Certifications
- C-tick || B44.1-96/ASME A17.5 for starter wired to the motor delta terminal || GOST || CSA || CCC || UL
- Relative Humidity
- 5-95 % without condensation or dripping water EN/IEC 60068-2-3
- Shock Resistance
- 15 gn 11 ms EN/IEC 60068-2-27
- Standards
- EN/IEC 60947-4-2
- Vibration Resistance
- 1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Current Consumption
- 45 A at nominal load
- Device Short Name
- ATS01
- Icl Starter Rating
- 9 A
- Maximum Horse Power Rating
- 1 hp, 3 phase 210 V || 2 hp, 3 phase 230 V || 5 hp, 3 phase 460 V
- Motor Power Kw
- 4 kW, 3 phase 400 V || 1.5 kW, 3 phase 230 V || 1.1 kW, 1 phase 230 V
- Phase
- 1 phase
- Power Dissipation In W
- 1 W at full load and at end of starting || 46 W in transient state
- Product Destination
- asynchronous motors
- Product Or Component Type
- soft starter
- Product Specific Application
- simple machine
- Range Of Product
- Altistart 01
- Type Of Start
- start with voltage ramp
- [Us] Rated Supply Voltage
- 110...480 V - 10...10 %
- Utilisation Category
- AC-53B EN/IEC 60947-4-2
