Schneider Electric ASILUFC5
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

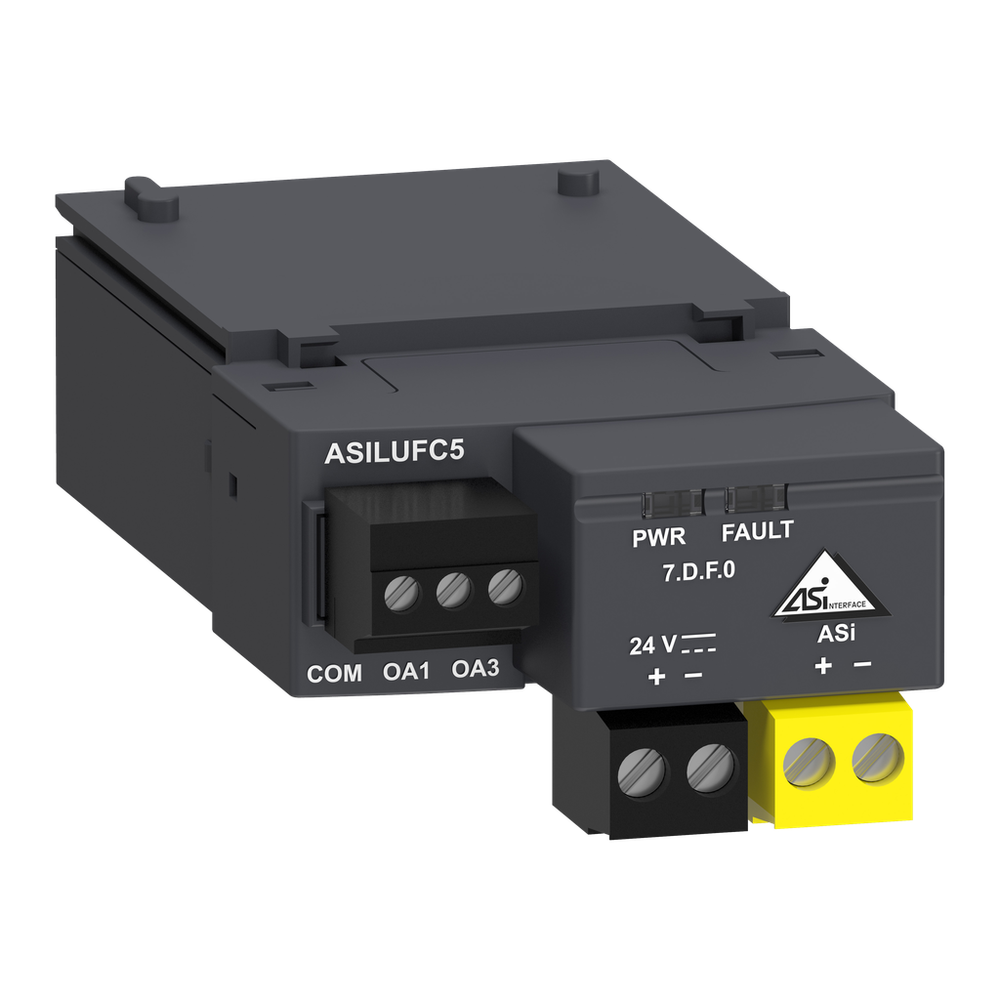

TeSys U communication module for AS-Interface bus, to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a yellow 2-point plug-in connector for connection to an AS-I network (limited to 31 slaves), a black 2-point plug-in connector for connection to an external 24V DC supply. On front side, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11C for a LUB base or LU9MRC for a LU2B base. It displays 2 LEDs indicating 24V voltage presence (PWR) and communication status (FAULT). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).AS-Interface communication module, TeSys Ultra, 24VDC
Schneider Electric ASILUFC5 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Addressing
- 31 slaves
- Bus Type
- AS-Interface
- Communication Port Protocol
- Profibus DP
- Connection Pitch
- 3.81 mm output || 5.08 mm input
- Connections - Terminals
- input screw clamp terminals 1 0.2-1.5 mm²flexible without cable end || input screw clamp terminals 1 0.2-1.5 mm²rigid without cable end || input screw clamp terminals 1 0.25-1.5 mm²flexible with cable end || input screw clamp terminals 2 0.2-1 mm²flexible without cable end || input screw clamp terminals 2 0.2-1 mm²rigid without cable end || input screw clamp terminals 2 0.25-1 mm²flexible with cable end || input screw clamp terminals 2 0.5-1 mm²flexible with cable end || output screw clamp terminals 1 0.14-1 mm²flexible without cable end || output screw clamp terminals 1 0.14-1 mm²rigid without cable end || output screw clamp terminals 1 0.25-0.5 mm²flexible with cable end || output screw clamp terminals 1 0.25-1 mm²flexible with cable end || output screw clamp terminals 2 0.14-0.5 mm²rigid without cable end || output screw clamp terminals 2 0.14-0.75 mm²flexible without cable end || output screw clamp terminals 2 0.25-0.34 mm²flexible with cable end || output screw clamp terminals 2 0.5-0.5 mm²flexible with cable end
- Current Consumption
- 200 mA 24 V output || 25 mA normal operation || 30 mA fault operation
- Function Available
- AS-Interface communication module
- Local Signalling
- 2 LEDs front panel
- Mounting Location
- front side
- Mounting Mode
- plug-in
- Switching Current Capacity
- 500 mA 24 V against short-circuits solid state
- Tightening Torque
- input 0.5-0.6 N.m 3.5 mm || output 0.2-0.25 N.m 2.5 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
Offer Sustainability
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Application
- communication
- Device Short Name
- ASILUF
- Product Compatibility
- LUCA || LUCL || LUCD || LUCM || LUCC || LUCB
- Product Or Component Type
- communication module
- Range
- TeSys
- Range Compatibility
- TeSys (TeSys Ultra) LUB non reversing power base || TeSys (TeSys Ultra) LU2B reversing power base
